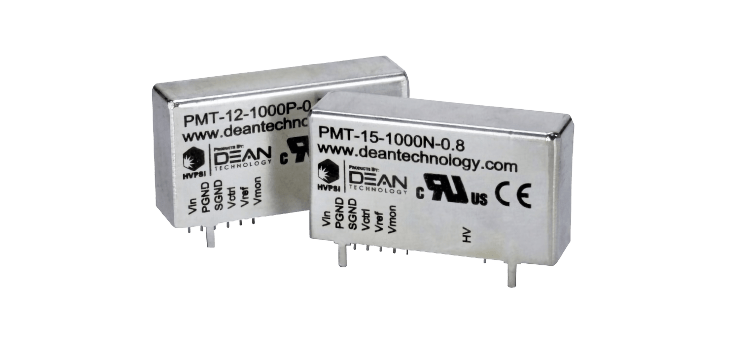

PMT Series - Microsize / High Voltage Power Supplies

Typical Applications

Electrostatic Air Cleaners
Photomultipliers
Detectors
Ion Beams
Piezoelectric Driver
UltraSonics

Products

Data Sheets

Technical Information

Products


Part Number	Max. Voltage (Vdc)	Input Voltage (Vdc)	Max. Power (W)	Current (mA)	Ripple (%V p-p)	Load Regulation (%)
PMT-12-600P-0.5	600	12	0.5	0.83	<0.005	<0.02
PMT-12-600N-0.5	600	12	0.5	0.83	<0.005	<0.02
PMT-12-1000P-0.5	1000	12	0.5	0.5	<0.005	<0.02
PMT-12-1000N-0.5	1000	12	0.5	0.5	<0.005	<0.02
PMT-12-1250P-0.5	1250	12	0.5	0.4	<0.005	<0.02
PMT-12-1250N-0.5	1250	12	0.5	0.4	<0.005	<0.02
PMT-12-1500P-0.5	1500	12	0.5	0.33	<0.005	<0.02
PMT-12-1500N-0.5	1500	12	0.5	0.33	<0.005	<0.02
PMT-15-600P-0.8	600	15	0.8	1.33	<0.005	<0.02
PMT-15-600N-0.8	600	15	0.8	1.33	<0.005	<0.02
PMT-15-1000P-0.8	1000	15	0.8	0.8	<0.005	<0.02
PMT-15-1000N-0.8	1000	15	0.8	0.8	<0.005	<0.02
PMT-15-1250P-0.8	1250	15	0.8	0.64	<0.005	<0.02
PMT-15-1250N-0.8	1250	15	0.8	0.64	<0.005	<0.02
PMT-15-1500P-0.8	1500	15	0.8	0.53	<0.005	<0.02
PMT-15-1500N-0.8	1500	15	0.8	0.53	<0.005	<0.02
PMT-24-600P-1	600	24	1	1.67	<0.005	<0.02
PMT-24-600N-1	600	24	1	1.67	<0.005	<0.02
PMT-24-1000P-1	1000	24	1	1	<0.005	<0.02
PMT-24-1000N-1	1000	24	1	1	<0.005	<0.02
PMT-24-1250P-1	1250	24	1	0.8	<0.005	<0.02
PMT-24-1250N-1	1250	24	1	0.8	<0.005	<0.02
PMT-24-1500P-1	1500	24	1	0.67	<0.005	<0.02
PMT-24-1500N-1	1500	24	1	0.67	<0.005	<0.02
