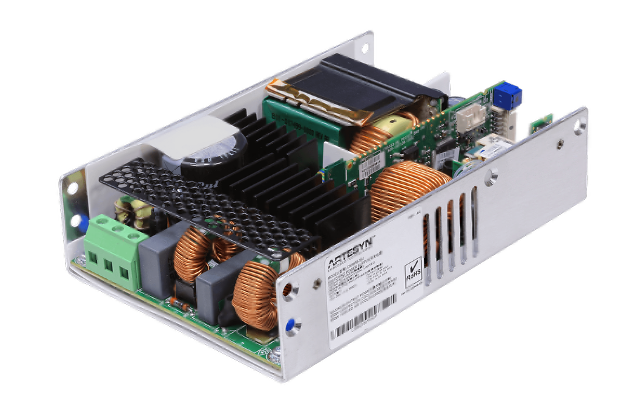

Open Frame, Low Power AC-DC Power Supplies
We are a market leader in low to medium power AC-DC power supplies. The company produces an extensive range of solutions under the Artesyn and SL Power brands. These products are renowned for their outstanding performance, reliability and cost-effectiveness.
Our range of low to medium power AC-DC power supplies extends from 10 watts to 800 watts, and offers an exceptionally wide variety of configuration options. Most of these power supplies are available with a choice of single or multiple isolated outputs with numerous different voltage combinations, and a considerable number also provide auxiliary outputs for powering fans and standby circuits.
All our low to medium power AC-DC power supplies are high efficiency switch-mode designs and feature a universal AC input, making them suitable for use almost anywhere in the world. A number of models above 60 watts offer harmonic current correction to meet the EN61000-3-2 standard. The portfolio provides for a choice of convection or fan-assisted cooling.
0 – 999 Watt Range
- Medical & ITE Safety Approvals
- Single and Multiple Outputs
- Class I and Class II input versions
0 - 50 Watt Range
| Series | Nominal Input Voltage Range (V) | Output Power (W) | Operational temperature range (°C) | Product Type | Datasheets |
 GB10 | 90 to 264 VAC | 12 | -25 to +70 | Open Frame Low Power PSUs |  |
 GB20 | 90 to 264 VAC | 20 | -25 to +70 | Open Frame Low Power PSUs | |
 GB30 | 90 to 264 VAC | 30 | -25 to +70 | Open Frame Low Power PSUs | |
 GB40 | 90 to 264 VAC | 40 | -25 to +70 | Open Frame Low Power PSUs | |
 NPS-20M | 90 to 264 VAC | 20 | -25 to +70 | Open Frame Low Power PSUs | |
 NPS-40M | 90 to 264 VAC | 30 | -25 to +70 | Open Frame Low Power PSUs | |
 NPT-20M | 90 to 264 VAC | 40 | -25 to +70 | Open Frame Low Power PSUs | |
51 - 100 Watt Range
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
 GB60 | 90 to 264 VAC | 60 | -10 to +70 | Single Output Industrial Grade | |
 LPS100-M | 90 to 264 VAC | 150 | 0 to +70 | AC-DC Medical Power Supplies | |
 LPS60 | 85 to 264 VAC | 80 | 0 to +70 | AC-DC Power Supplies | |
 LPT100-M | 90 to 264 VAC | 130 | 0 to +70 | AC-DC Medical Power Supplies | |
 MB60 | 90 to 264 VAC | 60 | -10 to +80 | Single Output Medical Grade | |
 MB65 | 90 to 264 VAC | 65 | -20 to +50 | Single Output Medical Grade | |
 MINT1065 | 90 to 264 VAC | 65 | 0 to +70 | Single Output Medical & Industrial Grade | |
 NPS60-M | 90 to 264 VAC | 60 | 0 to +80 | Industrial & Medical AC-DC Power Supplies | |
 SLB65 | 80 to 264 VAC | 65 | +20 to +70 | Single Output Medical & Industrial Grade | |
101 - 150 Watt Range
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
 CINT1150 | 90 to 264 VAC | 150 | -10 to +70 | Single Output Industrial Grade | |
 CINT3110 | 90 to 264 VAC | 110 | -10 to +70 | Triple Output Industrial Grade | |
 GB130Q | 90 to 264 VAC | 130 | -20 to +70 | Quad Output Medical and Industrial Grade | |
 LB115S | 90 to 264 VAC | 115 | -10 to +70 | Single Output LED Grade | |
 LB130S | 90 to 264 VAC | 130 | -20 to +70 | Single Output LED Grade | |
 MB120 | 80 to 264 VAC | 120 | -10 to +70 | Single Output Medical Grade | |
 MINT1110A | 90 to 264 VAC | 110 | 0 to +70 | Single Output Medical Grade | |
 MINT1150 | 90 to 264 VAC | 150 | -10 to +70 | Single Output Medical Grade | |
 MINT3110 | 80 to 264 VAC | 110 | -10 to +70 | Triple Output Medical Grade | |
 NCF150 | 100 to 240 VAC | 150 | -20 to +70 | Single Output Industrial Grade | |
 NGB150 | 85 to 264 VAC | 150 | -20 to +70 | Medical/Industrial | |
 SLB125 | 90 to 264 VAC | 125 | -20 to +70 | Single Output Medical & Industrial Grade | |
 TLP150 | 85 to 264 VAC | 150 | 0 to +70 | AC-DC Power Supplies | |
| TLP150 Med | 85 to 264 VAC | 150 | 0 to +70 | AC-DC Power Supplies | |
151 - 250 Watt Range
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
 CINT1175 | 90 to 264 VAC | 175 | -10 to +70 | Single Output Industrial Grade | |
 CINT1200 | 90 to 264 VAC | 200 | -10 to +70 | Single Output Industrial Grade | |
 CPS250-M | 90 to 264 VAC | 250 | -40 to +70 | Industrial & Medical AC-DC Power Supply | |
 LB240S | 90 to 264 VAC | 240 | -10 to +70 | Single Output LED Supply | |
 LPQ200-M | 90 to 264 VAC | 200 | 0 to +70 | Medical AC-DC Power Supplies | |
 LPS200-M | 90 to 264 VAC | 250 | 0 to +70 | Medical AC-DC Power Supplies | |
 LU225 | 90 to 264 VAC | 225 | -10 to +70 | Single Output LED & Industry Grade | |
 MINT1175 | 90 to 264 VAC | 175 | -10 to +70 | Single Output Medical Grade | |
 MINT1180 | 90 to 264 VAC | 180 | -10 to +70 | Single Output Medical Grade | |
 NCF250 | 100 to 240 VAC | 250 | 0 to +70 | AC-DC Power Supply | |
 NGB250 | 85 to 264 VAC | 250 | -20 to +80 | Single Output Medical and Industrial Grade | |
251 - 500 Watt Range
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
 CINT1275 | 90 to 264 VAC | 275 | -10 to +70 | Single Output Industrial Grade | |
 LGU350 | 85 to 305 VAC | 350 | +20 to +70 | Single Output LED Grade | |
 LPS360-M | 90 to 264 VAC | 360 | -40 to +70 | Medical AC-DC Power Supplies | |
 LU500 | 90 to 264 VAC | 500 | -10 to +70 | Single Output LED Grade | |
 MINT1275 | 90 to 264 VAC | 275 | -10 to +70 | Single Output Medical Grade | |
 MINT1500 | 90 to 264 VAC | 500 | -10 to +70 | Single Output Medical and Industrial Grade | |
 NCF425 | 100 to 240 VAC | 425 | 0 to +70 | Single Output LED & Industry Grade | |
 NGB425 | 85 to 264 VAC | 425 | -20 to +80 | Single Output Medical Grade | |
 SLB300 | 80 to 264 VAC | 300 | -10 to +70 | Single Output Medical & Industrial Grade | |
501 - 999 Watt Range
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
 CNS650-MU | 90 to 264 VAC | 650 | -25 to +70 | Open Frame AC-DC Power Supplies | |
 NCF660 | 100 to 240 VAC | 660 | 0 to +70 | Open Frame AC-DC Power Supplies | |
 NGB660 | 85 to 264 VAC | 660 | -20 to +80 | Single Output Medical & Industrial Grade | |
 NGB800 | 80 to 264 VAC | 800 | +20 to +70 | Single Output Medical & Industrial Grade | |
CF Rated Products
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
 NCF150 | 100 to 240 VAC | 150 | -20 to +70 | Open Frame, Low Power AC-DC Power Supplies | |
 NCF250 | 100 to 240 VAC | 250 | 0 to +70 | Open Frame, Low Power AC-DC Power Supplies | |
 NCF425 | 100 to 240 VAC | 425 | 0 to +70 | Open Frame, Low Power AC-DC Power Supplies | |
 NCF660 | 100 to 240 VAC | 660 | 0 to +70 | Open Frame, Low Power AC-DC Power Supplies | |
Linear Type PSUs
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
 Linear - AA | 100 to 240 VAC | 32 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - B | 100 to 240 VAC | 29 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - BAA | 100 to 240 VAC | 39 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - BB | 100 to 240 VAC | 45 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - C | 100 to 240 VAC | 58 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - CBB | 100 to 240 VAC | 75 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - CC | 100 to 240 VAC | 90 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - D | 100 to 240 VAC | 144 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - DBB | 100 to 240 VAC | 105 | 0 to +50 | Low Noise Linear Technology Power Supply | |
 Linear - DCC | 100 to 240 VAC | 150 | 0 to +50 | Low Noise Linear Technology Power Supply | |
| Linear - E | 100 to 240 VAC | 192 | 0 to +50 | Low Noise Linear Technology Power Supply | |
| Linear - F | 100 to 240 VAC | 288 | 0 to +50 | Low Noise Linear Technology Power Supply | |
| Linear - L | 100 to 240 VAC | 7 | 0 to +50 | Low Noise Linear Technology Power Supply | |
| Linear - N | 100 to 240 VAC | 86 | 0 to +50 | Low Noise Linear Technology Power Supply | |
