Configurable/Modular Industrial & Medical PSUs
We offer a wide range of medium to high power AC-DC power supplies, primarily composed of highly configurable modular power supplies and rack-mounted bulk power units. These include individual power modules with output ratings of 36W up to 12,000W, facilitating customers to configure bulk power systems with an output capability of up to 30 kW. Many of these products are available in medically approved versions and feature comprehensive built-in intelligence. They are recognized for their exceptional performance, reliability, and cost-effectiveness.

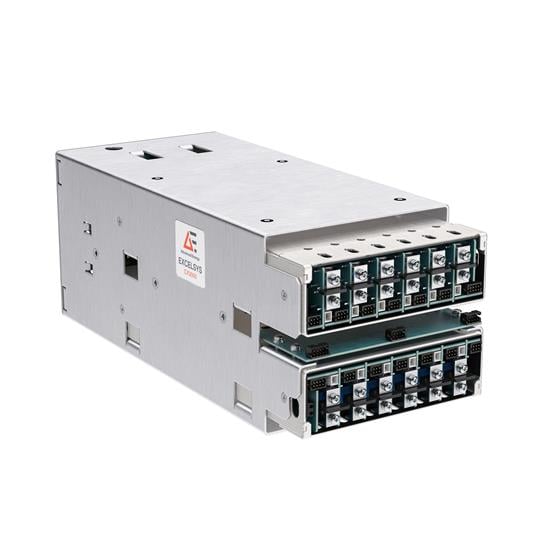

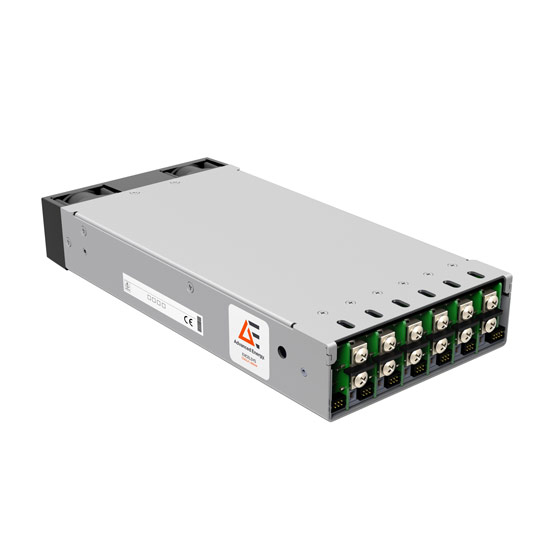

Cool X Series
• 600W to 3000W
• 13 output voltage modules; up to 24 separate outputs from 2.5 to 200V
• Single phase input
CoolX Series
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
| CoolX 600 | 85 to 264 VAC | 600 | -30 to +85 | Configurable/Modular PSUs |  |
| CoolX 1000 | 85 to 264 VAC | 1000 | -30 to +85 | Configurable/Modular PSUs | |
| CoolX 1800 | 85 to 264 VAC | 1800 | -40 to +70 | Configurable/Modular PSUs | |
| CoolX 3000 | 200 to 240 VAC | 3000 | -25 to +60 | Configurable/Modular PSUs | |

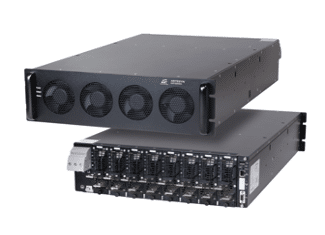

iHP Series
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
| iHP, Air Cooled | 180 to 660 VAC | 30000 | 0 to +50 | Configurable/Modular PSUs | |
| iHP, Liquid Cooled | 342 to 528 VAC | 20000 | 0 to +50 | Configurable/Modular PSUs | |
iMP Series
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
| iMP1 | 85 to 264 VAC | 1500 | -40 to +70 | Configurable/Modular PSUs | |
| iMP4 | 85 to 264 VAC | 1100 | -40 to +70 | Configurable/Modular PSUs | |
| iMP8 | 85 to 264 VAC | 1200 | -40 to +70 | Configurable/Modular PSUs | |
iVS1 Series
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
| iVS1 | 90 to 264 VAC | 3210 | -40 to +70 | Configurable/Modular PSUs | |
| iVS3 | 90 to 264 VAC | 4500 | -40 to +70 | Configurable/Modular PSUs | |
| iVS6 | 170 to 264 VAC | 3210 | -40 to +70 | Configurable/Modular PSUs | |
| iVS8 | 170 to 264 VAC | 4920 | -40 to +70 | Configurable/Modular PSUs | |
| iVS8H | 342 to 484 VAC | 4920 | -40 to +70 | Configurable/Modular PSUs | |
NeoPower Series
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
| NP05 | 90 to 264 VAC | 2400 | 0 to +70 | Configurable/Modular PSUs | |
| NP08 | 90 to 264 VAC | 4000 | 0 to +70 | Configurable/Modular PSUs | |
uMP / Xgen / XF Series
| Series | Nominal Input Voltage Range (V) | Output Power up to (W) | Operational temperature range (°C) | Product Type | Datasheets |
| XF | 85 to 264 VAC | 1000 | -55 to +70 | Configurable/Modular PSUs | |
| Xgen | 85 to 264 VAC | 1340 | -20 to +70 | Configurable/Modular PSUs | |
| uMP Gen II | 85 to 264 VAC | 1800 | -40 to +70 | Configurable/Modular PSUs | |
