AC Input Encapsulated & PCB Mount
We offer a variety of efficient power factor conversion (PFC) and AC-DC modules for diverse applications, enabling designers to quickly create tailored power supplies. Our portfolio includes the 500 W AIF-500 full-brick AC-DC modules, which accept 85 to 264 VAC input and convert to low-voltage DC. This is ideal for dense, contact-cooled solutions like remote-radio-heads, industrial, and transport power supplies. We also provide PFC modules, ranging from 75 W to 2400 W, capable of powering multiple high-voltage isolated DC-DC converters in applications such as transport and avionics.
Our power factor conversion (PFC) modules are designed to operate from an input of universal AC-mains voltage and feed one or more downstream high voltage isolated DC-DC converters, which provide the required low voltage. Our modular approach offers efficiency and cost effectiveness for low profile applications like transport and avionic systems.
AC-DC BMP Series
- Industry-standard 2.4 x 4.6 inch full-brick form factor with a height of only 0.55 inches
- 90 to 264 VAC input voltage with up to 528 W power rating
- Adjustable output voltage of 12 V or 48 V, nominal
AC-DC BMP
| Series | Nominal Input Voltage Range (V) | Output Power (W) | Operational temperature range (°C) | Product Type | Datasheets |

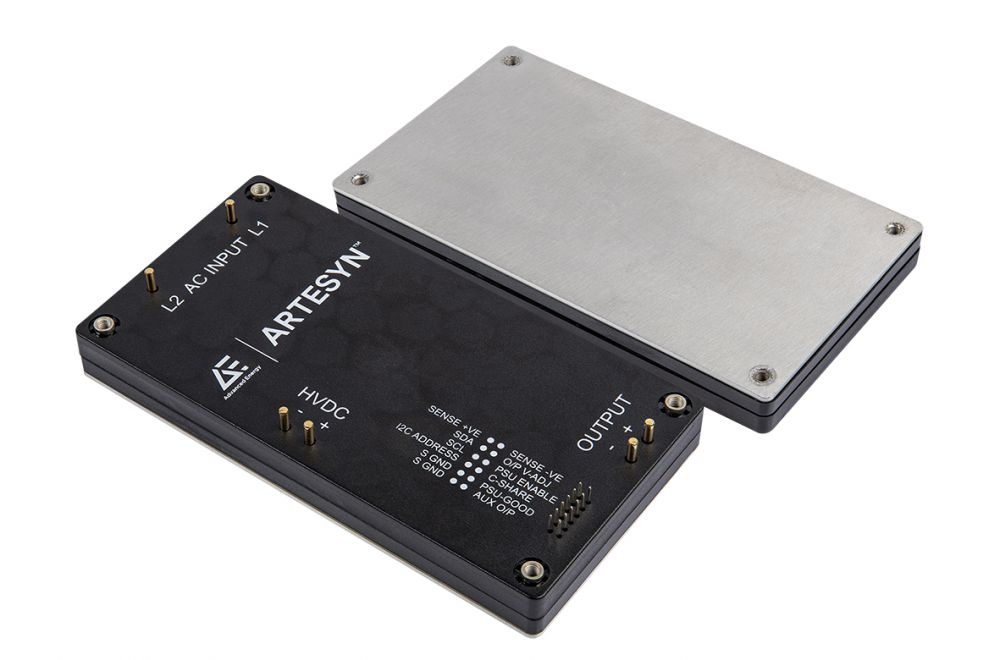

| AIF-500 | 86 to 264 VAC | 500 | -40 to +100 | AC-DC Full Brick |  |

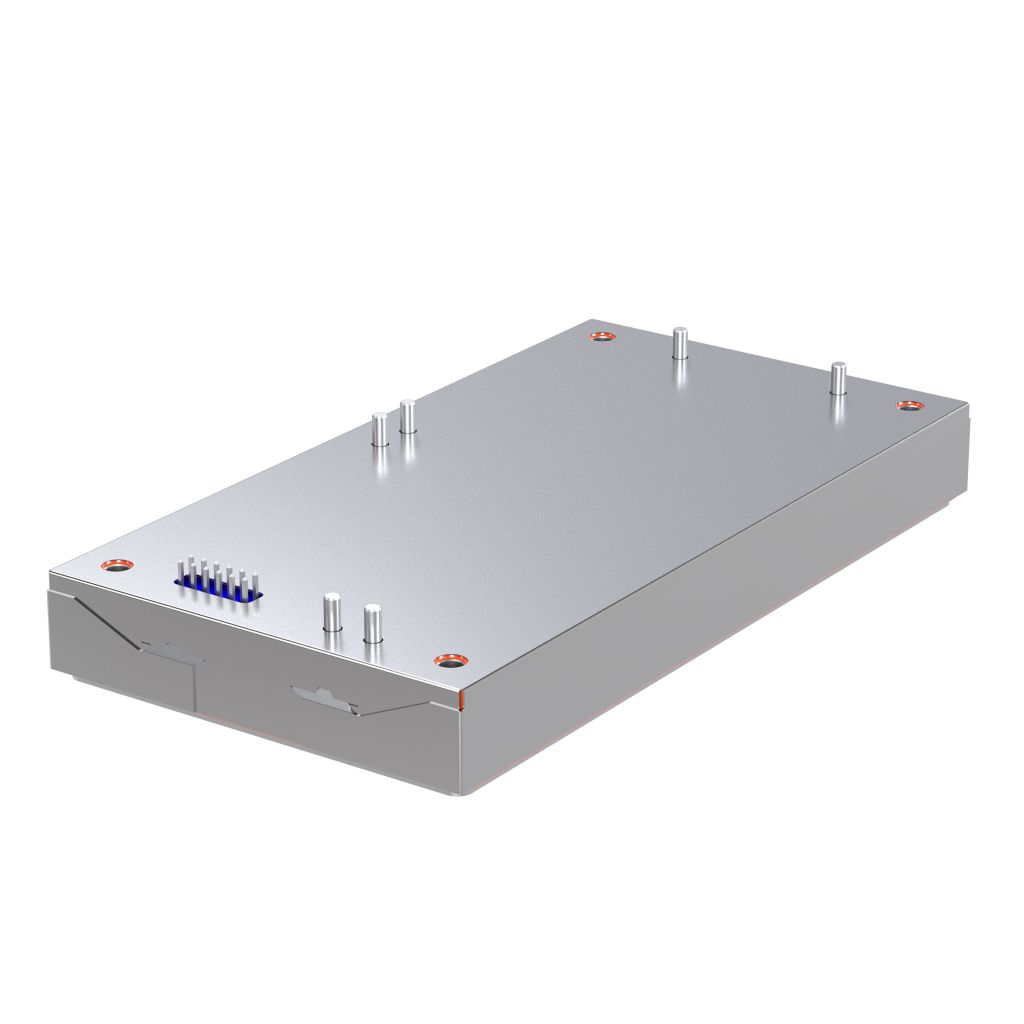

| AIF-500-Case-Kit | -40 to +100 | Metal Casing Kit for AIF PFC Units | |
PFC BMP
| Series | Nominal Input Voltage Range (V) | Output Power (W) | Operational temperature range (°C) | Product Type | Datasheets |
| AIF-CASE-KIT | 86 to 264 VAC | -40 to +100 | Metal Casing Kit for AIF PFC Units | | |
| AIF04ZPFC | 86 to 264 VAC | 1600 | -40 to +85 | Full Brick PFC Modules | |
| AIF06ZPFC | 86 to 264 VAC | 2400 | -40 to +100 | Full Brick PFC Converter | |
| AIQ00ZPFC | 100 to 122 VAC | 75 | -20 to +100 | Quarter Brick PFC Modules | |
| AIT02ZPFC | 85 to 264 VAC | 720 | -20 to +100 | Three Quarter Brick PFC Modules | |
