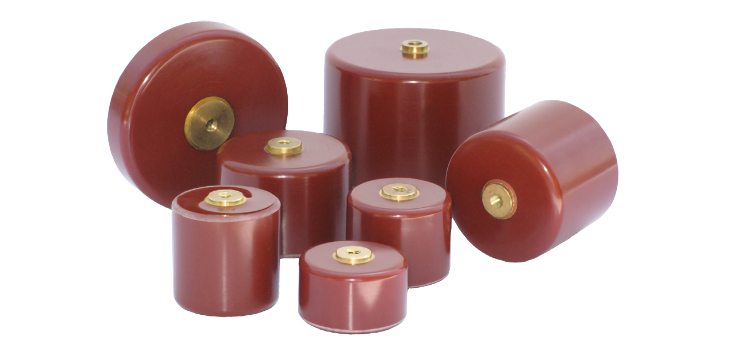

JX5/NX5 Series - High Voltage Doorknop Ceramic Capacitors
Features:
- Compact size with low dissipation factor
- Low voltage coefficient
- Epoxy encapsulated internal screw thread design
Products
Data Sheets
Products
JX5 Series
| Part # | Capacitance (pF) | Tolerance (%) | Material | Rated Voltage (V) | Dielectric Withstand (V) | Terminal |
| T3M/N4700 Class I | ||||||
| JX5T3M561K10KV | 560 | 10 | T3M / N4700 | 10000 | 15000 | M4x4 |
| JX5T3M122K10KV | 1200 | 10 | T3M / N4700 | 10000 | 15000 | M4x4 |
| JX5T3M282K10KV | 2800 | 10 | T3M / N4700 | 10000 | 15000 | M4x4 |
| JX5T3M502K10KV | 5000 | 10 | T3M / N4700 | 10000 | 15000 | M5x4 |
| JX5T3M802K10KV | 8000 | 10 | T3M / N4700 | 10000 | 15000 | M5x4 |
| JX5T3M371K15KV | 370 | 10 | T3M / N4700 | 15000 | 22500 | M4x4 |
| JX5T3M112K15KV | 1100 | 10 | T3M / N4700 | 15000 | 22500 | M4x4 |
| JX5T3M192K15KV | 1900 | 10 | T3M / N4700 | 15000 | 22500 | M4x4 |
| JX5T3M342K15KV | 3400 | 10 | T3M / N4700 | 15000 | 22500 | M5x4 |
| JX5T3M532K15KV | 5300 | 10 | T3M / N4700 | 15000 | 22500 | M5x4 |
| JX5T3M281K20KV | 280 | 10 | T3M / N4700 | 20000 | 30000 | M4x5 |
| JX5T3M881K20KV | 880 | 10 | T3M / N4700 | 20000 | 30000 | M4x5 |
| JX5T3M142K20KV | 1400 | 10 | T3M / N4700 | 20000 | 30000 | M4x5 |
| JX5T3M252K20KV | 2500 | 10 | T3M / N4700 | 20000 | 30000 | M5x5 |
| JX5T3M402K20KV | 4000 | 10 | T3M / N4700 | 20000 | 30000 | M5x5 |
| JX5T3M191K30KV | 190 | 10 | T3M / N4700 | 30000 | 45000 | M4x5 |
| JX5T3M591K30KV | 590 | 10 | T3M / N4700 | 30000 | 45000 | M4x5 |
| JX5T3M941K30KV | 940 | 10 | T3M / N4700 | 30000 | 45000 | M4x5 |
| JX5T3M172K30KV | 1700 | 10 | T3M / N4700 | 30000 | 45000 | M5x5 |
| JX5T3M272K30KV | 2700 | 10 | T3M / N4700 | 30000 | 45000 | M5x5 |
| JX5T3M141K40KV | 140 | 10 | T3M / N4700 | 40000 | 60000 | M4x6 |
| JX5T3M441K40KV | 440 | 10 | T3M / N4700 | 40000 | 60000 | M4x6 |
| JX5T3M701K40KV | 700 | 10 | T3M / N4700 | 40000 | 60000 | M4x6 |
| JX5T3M132K40KV | 1300 | 10 | T3M / N4700 | 40000 | 60000 | M5x6 |
| JX5T3M202K40KV | 2000 | 10 | T3M / N4700 | 40000 | 60000 | M5x6 |
| JX5T3M101K50KV | 100 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| JX5T3M201K50KV | 200 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| JX5T3M401K50KV | 400 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| JX5T3M561K50KV | 560 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| JX5T3M112K50KV | 1100 | 10 | T3M / N4700 | 50000 | 75000 | M5x6 |
| JX5T3M172K50KV | 1700 | 10 | T3M / N4700 | 50000 | 75000 | M5x6 |
| Y5P Class II | ||||||
| JX5Y5P251K15KV | 250 | 10 | Y5P | 15000 | 22500 | M4x4 |
| JX5Y5P501K15KV | 500 | 10 | Y5P | 15000 | 22500 | M4x4 |
| JX5Y5P102K15KV | 1000 | 10 | Y5P | 15000 | 22500 | M4x4 |
| JX5Y5P251K20KV | 250 | 10 | Y5P | 20000 | 30000 | M4x4 |
| JX5Y5P501K20KV | 500 | 10 | Y5P | 20000 | 30000 | M4x4 |
| JX5Y5P102K20KV | 1000 | 10 | Y5P | 20000 | 30000 | M4x4 |
| JX5Y5P251K30KV | 250 | 10 | Y5P | 30000 | 45000 | M4x4 |
| JX5Y5P501K30KV | 500 | 10 | Y5P | 30000 | 45000 | M4x4 |
| JX5Y5P251K40KV | 250 | 10 | Y5P | 40000 | 60000 | M4x4 |
| JX5Y5P501K40KV | 500 | 10 | Y5P | 40000 | 60000 | M4x4 |
| JX5Y5P251K50KV | 250 | 10 | Y5P | 50000 | 75000 | M4x5 |
| JX5Y5P501K50KV | 500 | 10 | Y5P | 50000 | 75000 | M5x5 |
NX5 Series
| Part # | Capacitance (pF) | Tolerance (%) | Material | Rated Voltage (V) | Dielectric Withstand (V) | Terminal |
| T3M/N4700 Class I | ||||||
| NX5T3M561K10KV | 560 | 10 | T3M / N4700 | 10000 | 15000 | M4x4 |
| NX5T3M122K10KV | 1200 | 10 | T3M / N4700 | 10000 | 15000 | M4x4 |
| NX5T3M282K10KV | 2800 | 10 | T3M / N4700 | 10000 | 15000 | M4x4 |
| NX5T3M502K10KV | 5000 | 10 | T3M / N4700 | 10000 | 15000 | M5x4 |
| NX5T3M802K10KV | 8000 | 10 | T3M / N4700 | 10000 | 15000 | M5x4 |
| NX5T3M371K15KV | 370 | 10 | T3M / N4700 | 15000 | 22500 | M4x4 |
| NX5T3M112K15KV | 1100 | 10 | T3M / N4700 | 15000 | 22500 | M4x4 |
| NX5T3M192K15KV | 1900 | 10 | T3M / N4700 | 15000 | 22500 | M4x4 |
| NX5T3M342K15KV | 3400 | 10 | T3M / N4700 | 15000 | 22500 | M5x4 |
| NX5T3M532K15KV | 5300 | 10 | T3M / N4700 | 15000 | 22500 | M5x4 |
| NX5T3M281K20KV | 280 | 10 | T3M / N4700 | 20000 | 30000 | M4x5 |
| NX5T3M881K20KV | 880 | 10 | T3M / N4700 | 20000 | 30000 | M4x5 |
| NX5T3M142K20KV | 1400 | 10 | T3M / N4700 | 20000 | 30000 | M4x5 |
| NX5T3M252K20KV | 2500 | 10 | T3M / N4700 | 20000 | 30000 | M5x5 |
| NX5T3M402K20KV | 4000 | 10 | T3M / N4700 | 20000 | 30000 | M5x5 |
| NX5T3M191K30KV | 190 | 10 | T3M / N4700 | 30000 | 45000 | M4x5 |
| NX5T3M591K30KV | 590 | 10 | T3M / N4700 | 30000 | 45000 | M4x5 |
| NX5T3M941K30KV | 940 | 10 | T3M / N4700 | 30000 | 45000 | M4x5 |
| NX5T3M172K30KV | 1700 | 10 | T3M / N4700 | 30000 | 45000 | M5x5 |
| NX5T3M272K30KV | 2700 | 10 | T3M / N4700 | 30000 | 45000 | M5x5 |
| NX5T3M141K40KV | 140 | 10 | T3M / N4700 | 40000 | 60000 | M4x6 |
| NX5T3M441K40KV | 440 | 10 | T3M / N4700 | 40000 | 60000 | M4x6 |
| NX5T3M701K40KV | 700 | 10 | T3M / N4700 | 40000 | 60000 | M4x6 |
| NX5T3M132K40KV | 1300 | 10 | T3M / N4700 | 40000 | 60000 | M5x6 |
| NX5T3M202K40KV | 2000 | 10 | T3M / N4700 | 40000 | 60000 | M5x6 |
| NX5T3M101K50KV | 100 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| NX5T3M201K50KV | 200 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| NX5T3M401K50KV | 400 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| NX5T3M561K50KV | 560 | 10 | T3M / N4700 | 50000 | 75000 | M4x6 |
| NX5T3M112K50KV | 1100 | 10 | T3M / N4700 | 50000 | 75000 | M5x6 |
| NX5T3M172K50KV | 1700 | 10 | T3M / N4700 | 50000 | 75000 | M5x6 |
| Y5P Class II | ||||||
| NX5Y5P251K15KV | 250 | 10 | Y5P | 15000 | 22500 | M4x4 |
| NX5Y5P501K15KV | 500 | 10 | Y5P | 15000 | 22500 | M4x4 |
| NX5Y5P102K15KV | 1000 | 10 | Y5P | 15000 | 22500 | M4x4 |
| NX5Y5P251K20KV | 250 | 10 | Y5P | 20000 | 30000 | M4x4 |
| NX5Y5P501K20KV | 500 | 10 | Y5P | 20000 | 30000 | M4x4 |
| NX5Y5P102K20KV | 1000 | 10 | Y5P | 20000 | 30000 | M4x4 |
| NX5Y5P251K30KV | 250 | 10 | Y5P | 30000 | 45000 | M4x4 |
| NX5Y5P501K30KV | 500 | 10 | Y5P | 30000 | 45000 | M4x4 |
| NX5Y5P251K40KV | 250 | 10 | Y5P | 40000 | 60000 | M4x4 |
| NX5Y5P501K40KV | 500 | 10 | Y5P | 40000 | 60000 | M4x4 |
| NX5Y5P251K50KV | 250 | 10 | Y5P | 50000 | 75000 | M4x5 |
| NX5Y5P501K50KV | 500 | 10 | Y5P | 50000 | 75000 | M5x5 |
