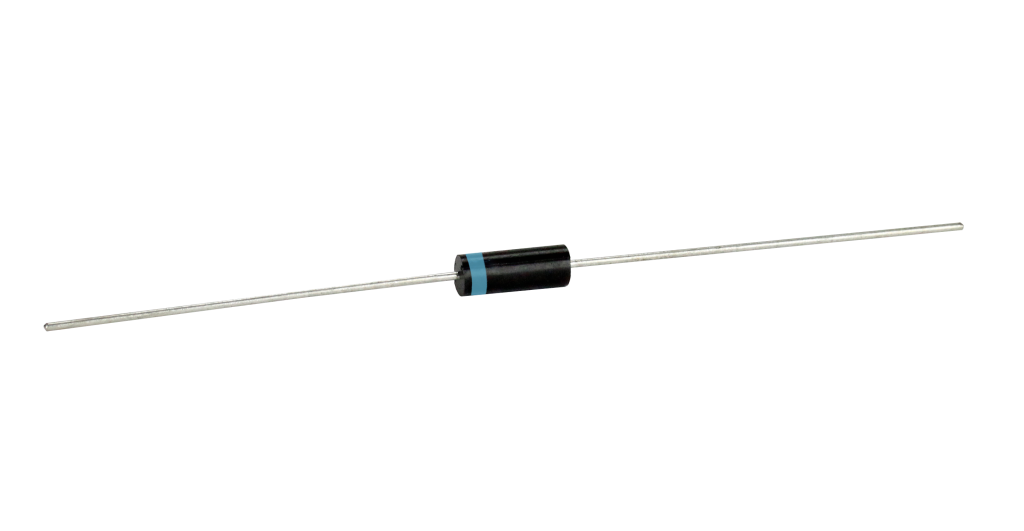

VDRM Series - High Voltage Diodes
The VDRM Series is an axial-leaded, high voltage diode line that offers industry standard performance and high reliability. These diodes are best suited for low to medium power, small form-factor applications. Further, VDRM diodes offer a miniature package size and are compliant to the RoHS directive
Features:
- Low Power
- Miniature Package
- Molded Plastic Body, ANSI/UL94 V-0 Rated Material
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| VDRM25 | 2500 | 125 | 12 | 200 |  |
| VDRM50 | 5000 | 100 | 10 | 200 | |
| VDRM100 | 10000 | 75 | 5 | 200 | |
| VDRM160 | 16000 | 50 | 4 | 200 | |
