SLU Series - Surface Mount High Voltage Diodes
Advanced diffusion and manufacturing techniques allow us to produce a wide range of Power Diodes. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:

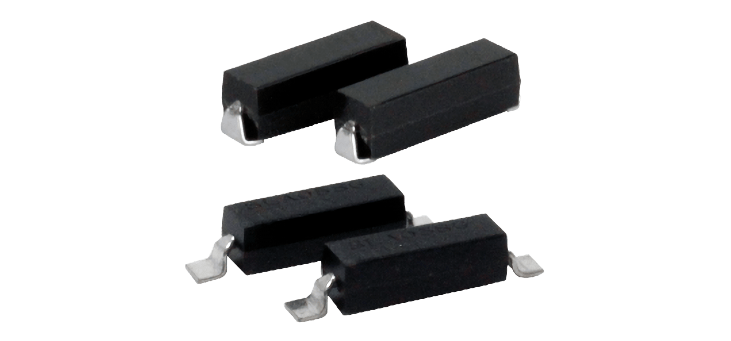

- Surface mount, J-leaded / Gull Wings package
- Available in cut tape and 1,000 piece reels
- UX-F15B design in longer surface mount
- Molded plastic body, ANSI/UL94 V-0 rated material
- RoHS compliant to Directive 2011/65/EC
with J-Lead
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| SLU08M | 8000 | 850 | 20 | 40 |  |
| SLU15M | 15000 | 450 | 20 | 50 | |
with Gull Wings
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| SLU08MG | 8000 | 850 | 20 | 40 | ref. J-Lead |
| SLU15MG | 15000 | 450 | 20 | 50 | ref. J-Lead |
