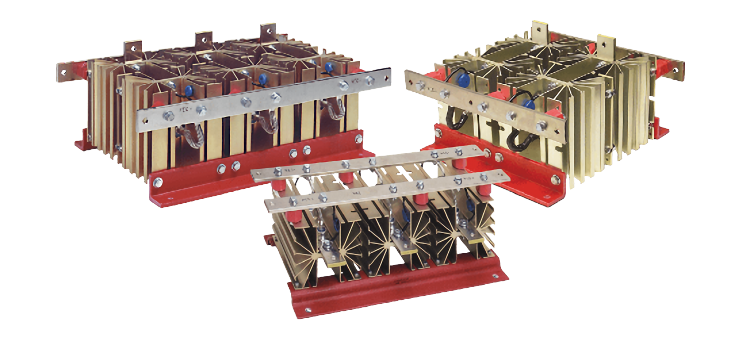

Single & Three Phase High Current Bridges
Advanced diffusion and manufacturing techniques allow us to produce a wide range of rectifier products. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- High output current rating
- Designed for 3-phase applications
Products
Data Sheets
Products
CB Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Avg. Forward Current (A) | Surge Current (A) | Forward Voltage Drop (V) | Applied Input (V) |
| CB70H2AA40 | 400 | 70 | 500 | 1.5 | 180 |
| CB70H2AA60 | 600 | 70 | 500 | 1.5 | 260 |
| CB70H2AA80 | 800 | 70 | 500 | 1.5 | 377 |
| CB70H2AA100 | 1000 | 70 | 500 | 1.5 | 440 |
| CB70H2AA120 | 1200 | 70 | 500 | 1.5 | 550 |
| CB100H2AA40 | 400 | 100 | 1200 | 1.5 | 180 |
| CB100H2AA60 | 600 | 100 | 1200 | 1.5 | 260 |
| CB100H2AA80 | 800 | 100 | 1200 | 1.5 | 377 |
| CB100H2AA100 | 1000 | 100 | 1200 | 1.5 | 440 |
| CB100H2AA120 | 1200 | 100 | 1200 | 1.5 | 550 |
| CB200K2AA40 | 400 | 200 | 3000 | 1.5 | 180 |
| CB200K2AA60 | 600 | 200 | 3000 | 1.5 | 260 |
| CB200K2AA80 | 800 | 200 | 3000 | 1.5 | 377 |
| CB200K2AA100 | 1000 | 200 | 3000 | 1.5 | 440 |
| CB200K2AA120 | 1200 | 200 | 3000 | 1.5 | 550 |
| CB250K4AA40 | 400 | 250 | 3600 | 1.5 | 180 |
| CB250K4AA60 | 600 | 250 | 3600 | 1.5 | 260 |
| CB250K4AA80 | 800 | 250 | 3600 | 1.5 | 377 |
| CB250K4AA100 | 1000 | 250 | 3600 | 1.5 | 440 |
| CB250K4AA120 | 1200 | 250 | 3600 | 1.5 | 550 |
| CB250K4AA160 | 1600 | 250 | 3600 | 1.5 | 600 |
| CB300K4AA40 | 400 | 300 | 6850 | 1.5 | 180 |
| CB300K4AA60 | 600 | 300 | 6850 | 1.5 | 260 |
| CB300K4AA80 | 800 | 300 | 6850 | 1.5 | 377 |
| CB300K4AA100 | 1000 | 300 | 6850 | 1.5 | 440 |
| CB300K4AA120 | 1200 | 300 | 6850 | 1.5 | 550 |
| CB300K4AA160 | 1600 | 300 | 6850 | 1.5 | 600 |
CT Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Avg. Forward Current (A) | Surge Current (A) | Forward Voltage Drop (V) | Applied Input (V) |
| CT50G2AA40 | 400 | 50 | 500 | 1.5 | 180 |
| CT50G2AA60 | 600 | 50 | 500 | 1.5 | 260 |
| CT50G2AA80 | 800 | 50 | 500 | 1.5 | 377 |
| CT50G2AA100 | 1000 | 50 | 500 | 1.5 | 440 |
| CT50G2AA120 | 1200 | 50 | 500 | 1.5 | 550 |
| CT150K3AA40 | 400 | 150 | 1200 | 1.5 | 180 |
| CT150K3AA60 | 600 | 150 | 1200 | 1.5 | 260 |
| CT150K3AA80 | 800 | 150 | 1200 | 1.5 | 377 |
| CT150K3AA100 | 1000 | 150 | 1200 | 1.5 | 440 |
| CT150K3AA120 | 1200 | 150 | 1200 | 1.5 | 550 |
| CT300K3AA40 | 400 | 300 | 3600 | 1.5 | 180 |
| CT300K3AA60 | 600 | 300 | 3600 | 1.5 | 260 |
| CT300K3AA80 | 800 | 300 | 3600 | 1.5 | 377 |
| CT300K3AA100 | 1000 | 300 | 3600 | 1.5 | 440 |
| CT300K3AA120 | 1200 | 300 | 3600 | 1.5 | 550 |
| CT300K3AA160 | 1600 | 300 | 3600 | 1.5 | 600 |
| CT400K6AA40 | 400 | 400 | 3600 | 1.5 | 180 |
| CT400K6AA60 | 600 | 400 | 3600 | 1.5 | 260 |
| CT400K6AA80 | 800 | 400 | 3600 | 1.5 | 377 |
| CT400K6AA100 | 1000 | 400 | 3600 | 1.5 | 440 |
| CT400K6AA120 | 1200 | 400 | 3600 | 1.5 | 550 |
| CT400K6AA160 | 1600 | 400 | 3600 | 1.5 | 600 |
| CT500K6AA40 | 400 | 500 | 6850 | 1.5 | 180 |
| CT500K6AA60 | 600 | 500 | 6850 | 1.5 | 260 |
| CT500K6AA80 | 800 | 500 | 6850 | 1.5 | 377 |
| CT500K6AA100 | 1000 | 500 | 6850 | 1.5 | 440 |
| CT500K6AA120 | 1200 | 500 | 6850 | 1.5 | 550 |
| CT500K6AA160 | 1600 | 500 | 6850 | 1.5 | 600 |
| CT700U6AA40 | 400 | 700 | 6850 | 1.5 | 180 |
| CT700U6AA60 | 600 | 700 | 6850 | 1.5 | 260 |
| CT700U6AA80 | 800 | 700 | 6850 | 1.5 | 377 |
| CT700U6AA100 | 1000 | 700 | 6850 | 1.5 | 440 |
| CT700U6AA120 | 1200 | 700 | 6850 | 1.5 | 550 |
| CT700U6AA160 | 1600 | 700 | 6850 | 1.5 | 600 |
| CT1000V6AA40 | 400 | 1000 | 10960 | 1.5 | 180 |
| CT1000V6AA60 | 600 | 1000 | 10960 | 1.5 | 260 |
| CT1000V6AA80 | 800 | 1000 | 10960 | 1.5 | 377 |
| CT1000V6AA100 | 1000 | 1000 | 10960 | 1.5 | 440 |
| CT1000V6AA120 | 1200 | 1000 | 10960 | 1.5 | 550 |
| CT1000V6AA160 | 1600 | 1000 | 10960 | 1.5 | 600 |
