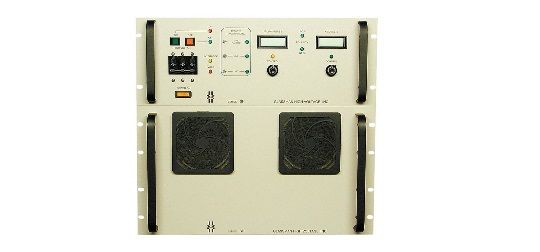

SH Series - High Voltage Power Supply

The SH family of power supplies are sophisticated, 8 kW through 40 kW, high voltage power supplies with low ripple and noise. They are air insulated fast response units with tight regulation and extremely low arc discharge currents.

Typical Applications

Particle Accelerators
Free Electron Lasers
Neutron Sources
Cyclotron Sources

Products

Data Sheets

Technical Information

Products

8 kW Models


Series	Max. Output Voltage	Max. Output Current	Max. Output Power	Input Voltage	Ripple better than
SH1R8.0	0 – 1 kV	8 A	8 kW	Three Phase	0.025%
SH1.5R5.3	0 – 1.5 kV	5.3 A	8 kW	Three Phase	0.025%
SH2R4.0	0 – 2 kV	4 A	8 kW	Three Phase	0.025%
SH3R2.7	0 – 3 kV	2.7 A	8 kW	Three Phase	0.025%
SH5R1.6	0 – 5 kV	1.6 A	8 kW	Three Phase	0.025%
SH6R1.3	0 – 6 kV	1.3 A	8 kW	Three Phase	0.025%
SH8X1.0	0 – 8 kV	1 A	8 kW	Three Phase	0.025%
SH8P1.0	0 – 8 kV	1 A	8 kW	Three Phase	0.025%
SH8N1.0	0 – 8 kV	1 A	8 kW	Three Phase	0.025%
SH8R1.0	0 – 8 kV	1 A	8 kW	Three Phase	0.025%

SH10X800	0 – 10 kV	800 mA	8 kW	Three Phase	0.025%
SH10P800	0 – 10 kV	800 mA	8 kW	Three Phase	0.025%
SH10N800	0 – 10 kV	800 mA	8 kW	Three Phase	0.025%
SH10R800	0 – 10 kV	800 mA	8 kW	Three Phase	0.025%

SH12X670	0 – 12 kV	670 mA	8 kW	Three Phase	0.025%
SH12P670	0 – 12 kV	670 mA	8 kW	Three Phase	0.025%
SH12N670	0 – 12 kV	670 mA	8 kW	Three Phase	0.025%
SH12R670	0 – 12 kV	670 mA	8 kW	Three Phase	0.025%

SH15X530	0 – 15 kV	530 mA	8 kW	Three Phase	0.025%
SH15P530	0 – 15 kV	530 mA	8 kW	Three Phase	0.025%
SH15N530	0 – 15 kV	530 mA	8 kW	Three Phase	0.025%
SH15R530	0 – 15 kV	530 mA	8 kW	Three Phase	0.025%

SH20X400	0 – 20 kV	400 mA	8 kW	Three Phase	0.025%
SH20P400	0 – 20 kV	400 mA	8 kW	Three Phase	0.025%
SH20N400	0 – 20 kV	400 mA	8 kW	Three Phase	0.025%
SH20R400	0 – 20 kV	400 mA	8 kW	Three Phase	0.025%

SH25X320	0 – 25 kV	320 mA	8 kW	Three Phase	0.025%
SH25P320	0 – 25 kV	320 mA	8 kW	Three Phase	0.025%
SH25N320	0 – 25 kV	320 mA	8 kW	Three Phase	0.025%
SH25R320	0 – 25 kV	320 mA	8 kW	Three Phase	0.025%

SH30X270	0 – 30 kV	270 mA	8 kW	Three Phase	0.025%
SH30P270	0 – 30 kV	270 mA	8 kW	Three Phase	0.025%
SH30N270	0 – 30 kV	270 mA	8 kW	Three Phase	0.025%
SH30R270	0 – 30 kV	270 mA	8 kW	Three Phase	0.025%

SH40X200	0 – 40 kV	200 mA	8 kW	Three Phase	0.025%
SH40P200	0 – 40 kV	200 mA	8 kW	Three Phase	0.025%
SH40N200	0 – 40 kV	200 mA	8 kW	Three Phase	0.025%
SH40R200	0 – 40 kV	200 mA	8 kW	Three Phase	0.025%

SH50X160	0 – 50 kV	160 mA	8 kW	Three Phase	0.025%
SH50P160	0 – 50 kV	160 mA	8 kW	Three Phase	0.025%
SH50N160	0 – 50 kV	160 mA	8 kW	Three Phase	0.025%
SH50R160	0 – 50 kV	160 mA	8 kW	Three Phase	0.025%

SH60X130	0 – 60 kV	130 mA	8 kW	Three Phase	0.025%
SH60P130	0 – 60 kV	130 mA	8 kW	Three Phase	0.025%
SH60N130	0 – 60 kV	130 mA	8 kW	Three Phase	0.025%
SH60R130	0 – 60 kV	130 mA	8 kW	Three Phase	0.025%

SH70X110	0 – 70 kV	110 mA	8 kW	Three Phase	0.025%
SH70P110	0 – 70 kV	110 mA	8 kW	Three Phase	0.025%
SH70N110	0 – 70 kV	110 mA	8 kW	Three Phase	0.025%
SH70R110	0 – 70 kV	110 mA	8 kW	Three Phase	0.025%

SH80X100	0 – 80 kV	100 mA	8 kW	Three Phase	0.025%
SH80P100	0 – 80 kV	100 mA	8 kW	Three Phase	0.025%
SH80N100	0 – 80 kV	100 mA	8 kW	Three Phase	0.025%
SH80R100	0 – 80 kV	100 mA	8 kW	Three Phase	0.025%

SH100X80	0 – 100 kV	80 mA	8 kW	Three Phase	0.025%
SH100P80	0 – 100 kV	80 mA	8 kW	Three Phase	0.025%
SH100N80	0 – 100 kV	80 mA	8 kW	Three Phase	0.025%
SH100R80	0 – 100 kV	80 mA	8 kW	Three Phase	0.025%

16kW Models


Series	Max. Output Voltage	Max. Output Current	Max. Output Power	Input Voltage	Ripple better than
SH1R16.0	0 – 1 kV	16A	16 kW	Three Phase	0.025%
SH1.5R10.6	0 – 1.5 kV	10.6 A	16 kW	Three Phase	0.025%
SH2R8.0	0 – 2 kV	8 A	16 kW	Three Phase	0.025%
SH3R5.4	0 – 3 kV	5.4 A	16 kW	Three Phase	0.025%
SH5R3.2	0 – 5 kV	3.2 A	16 kW	Three Phase	0.025%
SH6R2.6	0 – 6 kV	2.6 A	16 kW	Three Phase	0.025%
SH8X2.0	0 – 8 kV	2 A	16 kW	Three Phase	0.025%
SH8P2.0	0 – 8 kV	2 A	16 kW	Three Phase	0.025%
SH8N2.0	0 – 8 kV	2 A	16 kW	Three Phase	0.025%
SH8R2.0	0 – 8 kV	2 A	16 kW	Three Phase	0.025%

SH10X1.6	0 – 10 kV	1.6 A	16 kW	Three Phase	0.025%
SH10P1.6	0 – 10 kV	1.6 A	16 kW	Three Phase	0.025%
SH10N1.6	0 – 10 kV	1.6 A	16 kW	Three Phase	0.025%
SH10R1.6	0 – 10 kV	1.6 A	16 kW	Three Phase	0.025%

SH12X1.3	0 – 12 kV	1.3 A	16 kW	Three Phase	0.025%
SH12P1.3	0 – 12 kV	1.3 A	16 kW	Three Phase	0.025%
SH12N1.3	0 – 12 kV	1.3 A	16 kW	Three Phase	0.025%
SH12R1.3	0 – 12 kV	1.3 A	16 kW	Three Phase	0.025%

SH15X1.06	0 – 15 kV	1.06 A	16 kW	Three Phase	0.025%
SH15P1.06	0 – 15 kV	1.06 A	16 kW	Three Phase	0.025%
SH15N1.06	0 – 15 kV	1.06 A	16 kW	Three Phase	0.025%
SH15R1.06	0 – 15 kV	1.06 A	16 kW	Three Phase	0.025%
SH20X800	0 – 20 kV	800 mA	16 kW	Three Phase	0.025%
SH20P800	0 – 20 kV	800 mA	16 kW	Three Phase	0.025%
SH20N800	0 – 20 kV	800 mA	16 kW	Three Phase	0.025%
SH20R800	0 – 20 kV	800 mA	16 kW	Three Phase	0.025%

SH25X640	0 – 25 kV	640 mA	16 kW	Three Phase	0.025%
SH25P640	0 – 25 kV	640 mA	16 kW	Three Phase	0.025%
SH25N640	0 – 25 kV	640 mA	16 kW	Three Phase	0.025%
SH25R640	0 – 25 kV	640 mA	16 kW	Three Phase	0.025%

SH30X540	0 – 30 kV	540 mA	16 kW	Three Phase	0.025%
SH30P540	0 – 30 kV	540 mA	16 kW	Three Phase	0.025%
SH30N540	0 – 30 kV	540 mA	16 kW	Three Phase	0.025%
SH30R540	0 – 30 kV	540 mA	16 kW	Three Phase	0.025%

SH40X400	0 – 40 kV	400 mA	16 kW	Three Phase	0.025%
SH40P400	0 – 40 kV	400 mA	16 kW	Three Phase	0.025%
SH40N400	0 – 40 kV	400 mA	16 kW	Three Phase	0.025%
SH40R400	0 – 40 kV	400 mA	16 kW	Three Phase	0.025%

SH50X320	0 – 50 kV	320 mA	16 kW	Three Phase	0.025%
SH50P320	0 – 50 kV	320 mA	16 kW	Three Phase	0.025%
SH50N320	0 – 50 kV	320 mA	16 kW	Three Phase	0.025%
SH50R320	0 – 50 kV	320 mA	16 kW	Three Phase	0.025%

SH60X260	0 – 60 kV	260 mA	16 kW	Three Phase	0.025%
SH60P260	0 – 60 kV	260 mA	16 kW	Three Phase	0.025%
SH60N260	0 – 60 kV	260 mA	16 kW	Three Phase	0.025%
SH60R260	0 – 60 kV	260 mA	16 kW	Three Phase	0.025%

SH70X220	0 – 70 kV	220 mA	16 kW	Three Phase	0.025%
SH70P220	0 – 70 kV	220 mA	16 kW	Three Phase	0.025%
SH70N220	0 – 70 kV	220 mA	16 kW	Three Phase	0.025%
SH70R220	0 – 70 kV	220 mA	16 kW	Three Phase	0.025%

SH80X200	0 – 80 kV	200 mA	16 kW	Three Phase	0.025%
SH80P200	0 – 80 kV	200 mA	16 kW	Three Phase	0.025%
SH80N200	0 – 80 kV	200 mA	16 kW	Three Phase	0.025%
SH80R200	0 – 80 kV	200 mA	16 kW	Three Phase	0.025%

SH100X160	0 – 100 kV	160 mA	16 kW	Three Phase	0.025%
SH100P160	0 – 100 kV	160 mA	16 kW	Three Phase	0.025%
SH100N160	0 – 100 kV	160 mA	16 kW	Three Phase	0.025%
SH100R160	0 – 100 kV	160 mA	16 kW	Three Phase	0.025%
