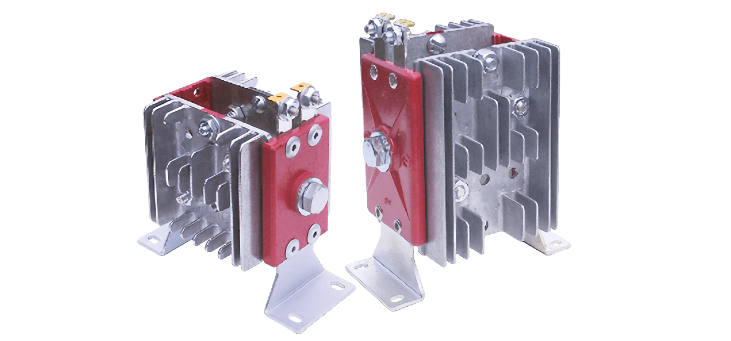

Rectipoint Silicon Power Rectifiers

Advanced diffusion and manufacturing techniques allow us to produce a wide range of rectifier products. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.

Features:

High output current rating
Designed for 3-phase applications

Products

Data Sheets

Products

XB1 Series


Part #	Repetitive Pk. Reverse Voltage (V)	Avg. Forward Current (A)	Forward Voltage Drop (V)	Reverse Current (µA)	Applied Input (V)
Single Phase
X2120B1B1	200	22	1.2	370	90
X2120B1N1	200	22	1.2	370	90
X3420B1B1	200	35	1.2	1050	90
X3420B1N1	200	35	1.2	1050	90
X3720B1B1	200	43	1.2	1500	90
X3720B1N1	200	43	1.2	1500	90
X2140B1B1	400	22	1.2	370	180
X2140B1N1	400	22	1.2	370	180
X3440B1B1	400	35	1.2	1050	180
X3440B1N1	400	35	1.2	1050	180
X3740B1B1	400	43	1.2	1500	180
X3740B1N1	400	43	1.2	1500	180
X2160B1B1	600	22	1.2	370	260
X2160B1N1	600	22	1.2	370	260
X3460B1B1	600	35	1.2	1050	260
X3460B1N1	600	35	1.2	1050	260
X3760B1B1	600	43	1.2	1500	260
X3760B1N1	600	43	1.2	1500	260
X2180B1B1	800	22	1.2	370	377
X2180B1N1	800	22	1.2	370	377
X3480B1B1	800	35	1.2	1050	377
X3480B1N1	800	35	1.2	1050	377
X3780B1B1	800	43	1.2	1500	377
X3780B1N1	800	43	1.2	1500	377
X21100B1B1	1000	22	1.2	370	440
X21100B1N1	1000	22	1.2	370	440
X34100B1B1	1000	35	1.2	1050	440
X34100B1N1	1000	35	1.2	1050	440
X37100B1B1	1000	43	1.2	1500	440
X37100B1N1	1000	43	1.2	1500	440
X21120B1B1	1200	22	1.2	370	500
X21120B1N1	1200	22	1.2	370	500
X34120B1B1	1200	35	1.2	1050	500
X34120B1N1	1200	35	1.2	1050	500
X37120B1B1	1200	43	1.2	1500	500
X37120B1N1	1200	43	1.2	1500	500
X21140B1B1	1400	22	1.2	370	575
X21140B1N1	1400	22	1.2	370	575
X34140B1B1	1400	35	1.2	1050	575
X34140B1N1	1400	35	1.2	1050	575
X37140B1B1	1400	43	1.2	1500	575
X37140B1N1	1400	43	1.2	1500	575
X21160B1B1	1600	22	1.2	370	600
X21160B1N1	1600	22	1.2	370	600
X34160B1B1	1600	35	1.2	1050	600
X34160B1N1	1600	35	1.2	1050	600
X37160B1B1	1600	43	1.2	1500	600
X37160B1N1	1600	43	1.2	1500	600

XZ1 Series


Part #	Repetitive Pk. Reverse Voltage (V)	Avg. Forward Current (A)	Forward Voltage Drop (V)	Reverse Current (µA)	Applied Input (V)
Three Phase
X2120Z1B1	200	26	1.2	370	90
X2120Z1N1	200	26	1.2	370	90
X3420Z1B1	200	55	1.2	1050	90
X3420Z1N1	200	55	1.2	1050	90
X3720Z1B1	200	65	1.2	1500	90
X3720Z1N1	200	65	1.2	1500	90
X2140Z1B1	400	26	1.2	370	180
X2140Z1N1	400	26	1.2	370	180
X3440Z1B1	400	55	1.2	1050	180
X3440Z1N1	400	55	1.2	1050	180
X3740Z1B1	400	65	1.2	1500	180
X3740Z1N1	400	65	1.2	1500	180
X2160Z1B1	600	26	1.2	370	260
X2160Z1N1	600	26	1.2	370	260
X3460Z1B1	600	55	1.2	1050	260
X3460Z1N1	600	55	1.2	1050	260
X3760Z1B1	600	65	1.2	1500	260
X3760Z1N1	600	65	1.2	1500	260
X2180Z1B1	800	26	1.2	370	377
X2180Z1N1	800	26	1.2	370	377
X3480Z1B1	800	55	1.2	1050	377
X3480Z1N1	800	55	1.2	1050	377
X3780Z1B1	800	65	1.2	1500	377
X3780Z1N1	800	65	1.2	1500	377
X21100Z1B1	1000	26	1.2	370	440
X21100Z1N1	1000	26	1.2	370	440
X34100Z1B1	1000	55	1.2	1050	440
X34100Z1N1	1000	55	1.2	1050	440
X37100Z1B1	1000	65	1.2	1500	440
X37100Z1N1	1000	65	1.2	1500	440
X21120Z1B1	1200	26	1.2	370	500
X21120Z1N1	1200	26	1.2	370	500
X34120Z1B1	1200	55	1.2	1050	500
X34120Z1N1	1200	55	1.2	1050	500
X37120Z1B1	1200	65	1.2	1500	500
X37120Z1N1	1200	65	1.2	1500	500
X21140Z1B1	1400	26	1.2	370	575
X21140Z1N1	1400	26	1.2	370	575
X34140Z1B1	1400	55	1.2	1050	575
X34140Z1N1	1400	55	1.2	1050	575
X37140Z1B1	1400	65	1.2	1500	575
X37140Z1N1	1400	65	1.2	1500	575
X21160Z1B1	1600	26	1.2	370	600
X21160Z1N1	1600	26	1.2	370	600
X34160Z1B1	1600	55	1.2	1050	600
X34160Z1N1	1600	55	1.2	1050	600
X37160Z1B1	1600	65	1.2	1500	600
X37160Z1N1	1600	65	1.2	1500	600

YB1 Series


Part #	Repetitive Pk. Reverse Voltage (V)	Avg. Forward Current (A)	Forward Voltage Drop (V)	Reverse Current (µA)	Applied Input (V)
Single Phase
Y2120B1B1	200	14	1.2	370	90
Y2120B1N1	200	14	1.2	370	90
Y2140B1B1	400	14	1.2	370	180
Y2140B1N1	400	14	1.2	370	180
Y2160B1B1	600	14	1.2	370	260
Y2160B1N1	600	14	1.2	370	260
Y2180B1B1	800	14	1.2	370	377
Y2180B1N1	800	14	1.2	370	377
Y21100B1B1	1000	14	1.2	370	440
Y21100B1N1	1000	14	1.2	370	440
Y21120B1B1	1200	14	1.2	370	500
Y21120B1N1	1200	14	1.2	370	500
Y21140B1B1	1400	14	1.2	370	575
Y21140B1N1	1400	14	1.2	370	575
Y21160B1B1	1600	14	1.2	370	600
Y21160B1N1	1600	14	1.2	370	600

YZ1 Series


Part #	Repetitive Pk. Reverse Voltage (V)	Avg. Forward Current (A)	Forward Voltage Drop (V)	Reverse Current (µA)	Applied Input (V)
Three Phase
Y2120Z1B1	200	22	1.2	370	90
Y2120Z1N1	200	22	1.2	370	90
Y2140Z1B1	400	22	1.2	370	180
Y2140Z1N1	400	22	1.2	370	180
Y2160Z1B1	600	22	1.2	370	260
Y2160Z1N1	600	22	1.2	370	260
Y2180Z1B1	800	22	1.2	370	377
Y2180Z1N1	800	22	1.2	370	377
Y21100Z1B1	1000	22	1.2	370	440
Y21100Z1N1	1000	22	1.2	370	440
Y21120Z1B1	1200	22	1.2	370	500
Y21120Z1N1	1200	22	1.2	370	500
Y21140Z1B1	1400	22	1.2	370	575
Y21140Z1N1	1400	22	1.2	370	575
Y21160Z1B1	1600	22	1.2	370	600
Y21160Z1N1	1600	22	1.2	370	600
