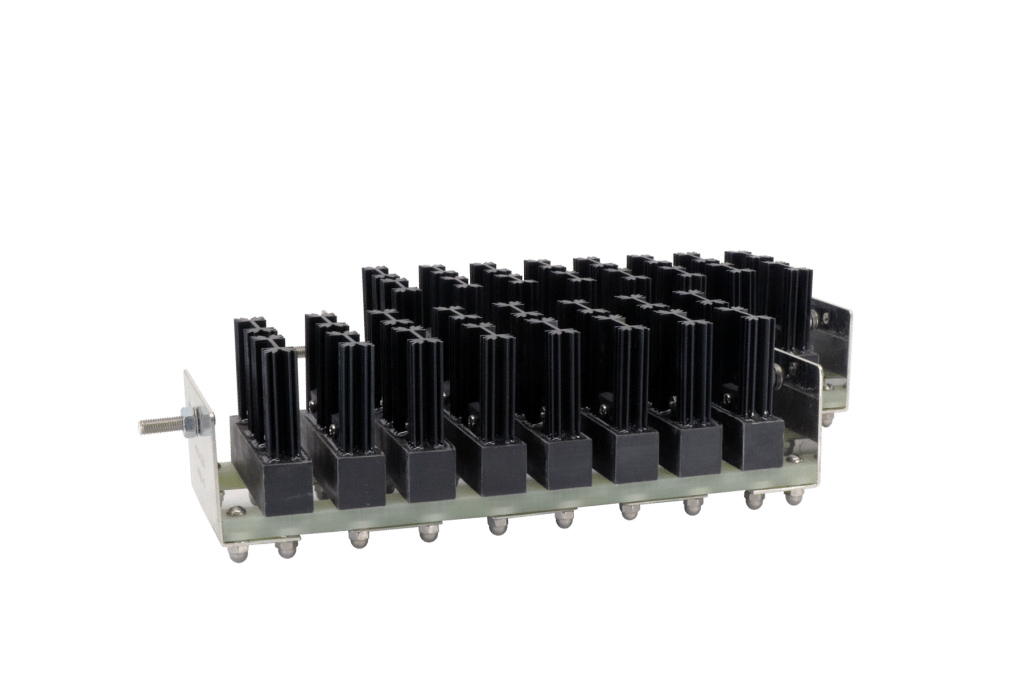

Power Rectifier Assemblies
Capacitor Compensated
- Fast Recovery Models Available
- Replacement for Phillips Amperex RS3.5, RS5, RS10, OSB-, OSM-, OSS, 9115, 9215, 9415
Products
Data Sheets
Products
HRS10 Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (A) | Surge Current (A) | Rev. Recovery Time (nS) |
| HRS10-6 | 9600 | 25 | 6 | 950 | – |
| HRS10-9 | 16000 | 25 | 10 | 950 | – |
| HRS10-12 | 19200 | 25 | 12 | 950 | – |
| HRS10-15 | 25600 | 25 | 16 | 950 | – |
| HRS10-18 | 28800 | 25 | 18 | 950 | – |
| HRS10-21 | 32000 | 25 | 20 | 950 | – |
| HRS10-24 | 38400 | 25 | 24 | 950 | – |
| HRS10-27 | 41600 | 25 | 26 | 950 | – |
| HRS10-30 | 48000 | 25 | 30 | 950 | – |
HRS5 Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (A) | Surge Current (A) | Rev. Recovery Time (nS) |
| HRS5-6 | 9600 | 15 | 6 | 400 | – |
| HRS5-9 | 16000 | 15 | 10 | 400 | – |
| HRS5-12 | 19200 | 15 | 12 | 400 | – |
| HRS5-15 | 25600 | 15 | 16 | 400 | – |
| HRS5-18 | 28800 | 15 | 18 | 400 | – |
| HRS5-21 | 32000 | 15 | 20 | 400 | – |
| HRS5-24 | 38400 | 15 | 24 | 400 | – |
| HRS5-27 | 41600 | 15 | 26 | 400 | – |
| HRS5-30 | 48000 | 15 | 30 | 400 | – |
