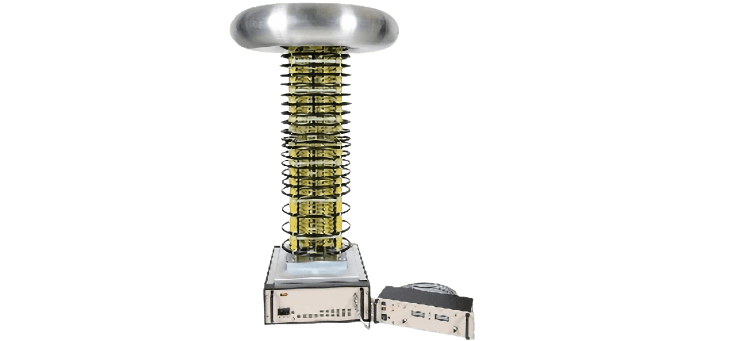

OQ Open Stack Series - High Voltage Power Supply

The OQ open stack family are sophisticated 8 kW power supplies with extremely low ripple and noise. They are air insulated fast response units with tight regulation.

Typical Applications

Electron-beam Evaporation
Cable Tester
Ion Beam Deposition
X-ray Fluorescence

Products

Data Sheets

Technical Information

Products

8 kW Models


Series	Max. Output Voltage	Max. Output Current	Max. Output Power	Input Voltage	Line Freq. Ripple (P-P)
OQ200X40	0 – 200 kV	40 mA	8 kW	Three Phase	20 V
OQ200P40	0 – 200 kV	40 mA	8 kW	Three Phase	20 V
OQ200N40	0 – 200 kV	40 mA	8 kW	Three Phase	20 V
OQ200R40	0 – 200 kV	40 mA	8 kW	Three Phase	20 V

OQ250X32	0 – 250 kV	32 mA	8 kW	Three Phase	20 V
OQ250P32	0 – 250 kV	32 mA	8 kW	Three Phase	20 V
OQ250N32	0 – 250 kV	32 mA	8 kW	Three Phase	20 V
OQ250R32	0 – 250 kV	32 mA	8 kW	Three Phase	20 V

OQ300X25	0 – 300 kV	25 mA	8 kW	Three Phase	20 V
OQ300P25	0 – 300 kV	25 mA	8 kW	Three Phase	20 V
OQ300N25	0 – 300 kV	25 mA	8 kW	Three Phase	20 V
OQ300R25	0 – 300 kV	25 mA	8 kW	Three Phase	20 V

OQ350X18	0 – 350 kV	18 mA	8 kW	Three Phase	20 V
OQ350P18	0 – 350 kV	18 mA	8 kW	Three Phase	20 V
OQ350N18	0 – 350 kV	18 mA	8 kW	Three Phase	20 V
OQ350R18	0 – 350 kV	18 mA	8 kW	Three Phase	20 V

OQ400X14	0 – 400 kV	14 mA	8 kW	Three Phase	20 V
OQ400P14	0 – 400 kV	14 mA	8 kW	Three Phase	20 V
OQ400N14	0 – 400 kV	14 mA	8 kW	Three Phase	20 V
OQ400R14	0 – 400 kV	14 mA	8 kW	Three Phase	20 V

OQ450X12	0 – 450 kV	12 mA	8 kW	Three Phase	20 V
OQ450P12	0 – 450 kV	12 mA	8 kW	Three Phase	20 V
OQ450N12	0 – 450 kV	12 mA	8 kW	Three Phase	20 V
OQ450R12	0 – 450 kV	12 mA	8 kW	Three Phase	20 V

OQ500X10	0 – 500 kV	10 mA	8 kW	Three Phase	20 V
OQ500P10	0 – 500 kV	10 mA	8 kW	Three Phase	20 V
OQ500N10	0 – 500 kV	10 mA	8 kW	Three Phase	20 V
OQ500R10	0 – 500 kV	10 mA	8 kW	Three Phase	20 V

16kW Models


Series	Max. Output Voltage	Max. Output Current	Max. Output Power	Input Voltage	Line Freq. Ripple (P-P)
OQ200X80	0 – 200 kV	80 mA	16 kW	Three Phase	20 V
OQ200P80	0 – 200 kV	80 mA	16 kW	Three Phase	20 V
OQ200N80	0 – 200 kV	80 mA	16 kW	Three Phase	20 V
OQ200R80	0 – 200 kV	80 mA	16 kW	Three Phase	20 V

OQ250X64	0 – 250 kV	64 mA	16 kW	Three Phase	20 V
OQ250P64	0 – 250 kV	64 mA	16 kW	Three Phase	20 V
OQ250N64	0 – 250 kV	64 mA	16 kW	Three Phase	20 V
OQ250R64	0 – 250 kV	64 mA	16 kW	Three Phase	20 V

OQ300X50	0 – 300 kV	50 mA	16 kW	Three Phase	20 V
OQ300P50	0 – 300 kV	50 mA	16 kW	Three Phase	20 V
OQ300N50	0 – 300 kV	50 mA	16 kW	Three Phase	20 V
OQ300R50	0 – 300 kV	50 mA	16 kW	Three Phase	20 V

OQ350X36	0 – 350 kV	36 mA	16 kW	Three Phase	20 V
OQ350P36	0 – 350 kV	36 mA	16 kW	Three Phase	20 V
OQ350N36	0 – 350 kV	36 mA	16 kW	Three Phase	20 V
OQ350R36	0 – 350 kV	36 mA	16 kW	Three Phase	20 V

OQ400X28	0 – 400 kV	28 mA	16 kW	Three Phase	20 V
OQ400P28	0 – 400 kV	28 mA	16 kW	Three Phase	20 V
OQ400N28	0 – 400 kV	28 mA	16 kW	Three Phase	20 V
OQ400R28	0 – 400 kV	28 mA	16 kW	Three Phase	20 V

OQ450X24	0 – 450 kV	24 mA	16 kW	Three Phase	20 V
OQ450P24	0 – 450 kV	24 mA	16 kW	Three Phase	20 V
OQ450N24	0 – 450 kV	24 mA	16 kW	Three Phase	20 V
OQ450R24	0 – 450 kV	24 mA	16 kW	Three Phase	20 V

OQ500X20	0 – 500 kV	20 mA	16 kW	Three Phase	20 V
OQ500P20	0 – 500 kV	20 mA	16 kW	Three Phase	20 V
OQ500N20	0 – 500 kV	20 mA	16 kW	Three Phase	20 V
OQ500R20	0 – 500 kV	20 mA	16 kW	Three Phase	20 V
