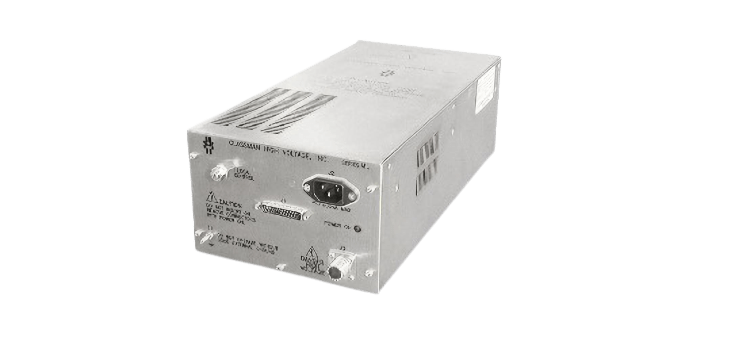

ML Series - High Voltage Power Supply
The ML Series of 300 watt high voltage supplies are air insulated, fast response units, with tight regulation and extremely low arc discharge currents.
Typical Applications
- Semiconductor
- E-Beam Welding
- Ion Sources
- E-Beam Lithography
| Series | Max. Output Voltage | Max. Output Current | Max. Output Power | Input Voltage | Ripple |
| ML08X37.0 | 0 – 8 kV | 37 mA | 300 W | Single Phase | <0.05% |
| ML08P37.0 | 0 – 8 kV | 37 mA | 300 W | Single Phase | <0.05% |
| ML08N37.0 | 0 – 8 kV | 37 mA | 300 W | Single Phase | <0.05% |
| ML10X30.0 | 0 – 10 kV | 30 mA | 300 W | Single Phase | <0.05% |
| ML10P30.0 | 0 – 10 kV | 30 mA | 300 W | Single Phase | <0.05% |
| ML10N30.0 | 0 – 10 kV | 30 mA | 300 W | Single Phase | <0.05% |
| ML12X25.0 | 0 – 12 kV | 25 mA | 300 W | Single Phase | <0.05% |
| ML12P25.0 | 0 – 12 kV | 25 mA | 300 W | Single Phase | <0.05% |
| ML12N25.0 | 0 – 12 kV | 25 mA | 300 W | Single Phase | <0.05% |
| ML15X20.0 | 0 – 15 kV | 20 mA | 300 W | Single Phase | <0.05% |
| ML15P20.0 | 0 – 15 kV | 20 mA | 300 W | Single Phase | <0.05% |
| ML15N20.0 | 0 – 15 kV | 20 mA | 300 W | Single Phase | <0.05% |
| ML20X15.0 | 0 – 20 kV | 15 mA | 300 W | Single Phase | <0.05% |
| ML20P15.0 | 0 – 20 kV | 15 mA | 300 W | Single Phase | <0.05% |
| ML20N15.0 | 0 – 20 kV | 15 mA | 300 W | Single Phase | <0.05% |
| ML25X12.0 | 0 – 25 kV | 12 mA | 300 W | Single Phase | <0.05% |
| ML25P12.0 | 0 – 25 kV | 12 mA | 300 W | Single Phase | <0.05% |
| ML25N12.0 | 0 – 25 kV | 12 mA | 300 W | Single Phase | <0.05% |
| ML30X10.0 | 0 – 30 kV | 10 mA | 300 W | Single Phase | <0.05% |
| ML30P10.0 | 0 – 30 kV | 10 mA | 300 W | Single Phase | <0.05% |
| ML30N10.0 | 0 – 30 kV | 10 mA | 300 W | Single Phase | <0.05% |
| ML40X07.5 | 0 – 40 kV | 7.5 mA | 300 W | Single Phase | <0.05% |
| ML40P07.5 | 0 – 40 kV | 7.5 mA | 300 W | Single Phase | <0.05% |
| ML40N07.5 | 0 – 40 kV | 7.5 mA | 300 W | Single Phase | <0.05% |
| ML50X06.0 | 0 – 50 kV | 6 mA | 300 W | Single Phase | <0.05% |
| ML50P06.0 | 0 – 50 kV | 6 mA | 300 W | Single Phase | <0.05% |
| ML50N06.0 | 0 – 50 kV | 6 mA | 300 W | Single Phase | <0.05% |
| ML60X05.0 | 0 – 60 kV | 5 mA | 300 W | Single Phase | <0.05% |
| ML60P05.0 | 0 – 60 kV | 5 mA | 300 W | Single Phase | <0.05% |
| ML60N05.0 | 0 – 60 kV | 5 mA | 300 W | Single Phase | <0.05% |
ML Series Input Voltage Output Voltage Output Power | Polarity Operating Ambient Temperature Ripple less than 0.05% of rated voltage at full load | Programming Standards |
