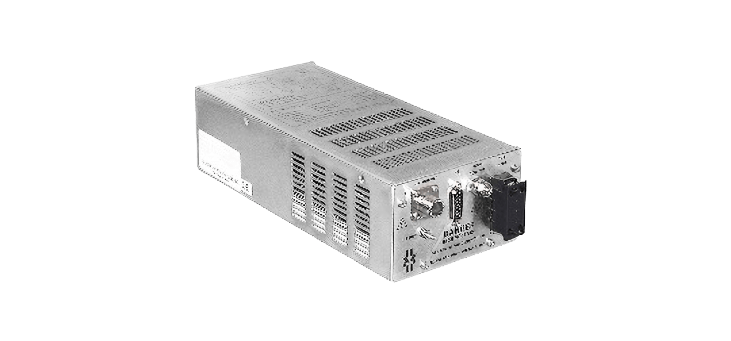

MJ Series - High Voltage Power Supply

The MJ Series of 15 watt high voltage supplies are air insulated, fast response units, with tight regulation and low arc discharge currents.

Typical Applications

Ion Implantation
Vapor Deposition
E-Beam Lithography

Products

Data Sheets

Technical Information

Products


Series	Max. Output Voltage	Max. Output Current	Max. Output Power	Input Voltage	Ripple
MJ3X5000	0 – 3kV	5 mA	15 W	Single Phase	<0.05%
MJ3P5000	0 – 3kV	5 mA	15 W	Single Phase	<0.05%
MJ3N5000	0 – 3kV	5 mA	15 W	Single Phase	<0.05%

MJ5X3000	0 – 5kV	3 mA	15 W	Single Phase	<0.05%
MJ5P3000	0 – 5kV	3 mA	15 W	Single Phase	<0.05%
MJ5N3000	0 – 5kV	3 mA	15 W	Single Phase	<0.05%

MJ10X1500	0 – 10kV	1.5 mA	15 W	Single Phase	<0.05%
MJ10P1500	0 – 10kV	1.5 mA	15 W	Single Phase	<0.05%
MJ10N1500	0 – 10kV	1.5 mA	15 W	Single Phase	<0.05%

MJ15X1000	0 – 15kV	1 mA	15 W	Single Phase	<0.05%
MJ15P1000	0 – 15kV	1 mA	15 W	Single Phase	<0.05%
MJ15N1000	0 – 15kV	1 mA	15 W	Single Phase	<0.05%

MJ20X700	0 – 20kV	0.7 mA	15 W	Single Phase	<0.05%
MJ20P700	0 – 20kV	0.7 mA	15 W	Single Phase	<0.05%
MJ20N700	0 – 20kV	0.7 mA	15 W	Single Phase	<0.05%

MJ30X400	0 – 30kV	0.4 mA	15 W	Single Phase	<0.05%
MJ30P400	0 – 30kV	0.4 mA	15 W	Single Phase	<0.05%
MJ30N400	0 – 30kV	0.4 mA	15 W	Single Phase	<0.05%
