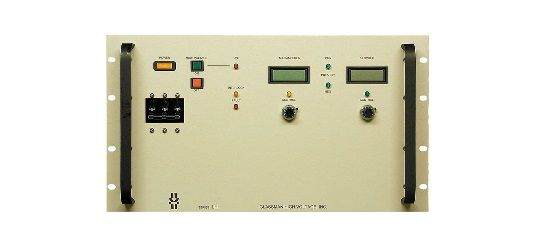

LH Series - High Voltage Power Supply

The LH family of power supplies are sophisticated, 5 kW, high voltage power supplies with low ripple and noise. They are air insulated, fast response units, with tight regulation.

Typical Applications

FDG producing Cyclotrons
Gamma Cameras
Radiation Therapy Systems
PET Scanners

Products

Data Sheets

Technical Information

Products


Series	Max. Output Voltage	Max. Output Current	Max. Output Power	Input Voltage	Ripple better than
LH1R5.0	0 – 1 kV	5 A	5 kW	Three Phase	0.05%
LH1.5R3.3	0 – 1.5 kV	3.3 A	5 kW	Three Phase	0.05%
LH2R2.5	0 – 2 kV	2.5 A	5 kW	Three Phase	0.05%
LH3R1.7	0 – 3 kV	1.7 A	5 kW	Three Phase	0.05%
LH5R1.0	0 – 5 kV	1 A	5 kW	Three Phase	0.05%
LH6R850	0 – 6 kV	850 mA	5 kW	Three Phase	0.05%
LH8X630	0 – 8 kV	630 mA	5 kW	Three Phase	0.05%
LH8P630	0 – 8 kV	630 mA	5 kW	Three Phase	0.05%
LH8N630	0 – 8 kV	630 mA	5 kW	Three Phase	0.05%
LH8R630	0 – 8 kV	630 mA	5 kW	Three Phase	0.05%

LH10X500	0 – 10 kV	500 mA	5 kW	Three Phase	0.05%
LH10P500	0 – 10 kV	500 mA	5 kW	Three Phase	0.05%
LH10N500	0 – 10 kV	500 mA	5 kW	Three Phase	0.05%
LH10R500	0 – 10 kV	500 mA	5 kW	Three Phase	0.05%

LH12X420	0 – 12 kV	420 mA	5 kW	Three Phase	0.05%
LH12P420	0 – 12 kV	420 mA	5 kW	Three Phase	0.05%
LH12N420	0 – 12 kV	420 mA	5 kW	Three Phase	0.05%
LH12R420	0 – 12 kV	420 mA	5 kW	Three Phase	0.05%

LH15X330	0 – 15 kV	330 mA	5 kW	Three Phase	0.05%
LH15P330	0 – 15 kV	330 mA	5 kW	Three Phase	0.05%
LH15N330	0 – 15 kV	330 mA	5 kW	Three Phase	0.05%
LH15R330	0 – 15 kV	330 mA	5 kW	Three Phase	0.05%

LH20X250	0 – 20 kV	250 mA	5 kW	Three Phase	0.05%
LH20P250	0 – 20 kV	250 mA	5 kW	Three Phase	0.05%
LH20N250	0 – 20 kV	250 mA	5 kW	Three Phase	0.05%
LH20R250	0 – 20 kV	250 mA	5 kW	Three Phase	0.05%

LH25X200	0 – 25 kV	200 mA	5 kW	Three Phase	0.05%
LH25P200	0 – 25 kV	200 mA	5 kW	Three Phase	0.05%
LH25N200	0 – 25 kV	200 mA	5 kW	Three Phase	0.05%
LH25R200	0 – 25 kV	200 mA	5 kW	Three Phase	0.05%

LH30X170	0 – 30 kV	170 mA	5 kW	Three Phase	0.05%
LH30P170	0 – 30 kV	170 mA	5 kW	Three Phase	0.05%
LH30N170	0 – 30 kV	170 mA	5 kW	Three Phase	0.05%
LH30R170	0 – 30 kV	170 mA	5 kW	Three Phase	0.05%

LH40X125	0 – 40 kV	125 mA	5 kW	Three Phase	0.05%
LH40P125	0 – 40 kV	125 mA	5 kW	Three Phase	0.05%
LH40N125	0 – 40 kV	125 mA	5 kW	Three Phase	0.05%
LH40R125	0 – 40 kV	125 mA	5 kW	Three Phase	0.05%

LH50X100	0 – 50 kV	100 mA	5 kW	Three Phase	0.05%
LH50P100	0 – 50 kV	100 mA	5 kW	Three Phase	0.05%
LH50N100	0 – 50 kV	100 mA	5 kW	Three Phase	0.05%
LH50R100	0 – 50 kV	100 mA	5 kW	Three Phase	0.05%

LH60X85	0 – 60 kV	85 mA	5 kW	Three Phase	0.05%
LH60P85	0 – 60 kV	85 mA	5 kW	Three Phase	0.05%
LH60N85	0 – 60 kV	85 mA	5 kW	Three Phase	0.05%
LH60R85	0 – 60 kV	85 mA	5 kW	Three Phase	0.05%

LH70X72	0 – 70 kV	72 mA	5 kW	Three Phase	0.05%
LH70P72	0 – 70 kV	72 mA	5 kW	Three Phase	0.05%
LH70N72	0 – 70 kV	72 mA	5 kW	Three Phase	0.05%
LH70R72	0 – 70 kV	72 mA	5 kW	Three Phase	0.05%

LH80X63	0 – 80 kV	63 mA	5 kW	Three Phase	0.05%
LH80P63	0 – 80 kV	63 mA	5 kW	Three Phase	0.05%
LH80N63	0 – 80 kV	63 mA	5 kW	Three Phase	0.05%
LH80R63	0 – 80 kV	63 mA	5 kW	Three Phase	0.05%

LH100X50	0 – 100 kV	50 mA	5 kW	Three Phase	0.05%
LH100P50	0 – 100 kV	50 mA	5 kW	Three Phase	0.05%
LH100N50	0 – 100 kV	50 mA	5 kW	Three Phase	0.05%
LH100R50	0 – 100 kV	50 mA	5 kW	Three Phase	0.05%

LH125X32	0 – 125 kV	32 mA	5 kW	Three Phase	0.05%
LH125P32	0 – 125 kV	32 mA	5 kW	Three Phase	0.05%
LH125N32	0 – 125 kV	32 mA	5 kW	Three Phase	0.05%
LH125R32	0 – 125 kV	32 mA	5 kW	Three Phase	0.05%

LH150X25	0 – 150 kV	25 mA	5 kW	Three Phase	0.05%
LH150P25	0 – 150 kV	25 mA	5 kW	Three Phase	0.05%
LH150N25	0 – 150 kV	25 mA	5 kW	Three Phase	0.05%
LH150R25	0 – 150 kV	25 mA	5 kW	Three Phase	0.05%
