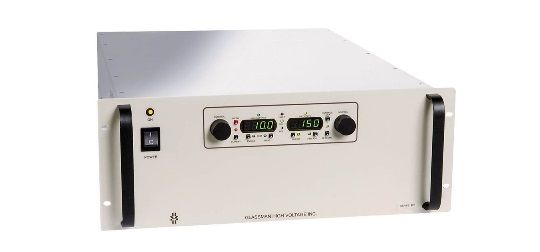

KT Series - High Voltage Power Supply
The KT Series of 2000 watt high voltage supplies feature flexible embedded controls with low ripple and noise. They are air insulated, fast response units, with tight regulation and low arc discharge currents.
Typical Applications
- plasma coating
- beam steering
- Cable Tester
- laboratory environment
| Series | Max. Output Voltage | Max. Output Current | Max. Output Power | Input Voltage | Ripple better than |
| KT70X29 | 0 – 70 kV | 29 mA | 2 kW | Single Phase | 0.025% |
| KT70P29 | 0 – 70 kV | 29 mA | 2 kW | Single Phase | 0.025% |
| KT70N29 | 0 – 70 kV | 29 mA | 2 kW | Single Phase | 0.025% |
| KT70R29 | 0 – 70 kV | 29 mA | 2 kW | Single Phase | 0.025% |
| KT80X25 | 0 – 80 kV | 25 mA | 2 kW | Single Phase | 0.025% |
| KT80P25 | 0 – 80 kV | 25 mA | 2 kW | Single Phase | 0.025% |
| KT80N25 | 0 – 80 kV | 25 mA | 2 kW | Single Phase | 0.025% |
| KT80R25 | 0 – 80 kV | 25 mA | 2 kW | Single Phase | 0.025% |
| KT100X20 | 0 – 100 kV | 20 mA | 2 kW | Single Phase | 0.025% |
| KT100P20 | 0 – 100 kV | 20 mA | 2 kW | Single Phase | 0.025% |
| KT100N20 | 0 – 100 kV | 20 mA | 2 kW | Single Phase | 0.025% |
| KT100R20 | 0 – 100 kV | 20 mA | 2 kW | Single Phase | 0.025% |
| KT125X12 | 0 – 125 kV | 12 mA | 2 kW | Single Phase | 0.025% |
| KT125P12 | 0 – 125 kV | 12 mA | 2 kW | Single Phase | 0.025% |
| KT125N12 | 0 – 125 kV | 12 mA | 2 kW | Single Phase | 0.025% |
| KT125R12 | 0 – 125 kV | 12 mA | 2 kW | Single Phase | 0.025% |
| KT150X10 | 0 – 150 kV | 10 mA | 2 kW | Single Phase | 0.025% |
| KT150P10 | 0 – 150 kV | 10 mA | 2 kW | Single Phase | 0.025% |
| KT150N10 | 0 – 150 kV | 10 mA | 2 kW | Single Phase | 0.025% |
| KT150R10 | 0 – 150 kV | 10 mA | 2 kW | Single Phase | 0.025% |
