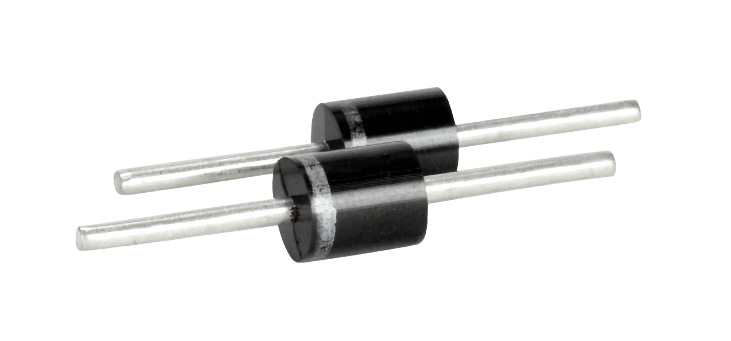

HVW / HVRW Series - High Voltage Diodes
Advanced diffusion and manufacturing techniques allow us to produce a wide range of diodes. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- Fast reverse recovery time for high efficiency
- Molded plastic body, ANSI/UL94 V-0 rated material
- RoHS compliant based on exemption: [2011/65/EC, Annex III, 7(a)]
Products
Products
HVW Series
| Part # | Repetitive Peak Reverse Voltage (V) | Forward Voltage Drop (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheets |
| HVW3 | 3000 | 3 | 2000 | 300 | – |  |
HVRW Series
| Part # | Repetitive Peak Reverse Voltage (V) | Forward Voltage Drop (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheets |
| HVRW1 | 1000 | 2 | 2500 | 200 | 150 | |
| HVRW2 | 2000 | 4 | 1500 | 200 | 150 | |
| HVRW3 | 3000 | 5 | 1500 | 200 | 150 | |
| HVRW4 | 4000 | 6 | 1000 | 200 | 150 | |
