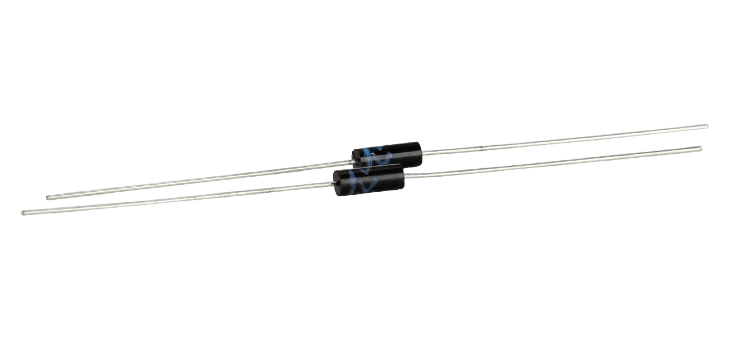

HVTDR Series - High Temperature, High Voltage Diodes
Features:
- High Temperature Use
- Low Reverse Leakage
- RoHS compliant to Directive 2011/65/EC
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Operating Temp (°C) | Datasheet |
| HVTDR3 | 3000 | 25 | 3 | -55 to 175 |  |
| HVTDR4 | 4000 | 25 | 3 | -55 to 175 | |
| HVTDR5 | 5000 | 25 | 3 | -55 to 175 | |
| HVTDR6 | 6000 | 25 | 3 | -55 to 175 | |
| HVTDR7 | 7000 | 25 | 3 | -55 to 175 | |
