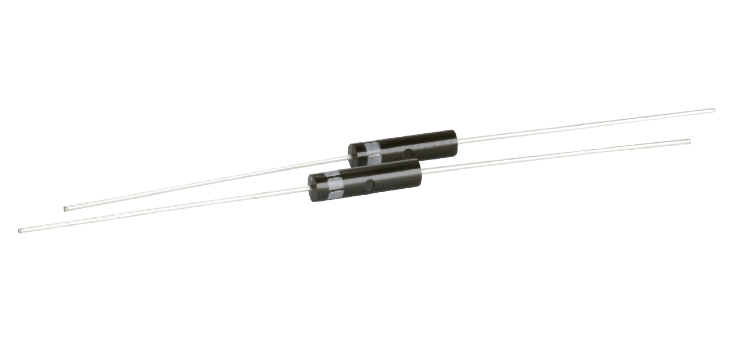

HVTD Series - High Temperature, High Voltage Diodes
Features:
- High Temperature Use
- Low Reverse Leakage
- RoHS compliant to Directive 2011/65/EC
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Operating Temp (°C) | Datasheet |
| HVTD3 | 3000 | 50 | 3 | -55 to 200 |  |
| HVTD5L | 5000 | 35 | 3 | -55 to 175 | |
| HVTD5 | 5000 | 50 | 3 | -55 to 175 | |
| HVTD6 | 6000 | 35 | 3 | -55 to 175 | |
| HVTD7 | 7000 | 35 | 3 | -55 to 175 | |
