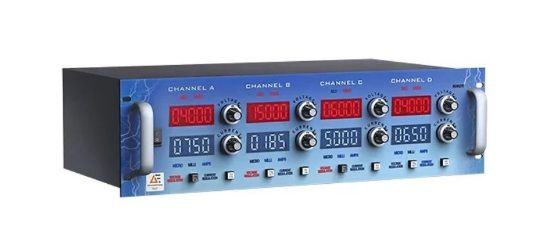

HV Rack Configurable Series
Accurately control and measure your high voltage power supplies and HV system performance. HV Rack configurable power systems enable you to select, control, and monitor your high voltage power supplies within each output channel. You can select power supplies from the DC/DC High Voltage Power Supplies A, C, LE, High Power C, and FIL series.
- Ideal for various beam applications
Data Sheets
Technical Information
Data Sheets
HV Rack SeriesTechnical Information
| Input Voltage 230 VAC, 60 Hz, 1500 W maximum Output Voltage from 0-62 VDC through 0-40 kVDC 1 to 4 configurable high voltage output channels Output Power 4 to 1000 W per channel, up to 1000 W total | Polarity Available as positive or negative Operating Case Temperature +10 to +45°C Ripple depends on the selected Modules | Standards UL/cUL recognized component; CE mark (LVD and RoHS) Benifits Power up to four power supplies Adjust voltage and current on each channel Ensure proper filament operation for maximum performance and precision Reduce voltage to 0 VDC Increase channel power (up to 1000 W) via parallel units |
