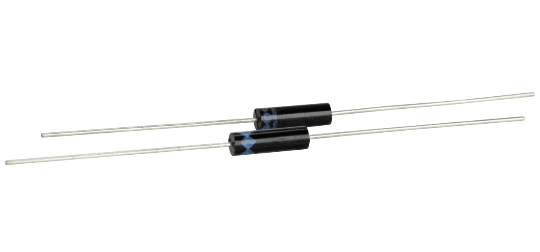

HL Series - High Voltage Diodes
Advanced diffusion and manufacturing techniques allow us to produce a wide range of diodes. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- Fast reverse recovery time for high efficiency
- Molded plastic body, ANSI/UL94 V-0 rated material
- RoHS compliant to Directive: 2011/65/EC
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| HL300 | 3000 | 40 | 3 | 100 |  |
| HL500 | 5000 | 40 | 3 | 100 | |
| HL800 | 8000 | 40 | 3 | 100 | |
| HL1000 | 10000 | 40 | 3 | 100 | |
| HL1200 | 12000 | 40 | 3 | 100 | |
