High Voltage Glass Passivated Rectifiers
Features
– Molded case feature for auto insertion
– High current capability
– Low leakage current
– High surge capability
– High temperature soldering guaranteed: 250℃/10sec/0.375″ (9.5mm) lead length at 5 lbs tension

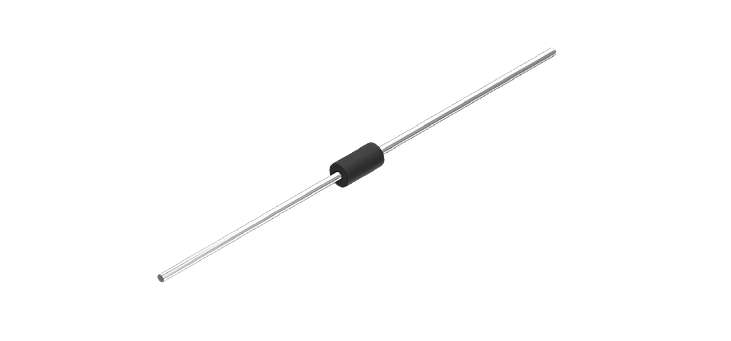

Package: D0-41
| Part Number | Package | VRRM(V) | IO(A) | IFSM(A) | VF(V) | IR(uA) | Datasheet |
| EM513G | DO-41 | 1600 | 1 | 30 | 1.25 | 5 |  |
| EM516G | DO-41 | 1800 | 1 | 30 | 2 | 5 | |
| EM518G | DO-41 | 2000 | 1 | 30 | 2 | 5 | |
