EV Series - High Voltage Power Supply

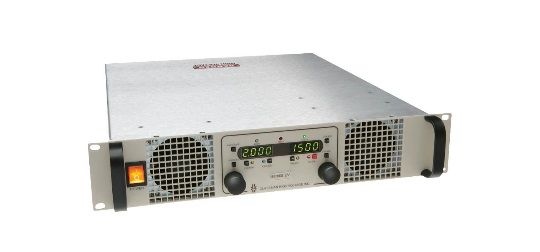

The EV family of power supplies are sophisticated, 3 kW, power supplies with low ripple and noise. They are air insulated, fast response units, with tight regulation.
Typical Applications
- Electron-beam Welding
- Ion Sources
- DC Magnetron Sputtering
- Glass/Web Coaters
Series | Max. Output Voltage | Max. Output Current | Max. Output Power | Input Voltage | Ripple better than |
EV0.7F4.0 | 0 – 750 V | 4 A | 3 kW | Single Phase | 0.4% |
EV1.0F3.0 | 0 – 1 kV | 3 A | 3 kW | Single Phase | 0.4% |
EV1.2F2.4 | 0 – 1.25 kV | 2.4 A | 3 kW | Single Phase | 0.4% |
EV1.5F2.0 | 0 – 1.5 kV | 2 A | 3 kW | Single Phase | 0.4% |
Input Voltage Output Voltage Output Power | Polarity Operating Ambient Temperature Ripple | Programming Standards |
