Bipolar C Series - High Voltage Power Supply

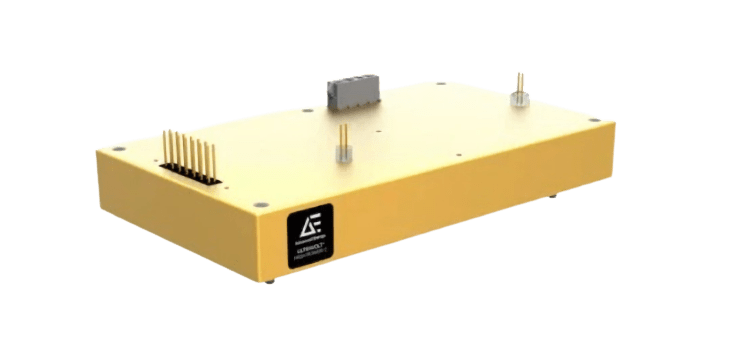

The Dual Polarity C series includes seven dual-output models ranging from ±125 to ±6000 VDC of maximum high voltage power. Each pair offers both a positive and negative polarity in a single package. From a 24 VDC input, access up to 250 W of total fast-rise charging power with less than 1% overshoot. Each output is individually controlled using an analog interface. Meet specific application needs by selecting mechanical integration options.

Typical Applications

High voltage power rails for Amplifiers and Piezoelectric devices
High voltage capacitor charging
Pulse generators and pulsed power
Ultrasound
Lasers and opto-electronics

Products

Data Sheets

Technical Information

Products


Part Number	Max. Voltage (Vdc)	Input Voltage (Vdc)	Max. Power (W)	Current (mA)	Ripple (%)	Temp. Coefficient (ppm per °C)
1/8C24-NP125	125	24	120	480	<1.0	<50
1/8C24-NP125-I5	125	24	120	480	<1.0	<50
1/8C24-NP125-I10	125	24	120	480	<1.0	<50
1/8C24-NP125-H	125	24	120	480	<1.0	<50
1/8C24-NP125-Z11	125	24	120	480	<1.0	<50

1/8C24-NP250	125	24	250	1000	<1.0	<50
1/8C24-NP250-I5	125	24	250	1000	<1.0	<50
1/8C24-NP250-I10	125	24	250	1000	<1.0	<50
1/8C24-NP250-H	125	24	250	1000	<1.0	<50
1/8C24-NP250-Z11	125	24	250	1000	<1.0	<50

1/4C24-NP125	250	24	120	240	<1.0	<50
1/4C24-NP125-I5	250	24	120	240	<1.0	<50
1/4C24-NP125-I10	250	24	120	240	<1.0	<50
1/4C24-NP125-H	250	24	120	240	<1.0	<50
1/4C24-NP125-Z11	250	24	120	240	<1.0	<50

1/4C24-NP250	250	24	250	500	<1.0	<50
1/4C24-NP250-I5	250	24	250	500	<1.0	<50
1/4C24-NP250-I10	250	24	250	500	<1.0	<50
1/4C24-NP250-H	250	24	250	500	<1.0	<50
1/4C24-NP250-Z11	250	24	250	500	<1.0	<50

1/2C24-NP125	500	24	120	120	<1.0	<50
1/2C24-NP125-I5	500	24	120	120	<1.0	<50
1/2C24-NP125-I10	500	24	120	120	<1.0	<50
1/2C24-NP125-H	500	24	120	120	<1.0	<50
1/2C24-NP125-Z11	500	24	120	120	<1.0	<50

1/2C24-NP250	500	24	250	250	<1.0	<50
1/2C24-NP250-I5	500	24	250	250	<1.0	<50
1/2C24-NP250-I10	500	24	250	250	<1.0	<50
1/2C24-NP250-H	500	24	250	250	<1.0	<50
1/2C24-NP250-Z11	500	24	250	250	<1.0	<50

1C24-NP125	1000	24	120	60	<1.0	<50
1C24-NP125-I5	1000	24	120	60	<1.0	<50
1C24-NP125-I10	1000	24	120	60	<1.0	<50
1C24-NP125-H	1000	24	120	60	<1.0	<50
1C24-NP125-Z11	1000	24	120	60	<1.0	<50

1C24-NP250	1000	24	250	125	<1.0	<50
1C24-NP250-I5	1000	24	250	125	<1.0	<50
1C24-NP250-I10	1000	24	250	125	<1.0	<50
1C24-NP250-H	1000	24	250	125	<1.0	<50
1C24-NP250-Z11	1000	24	250	125	<1.0	<50

2C24-NP125	2000	24	120	30	<1.0	<50
2C24-NP125-I5	2000	24	120	30	<1.0	<50
2C24-NP125-I10	2000	24	120	30	<1.0	<50
2C24-NP125-H	2000	24	120	30	<1.0	<50
2C24-NP125-Z11	2000	24	120	30	<1.0	<50

2C24-NP250	2000	24	250	63	<1.0	<50
2C24-NP250-I5	2000	24	250	63	<1.0	<50
2C24-NP250-I10	2000	24	250	63	<1.0	<50
2C24-NP250-H	2000	24	250	63	<1.0	<50
2C24-NP250-Z11	2000	24	250	63	<1.0	<50

4C24-NP125	4000	24	120	15	<1.0	<50
4C24-NP125-I5	4000	24	120	15	<1.0	<50
4C24-NP125-I10	4000	24	120	15	<1.0	<50
4C24-NP125-H	4000	24	120	15	<1.0	<50
4C24-NP125-Z11	4000	24	120	15	<1.0	<50

4C24-NP250	4000	24	250	31	<1.0	<50
4C24-NP250-I5	4000	24	250	31	<1.0	<50
4C24-NP250-I10	4000	24	250	31	<1.0	<50
4C24-NP250-H	4000	24	250	31	<1.0	<50
4C24-NP250-Z11	4000	24	250	31	<1.0	<50

6C24-NP125	6000	24	120	10	<1.0	<50
6C24-NP125-I5	6000	24	120	10	<1.0	<50
6C24-NP125-I10	6000	24	120	10	<1.0	<50
6C24-NP125-H	6000	24	120	10	<1.0	<50
6C24-NP125-Z11	6000	24	120	10	<1.0	<50

6C24-NP250	6000	24	250	21	<1.0	<50
6C24-NP250-I5	6000	24	250	21	<1.0	<50
6C24-NP250-I10	6000	24	250	21	<1.0	<50
6C24-NP250-H	6000	24	250	21	<1.0	<50
6C24-NP250-Z11	6000	24	250	21	<1.0	<50

Data Sheets

Technical Information

Dual Polarity C Series Datasheet	Polarity Reversing Configurations	Performing Isolation Tests on High Voltage Power Supplies
Remote Control High Voltage Power Supply	Electrical Termination & Mounting Configurations	Protection of High-Voltage Power Supplies in Single and Multiple HVPS Applications
