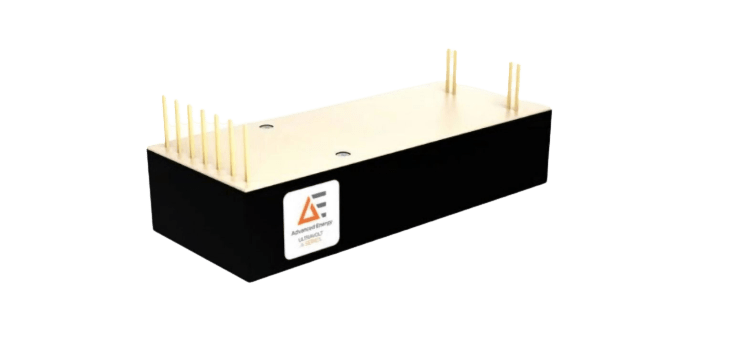

A Series - High Voltage Power Supply

The A series includes 15 models ranging from 62 to 40,000 VDC of maximum high voltage power in single-output positive or negative polarities. PCB or chassis-mounted, A series modules deliver up to 30 W of power from 12 or 24 VDC inputs. Precisely control and monitor high voltage output and current with one of several available analog interfaces. And meet your specific application needs with customizable mechanical and electrical performance options.

Typical Applications

Bias supplies
Electrostatic detectors
Mass spectrometers
Photomultiplier tubes (PMTs)

Products

Data Sheets

Technical Information

Products


Part Number	Max. Voltage (Vdc)	Input Voltage (Vdc)	Max. Power (W)	Current (mA)	Temp. Coefficient (ppm per °C)
1/16A12-x4	62	12	4	64	<50
1/16A12-P4	62	12	4	64	<50
1/16A12-N4	62	12	4	64	<50
1/16A12-P4-I5	62	12	4	64	<50
1/16A12-N4-I5	62	12	4	64	<50
1/16A12-P4-I10	62	12	4	64	<50
1/16A12-N4-I10	62	12	4	64	<50
1/16A12-P4-F	62	12	4	64	<50
1/16A12-N4-F	62	12	4	64	<50
1/16A12-P4-F-M	62	12	4	64	<50
1/16A12-N4-F-M	62	12	4	64	<50
1/16A12-P4-M	62	12	4	64	<50
1/16A12-N4-M	62	12	4	64	<50
1/16A12-P4-C	62	12	4	64	<50
1/16A12-N4-C	62	12	4	64	<50
1/16A12-P4-E	62	12	4	64	<50
1/16A12-N4-E	62	12	4	64	<50
1/16A12-P4-H	62	12	4	64	<50
1/16A12-N4-H	62	12	4	64	<50
1/16A12-P4-25PPM	62	12	4	64	<25
1/16A12-N4-25PPM	62	12	4	64	<25
1/16A12-P4-Y5	62	12	4	64	<50
1/16A12-N4-Y5	62	12	4	64	<50
1/16A12-P4-Y10	62	12	4	64	<50
1/16A12-N4-Y10	62	12	4	64	<50
1/16A12-P4-W	62	12	4	64	<50
1/16A12-N4-W	62	12	4	64	<50
1/16A12-P4-WS	62	12	4	64	<50
1/16A12-N4-WS	62	12	4	64	<50

1/16A24-x20	62	24	20	320	<50
1/16A24-P20	62	24	20	320	<50
1/16A24-N20	62	24	20	320	<50
1/16A24-P20-I5	62	24	20	320	<50
1/16A24-N20-I5	62	24	20	320	<50
1/16A24-P20-I10	62	24	20	320	<50
1/16A24-N20-I10	62	24	20	320	<50
1/16A24-P20-F	62	24	20	320	<50
1/16A24-N20-F	62	24	20	320	<50
1/16A24-P20-F-M	62	24	20	320	<50
1/16A24-N20-F-M	62	24	20	320	<50
1/16A24-P20-M	62	24	20	320	<50
1/16A24-N20-M	62	24	20	320	<50
1/16A24-P20-C	62	24	20	320	<50
1/16A24-N20-C	62	24	20	320	<50
1/16A24-P20-E	62	24	20	320	<50
1/16A24-N20-E	62	24	20	320	<50
1/16A24-P20-H	62	24	20	320	<50
1/16A24-N20-H	62	24	20	320	<50
1/16A24-P20-25PPM	62	24	20	320	<25
1/16A24-N20-25PPM	62	24	20	320	<25
1/16A24-P20-Y5	62	24	20	320	<50
1/16A24-N20-Y5	62	24	20	320	<50
1/16A24-P20-Y10	62	24	20	320	<50
1/16A24-N20-Y10	62	24	20	320	<50
1/16A24-P20-W	62	24	20	320	<50
1/16A24-N20-W	62	24	20	320	<50
1/16A24-P20-WS	62	24	20	320	<50
1/16A24-N20-WS	62	24	20	320	<50

1/16A24-x30	62	24	30	480	<50
1/16A24-P30	62	24	30	480	<50
1/16A24-N30	62	24	30	480	<50
1/16A24-P30-I5	62	24	30	480	<50
1/16A24-N30-I5	62	24	30	480	<50
1/16A24-P30-I10	62	24	30	480	<50
1/16A24-N30-I10	62	24	30	480	<50
1/16A24-P30-F	62	24	30	480	<50
1/16A24-N30-F	62	24	30	480	<50
1/16A24-P30-F-M	62	24	30	480	<50
1/16A24-N30-F-M	62	24	30	480	<50
1/16A24-P30-M	62	24	30	480	<50
1/16A24-N30-M	62	24	30	480	<50
1/16A24-P30-C	62	24	30	480	<50
1/16A24-N30-C	62	24	30	480	<50
1/16A24-P30-E	62	24	30	480	<50
1/16A24-N30-E	62	24	30	480	<50
1/16A24-P30-H	62	24	30	480	<50
1/16A24-N30-H	62	24	30	480	<50
1/16A24-P30-25PPM	62	24	30	480	<25
1/16A24-N30-25PPM	62	24	30	480	<25
1/16A24-P30-Y5	62	24	30	480	<50
1/16A24-N30-Y5	62	24	30	480	<50
1/16A24-P30-Y10	62	24	30	480	<50
1/16A24-N30-Y10	62	24	30	480	<50
1/16A24-P30-W	62	24	30	480	<50
1/16A24-N30-W	62	24	30	480	<50
1/16A24-P30-WS	62	24	30	480	<50
1/16A24-N30-WS	62	24	30	480	<50

1/8A12-x4	125	12	4	32	<50
1/8A12-P4	125	12	4	32	<50
1/8A12-N4	125	12	4	32	<50
1/8A12-P4-I5	125	12	4	32	<50
1/8A12-N4-I5	125	12	4	32	<50
1/8A12-P4-I10	125	12	4	32	<50
1/8A12-N4-I10	125	12	4	32	<50
1/8A12-P4-F	125	12	4	32	<50
1/8A12-N4-F	125	12	4	32	<50
1/8A12-P4-F-M	125	12	4	32	<50
1/8A12-N4-F-M	125	12	4	32	<50
1/8A12-P4-M	125	12	4	32	<50
1/8A12-N4-M	125	12	4	32	<50
1/8A12-P4-C	125	12	4	32	<50
1/8A12-N4-C	125	12	4	32	<50
1/8A12-P4-E	125	12	4	32	<50
1/8A12-N4-E	125	12	4	32	<50
1/8A12-P4-H	125	12	4	32	<50
1/8A12-N4-H	125	12	4	32	<50
1/8A12-P4-25PPM	125	12	4	32	<25
1/8A12-N4-25PPM	125	12	4	32	<25
1/8A12-P4-Y5	125	12	4	32	<50
1/8A12-N4-Y5	125	12	4	32	<50
1/8A12-P4-Y10	125	12	4	32	<50
1/8A12-N4-Y10	125	12	4	32	<50
1/8A12-P4-W	125	12	4	32	<50
1/8A12-N4-W	125	12	4	32	<50
1/8A12-P4-WS	125	12	4	32	<50
1/8A12-N4-WS	125	12	4	32	<50

1/8A24-x20	125	24	20	160	<50
1/8A24-P20	125	24	20	160	<50
1/8A24-N20	125	24	20	160	<50
1/8A24-P20-I5	125	24	20	160	<50
1/8A24-N20-I5	125	24	20	160	<50
1/8A24-P20-I10	125	24	20	160	<50
1/8A24-N20-I10	125	24	20	160	<50
1/8A24-P20-F	125	24	20	160	<50
1/8A24-N20-F	125	24	20	160	<50
1/8A24-P20-F-M	125	24	20	160	<50
1/8A24-N20-F-M	125	24	20	160	<50
1/8A24-P20-M	125	24	20	160	<50
1/8A24-N20-M	125	24	20	160	<50
1/8A24-P20-C	125	24	20	160	<50
1/8A24-N20-C	125	24	20	160	<50
1/8A24-P20-E	125	24	20	160	<50
1/8A24-N20-E	125	24	20	160	<50
1/8A24-P20-H	125	24	20	160	<50
1/8A24-N20-H	125	24	20	160	<50
1/8A24-P20-25PPM	125	24	20	160	<25
1/8A24-N20-25PPM	125	24	20	160	<25
1/8A24-P20-Y5	125	24	20	160	<50
1/8A24-N20-Y5	125	24	20	160	<50
1/8A24-P20-Y10	125	24	20	160	<50
1/8A24-N20-Y10	125	24	20	160	<50
1/8A24-P20-W	125	24	20	160	<50
1/8A24-N20-W	125	24	20	160	<50
1/8A24-P20-WS	125	24	20	160	<50
1/8A24-N20-WS	125	24	20	160	<50

1/8A24-x30	125	24	30	240	<50
1/8A24-P30	125	24	30	240	<50
1/8A24-N30	125	24	30	240	<50
1/8A24-P30-I5	125	24	30	240	<50
1/8A24-N30-I5	125	24	30	240	<50
1/8A24-P30-I10	125	24	30	240	<50
1/8A24-N30-I10	125	24	30	240	<50
1/8A24-P30-F	125	24	30	240	<50
1/8A24-N30-F	125	24	30	240	<50
1/8A24-P30-F-M	125	24	30	240	<50
1/8A24-N30-F-M	125	24	30	240	<50
1/8A24-P30-M	125	24	30	240	<50
1/8A24-N30-M	125	24	30	240	<50
1/8A24-P30-C	125	24	30	240	<50
1/8A24-N30-C	125	24	30	240	<50
1/8A24-P30-E	125	24	30	240	<50
1/8A24-N30-E	125	24	30	240	<50
1/8A24-P30-H	125	24	30	240	<50
1/8A24-N30-H	125	24	30	240	<50
1/8A24-P30-25PPM	125	24	30	240	<25
1/8A24-N30-25PPM	125	24	30	240	<25
1/8A24-P30-Y5	125	24	30	240	<50
1/8A24-N30-Y5	125	24	30	240	<50
1/8A24-P30-Y10	125	24	30	240	<50
1/8A24-N30-Y10	125	24	30	240	<50
1/8A24-P30-W	125	24	30	240	<50
1/8A24-N30-W	125	24	30	240	<50
1/8A24-P30-WS	125	24	30	240	<50
1/8A24-N30-WS	125	24	30	240	<50

1/4A12-x4	250	12	4	16	<50
1/4A12-P4	250	12	4	16	<50
1/4A12-N4	250	12	4	16	<50
1/4A12-P4-I5	250	12	4	16	<50
1/4A12-N4-I5	250	12	4	16	<50
1/4A12-P4-I10	250	12	4	16	<50
1/4A12-N4-I10	250	12	4	16	<50
1/4A12-P4-F	250	12	4	16	<50
1/4A12-N4-F	250	12	4	16	<50
1/4A12-P4-F-M	250	12	4	16	<50
1/4A12-N4-F-M	250	12	4	16	<50
1/4A12-P4-M	250	12	4	16	<50
1/4A12-N4-M	250	12	4	16	<50
1/4A12-P4-C	250	12	4	16	<50
1/4A12-N4-C	250	12	4	16	<50
1/4A12-P4-E	250	12	4	16	<50
1/4A12-N4-E	250	12	4	16	<50
1/4A12-P4-H	250	12	4	16	<50
1/4A12-N4-H	250	12	4	16	<50
1/4A12-P4-25PPM	250	12	4	16	<25
1/4A12-N4-25PPM	250	12	4	16	<25
1/4A12-P4-Y5	250	12	4	16	<50
1/4A12-N4-Y5	250	12	4	16	<50
1/4A12-P4-Y10	250	12	4	16	<50
1/4A12-N4-Y10	250	12	4	16	<50
1/4A12-P4-W	250	12	4	16	<50
1/4A12-N4-W	250	12	4	16	<50
1/4A12-P4-WS	250	12	4	16	<50
1/4A12-N4-WS	250	12	4	16	<50

1/4A24-x20	250	24	20	80	<50
1/4A24-P20	250	24	20	80	<50
1/4A24-N20	250	24	20	80	<50
1/4A24-P20-I5	250	24	20	80	<50
1/4A24-N20-I5	250	24	20	80	<50
1/4A24-P20-I10	250	24	20	80	<50
1/4A24-N20-I10	250	24	20	80	<50
1/4A24-P20-F	250	24	20	80	<50
1/4A24-N20-F	250	24	20	80	<50
1/4A24-P20-F-M	250	24	20	80	<50
1/4A24-N20-F-M	250	24	20	80	<50
1/4A24-P20-M	250	24	20	80	<50
1/4A24-N20-M	250	24	20	80	<50
1/4A24-P20-C	250	24	20	80	<50
1/4A24-N20-C	250	24	20	80	<50
1/4A24-P20-E	250	24	20	80	<50
1/4A24-N20-E	250	24	20	80	<50
1/4A24-P20-H	250	24	20	80	<50
1/4A24-N20-H	250	24	20	80	<50
1/4A24-P20-25PPM	250	24	20	80	<25
1/4A24-N20-25PPM	250	24	20	80	<25
1/4A24-P20-Y5	250	24	20	80	<50
1/4A24-N20-Y5	250	24	20	80	<50
1/4A24-P20-Y10	250	24	20	80	<50
1/4A24-N20-Y10	250	24	20	80	<50
1/4A24-P20-W	250	24	20	80	<50
1/4A24-N20-W	250	24	20	80	<50
1/4A24-P20-WS	250	24	20	80	<50
1/4A24-N20-WS	250	24	20	80	<50

1/4A24-x30	250	24	30	120	<50
1/4A24-P30	250	24	30	120	<50
1/4A24-N30	250	24	30	120	<50
1/4A24-P30-I5	250	24	30	120	<50
1/4A24-N30-I5	250	24	30	120	<50
1/4A24-P30-I10	250	24	30	120	<50
1/4A24-N30-I10	250	24	30	120	<50
1/4A24-P30-F	250	24	30	120	<50
1/4A24-N30-F	250	24	30	120	<50
1/4A24-P30-F-M	250	24	30	120	<50
1/4A24-N30-F-M	250	24	30	120	<50
1/4A24-P30-M	250	24	30	120	<50
1/4A24-N30-M	250	24	30	120	<50
1/4A24-P30-C	250	24	30	120	<50
1/4A24-N30-C	250	24	30	120	<50
1/4A24-P30-E	250	24	30	120	<50
1/4A24-N30-E	250	24	30	120	<50
1/4A24-P30-H	250	24	30	120	<50
1/4A24-N30-H	250	24	30	120	<50
1/4A24-P30-25PPM	250	24	30	120	<25
1/4A24-N30-25PPM	250	24	30	120	<25
1/4A24-P30-Y5	250	24	30	120	<50
1/4A24-N30-Y5	250	24	30	120	<50
1/4A24-P30-Y10	250	24	30	120	<50
1/4A24-N30-Y10	250	24	30	120	<50
1/4A24-P30-W	250	24	30	120	<50
1/4A24-N30-W	250	24	30	120	<50
1/4A24-P30-WS	250	24	30	120	<50
1/4A24-N30-WS	250	24	30	120	<50

1/2A12-x4	500	12	4	8	<50
1/2A12-P4	500	12	4	8	<50
1/2A12-N4	500	12	4	8	<50
1/2A12-P4-I5	500	12	4	8	<50
1/2A12-N4-I5	500	12	4	8	<50
1/2A12-P4-I10	500	12	4	8	<50
1/2A12-N4-I10	500	12	4	8	<50
1/2A12-P4-F	500	12	4	8	<50
1/2A12-N4-F	500	12	4	8	<50
1/2A12-P4-F-M	500	12	4	8	<50
1/2A12-N4-F-M	500	12	4	8	<50
1/2A12-P4-M	500	12	4	8	<50
1/2A12-N4-M	500	12	4	8	<50
1/2A12-P4-C	500	12	4	8	<50
1/2A12-N4-C	500	12	4	8	<50
1/2A12-P4-E	500	12	4	8	<50
1/2A12-N4-E	500	12	4	8	<50
1/2A12-P4-H	500	12	4	8	<50
1/2A12-N4-H	500	12	4	8	<50
1/2A12-P4-25PPM	500	12	4	8	<25
1/2A12-N4-25PPM	500	12	4	8	<25
1/2A12-P4-Y5	500	12	4	8	<50
1/2A12-N4-Y5	500	12	4	8	<50
1/2A12-P4-Y10	500	12	4	8	<50
1/2A12-N4-Y10	500	12	4	8	<50
1/2A12-P4-W	500	12	4	8	<50
1/2A12-N4-W	500	12	4	8	<50
1/2A12-P4-WS	500	12	4	8	<50
1/2A12-N4-WS	500	12	4	8	<50

1/2A24-x20	500	24	20	40	<50
1/2A24-P20	500	24	20	40	<50
1/2A24-N20	500	24	20	40	<50
1/2A24-P20-I5	500	24	20	40	<50
1/2A24-N20-I5	500	24	20	40	<50
1/2A24-P20-I10	500	24	20	40	<50
1/2A24-N20-I10	500	24	20	40	<50
1/2A24-P20-F	500	24	20	40	<50
1/2A24-N20-F	500	24	20	40	<50
1/2A24-P20-F-M	500	24	20	40	<50
1/2A24-N20-F-M	500	24	20	40	<50
1/2A24-P20-M	500	24	20	40	<50
1/2A24-N20-M	500	24	20	40	<50
1/2A24-P20-C	500	24	20	40	<50
1/2A24-N20-C	500	24	20	40	<50
1/2A24-P20-E	500	24	20	40	<50
1/2A24-N20-E	500	24	20	40	<50
1/2A24-P20-H	500	24	20	40	<50
1/2A24-N20-H	500	24	20	40	<50
1/2A24-P20-25PPM	500	24	20	40	<25
1/2A24-N20-25PPM	500	24	20	40	<25
1/2A24-P20-Y5	500	24	20	40	<50
1/2A24-N20-Y5	500	24	20	40	<50
1/2A24-P20-Y10	500	24	20	40	<50
1/2A24-N20-Y10	500	24	20	40	<50
1/2A24-P20-W	500	24	20	40	<50
1/2A24-N20-W	500	24	20	40	<50
1/2A24-P20-WS	500	24	20	40	<50
1/2A24-N20-WS	500	24	20	40	<50

1/2A24-x30	500	24	30	60	<50
1/2A24-P30	500	24	30	60	<50
1/2A24-N30	500	24	30	60	<50
1/2A24-P30-I5	500	24	30	60	<50
1/2A24-N30-I5	500	24	30	60	<50
1/2A24-P30-I10	500	24	30	60	<50
1/2A24-N30-I10	500	24	30	60	<50
1/2A24-P30-F	500	24	30	60	<50
1/2A24-N30-F	500	24	30	60	<50
1/2A24-P30-F-M	500	24	30	60	<50
1/2A24-N30-F-M	500	24	30	60	<50
1/2A24-P30-M	500	24	30	60	<50
1/2A24-N30-M	500	24	30	60	<50
1/2A24-P30-C	500	24	30	60	<50
1/2A24-N30-C	500	24	30	60	<50
1/2A24-P30-E	500	24	30	60	<50
1/2A24-N30-E	500	24	30	60	<50
1/2A24-P30-H	500	24	30	60	<50
1/2A24-N30-H	500	24	30	60	<50
1/2A24-P30-25PPM	500	24	30	60	<25
1/2A24-N30-25PPM	500	24	30	60	<25
1/2A24-P30-Y5	500	24	30	60	<50
1/2A24-N30-Y5	500	24	30	60	<50
1/2A24-P30-Y10	500	24	30	60	<50
1/2A24-N30-Y10	500	24	30	60	<50
1/2A24-P30-W	500	24	30	60	<50
1/2A24-N30-W	500	24	30	60	<50
1/2A24-P30-WS	500	24	30	60	<50
1/2A24-N30-WS	500	24	30	60	<50

1A12-x4	1000	12	4	4	<50
1A12-P4	1000	12	4	4	<50
1A12-N4	1000	12	4	4	<50
1A12-P4-I5	1000	12	4	4	<50
1A12-N4-I5	1000	12	4	4	<50
1A12-P4-I10	1000	12	4	4	<50
1A12-N4-I10	1000	12	4	4	<50
1A12-P4-F	1000	12	4	4	<50
1A12-N4-F	1000	12	4	4	<50
1A12-P4-F-M	1000	12	4	4	<50
1A12-N4-F-M	1000	12	4	4	<50
1A12-P4-M	1000	12	4	4	<50
1A12-N4-M	1000	12	4	4	<50
1A12-P4-C	1000	12	4	4	<50
1A12-N4-C	1000	12	4	4	<50
1A12-P4-E	1000	12	4	4	<50
1A12-N4-E	1000	12	4	4	<50
1A12-P4-H	1000	12	4	4	<50
1A12-N4-H	1000	12	4	4	<50
1A12-P4-25PPM	1000	12	4	4	<25
1A12-N4-25PPM	1000	12	4	4	<25
1A12-P4-Y5	1000	12	4	4	<50
1A12-N4-Y5	1000	12	4	4	<50
1A12-P4-Y10	1000	12	4	4	<50
1A12-N4-Y10	1000	12	4	4	<50
1A12-P4-W	1000	12	4	4	<50
1A12-N4-W	1000	12	4	4	<50
1A12-P4-WS	1000	12	4	4	<50
1A12-N4-WS	1000	12	4	4	<50

1A24-x20	1000	24	20	20	<50
1A24-P20	1000	24	20	20	<50
1A24-N20	1000	24	20	20	<50
1A24-P20-I5	1000	24	20	20	<50
1A24-N20-I5	1000	24	20	20	<50
1A24-P20-I10	1000	24	20	20	<50
1A24-N20-I10	1000	24	20	20	<50
1A24-P20-F	1000	24	20	20	<50
1A24-N20-F	1000	24	20	20	<50
1A24-P20-F-M	1000	24	20	20	<50
1A24-N20-F-M	1000	24	20	20	<50
1A24-P20-M	1000	24	20	20	<50
1A24-N20-M	1000	24	20	20	<50
1A24-P20-C	1000	24	20	20	<50
1A24-N20-C	1000	24	20	20	<50
1A24-P20-E	1000	24	20	20	<50
1A24-N20-E	1000	24	20	20	<50
1A24-P20-H	1000	24	20	20	<50
1A24-N20-H	1000	24	20	20	<50
1A24-P20-25PPM	1000	24	20	20	<25
1A24-N20-25PPM	1000	24	20	20	<25
1A24-P20-Y5	1000	24	20	20	<50
1A24-N20-Y5	1000	24	20	20	<50
1A24-P20-Y10	1000	24	20	20	<50
1A24-N20-Y10	1000	24	20	20	<50
1A24-P20-W	1000	24	20	20	<50
1A24-N20-W	1000	24	20	20	<50
1A24-P20-WS	1000	24	20	20	<50
1A24-N20-WS	1000	24	20	20	<50

1A24-x30	1000	24	30	30	<50
1A24-P30	1000	24	30	30	<50
1A24-N30	1000	24	30	30	<50
1A24-P30-I5	1000	24	30	30	<50
1A24-N30-I5	1000	24	30	30	<50
1A24-P30-I10	1000	24	30	30	<50
1A24-N30-I10	1000	24	30	30	<50
1A24-P30-F	1000	24	30	30	<50
1A24-N30-F	1000	24	30	30	<50
1A24-P30-F-M	1000	24	30	30	<50
1A24-N30-F-M	1000	24	30	30	<50
1A24-P30-M	1000	24	30	30	<50
1A24-N30-M	1000	24	30	30	<50
1A24-P30-C	1000	24	30	30	<50
1A24-N30-C	1000	24	30	30	<50
1A24-P30-E	1000	24	30	30	<50
1A24-N30-E	1000	24	30	30	<50
1A24-P30-H	1000	24	30	30	<50
1A24-N30-H	1000	24	30	30	<50
1A24-P30-25PPM	1000	24	30	30	<25
1A24-N30-25PPM	1000	24	30	30	<25
1A24-P30-Y5	1000	24	30	30	<50
1A24-N30-Y5	1000	24	30	30	<50
1A24-P30-Y10	1000	24	30	30	<50
1A24-N30-Y10	1000	24	30	30	<50
1A24-P30-W	1000	24	30	30	<50
1A24-N30-W	1000	24	30	30	<50
1A24-P30-WS	1000	24	30	30	<50
1A24-N30-WS	1000	24	30	30	<50

2A12-x4	2000	12	4	2	<50
2A12-P4	2000	12	4	2	<50
2A12-N4	2000	12	4	2	<50
2A12-P4-I5	2000	12	4	2	<50
2A12-N4-I5	2000	12	4	2	<50
2A12-P4-I10	2000	12	4	2	<50
2A12-N4-I10	2000	12	4	2	<50
2A12-P4-F	2000	12	4	2	<50
2A12-N4-F	2000	12	4	2	<50
2A12-P4-F-M	2000	12	4	2	<50
2A12-N4-F-M	2000	12	4	2	<50
2A12-P4-M	2000	12	4	2	<50
2A12-N4-M	2000	12	4	2	<50
2A12-P4-C	2000	12	4	2	<50
2A12-N4-C	2000	12	4	2	<50
2A12-P4-E	2000	12	4	2	<50
2A12-N4-E	2000	12	4	2	<50
2A12-P4-H	2000	12	4	2	<50
2A12-N4-H	2000	12	4	2	<50
2A12-P4-25PPM	2000	12	4	2	<25
2A12-N4-25PPM	2000	12	4	2	<25
2A12-P4-Y5	2000	12	4	2	<50
2A12-N4-Y5	2000	12	4	2	<50
2A12-P4-Y10	2000	12	4	2	<50
2A12-N4-Y10	2000	12	4	2	<50
2A12-P4-W	2000	12	4	2	<50
2A12-N4-W	2000	12	4	2	<50
2A12-P4-WS	2000	12	4	2	<50
2A12-N4-WS	2000	12	4	2	<50

2A24-x20	2000	24	20	10	<50
2A24-P20	2000	24	20	10	<50
2A24-N20	2000	24	20	10	<50
2A24-P20-I5	2000	24	20	10	<50
2A24-N20-I5	2000	24	20	10	<50
2A24-P20-I10	2000	24	20	10	<50
2A24-N20-I10	2000	24	20	10	<50
2A24-P20-F	2000	24	20	10	<50
2A24-N20-F	2000	24	20	10	<50
2A24-P20-F-M	2000	24	20	10	<50
2A24-N20-F-M	2000	24	20	10	<50
2A24-P20-M	2000	24	20	10	<50
2A24-N20-M	2000	24	20	10	<50
2A24-P20-C	2000	24	20	10	<50
2A24-N20-C	2000	24	20	10	<50
2A24-P20-E	2000	24	20	10	<50
2A24-N20-E	2000	24	20	10	<50
2A24-P20-H	2000	24	20	10	<50
2A24-N20-H	2000	24	20	10	<50
2A24-P20-25PPM	2000	24	20	10	<25
2A24-N20-25PPM	2000	24	20	10	<25
2A24-P20-Y5	2000	24	20	10	<50
2A24-N20-Y5	2000	24	20	10	<50
2A24-P20-Y10	2000	24	20	10	<50
2A24-N20-Y10	2000	24	20	10	<50
2A24-P20-W	2000	24	20	10	<50
2A24-N20-W	2000	24	20	10	<50
2A24-P20-WS	2000	24	20	10	<50
2A24-N20-WS	2000	24	20	10	<50

2A24-x30	2000	24	30	15	<50
2A24-P30	2000	24	30	15	<50
2A24-N30	2000	24	30	15	<50
2A24-P30-I5	2000	24	30	15	<50
2A24-N30-I5	2000	24	30	15	<50
2A24-P30-I10	2000	24	30	15	<50
2A24-N30-I10	2000	24	30	15	<50
2A24-P30-F	2000	24	30	15	<50
2A24-N30-F	2000	24	30	15	<50
2A24-P30-F-M	2000	24	30	15	<50
2A24-N30-F-M	2000	24	30	15	<50
2A24-P30-M	2000	24	30	15	<50
2A24-N30-M	2000	24	30	15	<50
2A24-P30-C	2000	24	30	15	<50
2A24-N30-C	2000	24	30	15	<50
2A24-P30-E	2000	24	30	15	<50
2A24-N30-E	2000	24	30	15	<50
2A24-P30-H	2000	24	30	15	<50
2A24-N30-H	2000	24	30	15	<50
2A24-P30-25PPM	2000	24	30	15	<25
2A24-N30-25PPM	2000	24	30	15	<25
2A24-P30-Y5	2000	24	30	15	<50
2A24-N30-Y5	2000	24	30	15	<50
2A24-P30-Y10	2000	24	30	15	<50
2A24-N30-Y10	2000	24	30	15	<50
2A24-P30-W	2000	24	30	15	<50
2A24-N30-W	2000	24	30	15	<50
2A24-P30-WS	2000	24	30	15	<50
2A24-N30-WS	2000	24	30	15	<50

4A12-x4	4000	12	4	1	<50
4A12-P4	4000	12	4	1	<50
4A12-N4	4000	12	4	1	<50
4A12-P4-I5	4000	12	4	1	<50
4A12-N4-I5	4000	12	4	1	<50
4A12-P4-I10	4000	12	4	1	<50
4A12-N4-I10	4000	12	4	1	<50
4A12-P4-F	4000	12	4	1	<50
4A12-N4-F	4000	12	4	1	<50
4A12-P4-F-M	4000	12	4	1	<50
4A12-N4-F-M	4000	12	4	1	<50
4A12-P4-M	4000	12	4	1	<50
4A12-N4-M	4000	12	4	1	<50
4A12-P4-C	4000	12	4	1	<50
4A12-N4-C	4000	12	4	1	<50
4A12-P4-E	4000	12	4	1	<50
4A12-N4-E	4000	12	4	1	<50
4A12-P4-H	4000	12	4	1	<50
4A12-N4-H	4000	12	4	1	<50
4A12-P4-25PPM	4000	12	4	1	<25
4A12-N4-25PPM	4000	12	4	1	<25
4A12-P4-Y5	4000	12	4	1	<50
4A12-N4-Y5	4000	12	4	1	<50
4A12-P4-Y10	4000	12	4	1	<50
4A12-N4-Y10	4000	12	4	1	<50
4A12-P4-W	4000	12	4	1	<50
4A12-N4-W	4000	12	4	1	<50
4A12-P4-WS	4000	12	4	1	<50
4A12-N4-WS	4000	12	4	1	<50

4A24-x20	4000	24	20	5	<50
4A24-P20	4000	24	20	5	<50
4A24-N20	4000	24	20	5	<50
4A24-P20-I5	4000	24	20	5	<50
4A24-N20-I5	4000	24	20	5	<50
4A24-P20-I10	4000	24	20	5	<50
4A24-N20-I10	4000	24	20	5	<50
4A24-P20-F	4000	24	20	5	<50
4A24-N20-F	4000	24	20	5	<50
4A24-P20-F-M	4000	24	20	5	<50
4A24-N20-F-M	4000	24	20	5	<50
4A24-P20-M	4000	24	20	5	<50
4A24-N20-M	4000	24	20	5	<50
4A24-P20-C	4000	24	20	5	<50
4A24-N20-C	4000	24	20	5	<50
4A24-P20-E	4000	24	20	5	<50
4A24-N20-E	4000	24	20	5	<50
4A24-P20-H	4000	24	20	5	<50
4A24-N20-H	4000	24	20	5	<50
4A24-P20-25PPM	4000	24	20	5	<25
4A24-N20-25PPM	4000	24	20	5	<25
4A24-P20-Y5	4000	24	20	5	<50
4A24-N20-Y5	4000	24	20	5	<50
4A24-P20-Y10	4000	24	20	5	<50
4A24-N20-Y10	4000	24	20	5	<50
4A24-P20-W	4000	24	20	5	<50
4A24-N20-W	4000	24	20	5	<50
4A24-P20-WS	4000	24	20	5	<50
4A24-N20-WS	4000	24	20	5	<50

4A24-x30	4000	24	30	7.5	<50
4A24-P30	4000	24	30	7.5	<50
4A24-N30	4000	24	30	7.5	<50
4A24-P30-I5	4000	24	30	7.5	<50
4A24-N30-I5	4000	24	30	7.5	<50
4A24-P30-I10	4000	24	30	7.5	<50
4A24-N30-I10	4000	24	30	7.5	<50
4A24-P30-F	4000	24	30	7.5	<50
4A24-N30-F	4000	24	30	7.5	<50
4A24-P30-F-M	4000	24	30	7.5	<50
4A24-N30-F-M	4000	24	30	7.5	<50
4A24-P30-M	4000	24	30	7.5	<50
4A24-N30-M	4000	24	30	7.5	<50
4A24-P30-C	4000	24	30	7.5	<50
4A24-N30-C	4000	24	30	7.5	<50
4A24-P30-E	4000	24	30	7.5	<50
4A24-N30-E	4000	24	30	7.5	<50
4A24-P30-H	4000	24	30	7.5	<50
4A24-N30-H	4000	24	30	7.5	<50
4A24-P30-25PPM	4000	24	30	7.5	<25
4A24-N30-25PPM	4000	24	30	7.5	<25
4A24-P30-Y5	4000	24	30	7.5	<50
4A24-N30-Y5	4000	24	30	7.5	<50
4A24-P30-Y10	4000	24	30	7.5	<50
4A24-N30-Y10	4000	24	30	7.5	<50
4A24-P30-W	4000	24	30	7.5	<50
4A24-N30-W	4000	24	30	7.5	<50
4A24-P30-WS	4000	24	30	7.5	<50
4A24-N30-WS	4000	24	30	7.5	<50

6A12-x4	6000	12	4	0.67	<50
6A12-P4	6000	12	4	0.67	<50
6A12-N4	6000	12	4	0.67	<50
6A12-P4-I5	6000	12	4	0.67	<50
6A12-N4-I5	6000	12	4	0.67	<50
6A12-P4-I10	6000	12	4	0.67	<50
6A12-N4-I10	6000	12	4	0.67	<50
6A12-P4-F	6000	12	4	0.67	<50
6A12-N4-F	6000	12	4	0.67	<50
6A12-P4-F-M	6000	12	4	0.67	<50
6A12-N4-F-M	6000	12	4	0.67	<50
6A12-P4-M	6000	12	4	0.67	<50
6A12-N4-M	6000	12	4	0.67	<50
6A12-P4-C	6000	12	4	0.67	<50
6A12-N4-C	6000	12	4	0.67	<50
6A12-P4-E	6000	12	4	0.67	<50
6A12-N4-E	6000	12	4	0.67	<50
6A12-P4-H	6000	12	4	0.67	<50
6A12-N4-H	6000	12	4	0.67	<50
6A12-P4-25PPM	6000	12	4	0.67	<25
6A12-N4-25PPM	6000	12	4	0.67	<25
6A12-P4-Y5	6000	12	4	0.67	<50
6A12-N4-Y5	6000	12	4	0.67	<50
6A12-P4-Y10	6000	12	4	0.67	<50
6A12-N4-Y10	6000	12	4	0.67	<50
6A12-P4-W	6000	12	4	0.67	<50
6A12-N4-W	6000	12	4	0.67	<50
6A12-P4-WS	6000	12	4	0.67	<50
6A12-N4-WS	6000	12	4	0.67	<50

6A24-x20	6000	24	20	3.3	<50
6A24-P20	6000	24	20	3.3	<50
6A24-N20	6000	24	20	3.3	<50
6A24-P20-I5	6000	24	20	3.3	<50
6A24-N20-I5	6000	24	20	3.3	<50
6A24-P20-I10	6000	24	20	3.3	<50
6A24-N20-I10	6000	24	20	3.3	<50
6A24-P20-F	6000	24	20	3.3	<50
6A24-N20-F	6000	24	20	3.3	<50
6A24-P20-F-M	6000	24	20	3.3	<50
6A24-N20-F-M	6000	24	20	3.3	<50
6A24-P20-M	6000	24	20	3.3	<50
6A24-N20-M	6000	24	20	3.3	<50
6A24-P20-C	6000	24	20	3.3	<50
6A24-N20-C	6000	24	20	3.3	<50
6A24-P20-E	6000	24	20	3.3	<50
6A24-N20-E	6000	24	20	3.3	<50
6A24-P20-H	6000	24	20	3.3	<50
6A24-N20-H	6000	24	20	3.3	<50
6A24-P20-25PPM	6000	24	20	3.3	<25
6A24-N20-25PPM	6000	24	20	3.3	<25
6A24-P20-Y5	6000	24	20	3.3	<50
6A24-N20-Y5	6000	24	20	3.3	<50
6A24-P20-Y10	6000	24	20	3.3	<50
6A24-N20-Y10	6000	24	20	3.3	<50
6A24-P20-W	6000	24	20	3.3	<50
6A24-N20-W	6000	24	20	3.3	<50
6A24-P20-WS	6000	24	20	3.3	<50
6A24-N20-WS	6000	24	20	3.3	<50

6A24-x30	6000	24	30	5	<50
6A24-P30	6000	24	30	5	<50
6A24-N30	6000	24	30	5	<50
6A24-P30-I5	6000	24	30	5	<50
6A24-N30-I5	6000	24	30	5	<50
6A24-P30-I10	6000	24	30	5	<50
6A24-N30-I10	6000	24	30	5	<50
6A24-P30-F	6000	24	30	5	<50
6A24-N30-F	6000	24	30	5	<50
6A24-P30-F-M	6000	24	30	5	<50
6A24-N30-F-M	6000	24	30	5	<50
6A24-P30-M	6000	24	30	5	<50
6A24-N30-M	6000	24	30	5	<50
6A24-P30-C	6000	24	30	5	<50
6A24-N30-C	6000	24	30	5	<50
6A24-P30-E	6000	24	30	5	<50
6A24-N30-E	6000	24	30	5	<50
6A24-P30-H	6000	24	30	5	<50
6A24-N30-H	6000	24	30	5	<50
6A24-P30-25PPM	6000	24	30	5	<25
6A24-N30-25PPM	6000	24	30	5	<25
6A24-P30-Y5	6000	24	30	5	<50
6A24-N30-Y5	6000	24	30	5	<50
6A24-P30-Y10	6000	24	30	5	<50
6A24-N30-Y10	6000	24	30	5	<50
6A24-P30-W	6000	24	30	5	<50
6A24-N30-W	6000	24	30	5	<50
6A24-P30-WS	6000	24	30	5	<50
6A24-N30-WS	6000	24	30	5	<50

10A12-x4	10000	12	4	0.4	<50
10A12-P4	10000	12	4	0.4	<50
10A12-N4	10000	12	4	0.4	<50
10A12-P4-I5	10000	12	4	0.4	<50
10A12-N4-I5	10000	12	4	0.4	<50
10A12-P4-F-M	10000	12	4	0.4	<50
10A12-N4-F-M	10000	12	4	0.4	<50
10A12-P4-F-M-C	10000	12	4	0.4	<50
10A12-N4-F-M-C	10000	12	4	0.4	<50
10A12-P4-25PPM	10000	12	4	0.4	<25
10A12-N4-25PPM	10000	12	4	0.4	<25
10A12-P4-25PPM-F-M	10000	12	4	0.4	<25
10A12-N4-25PPM-F-M	10000	12	4	0.4	<25
10A12-P4-25PPM-F-M-C	10000	12	4	0.4	<25
10A12-N4-25PPM-F-M-C	10000	12	4	0.4	<25
10A12-P4-M	10000	12	4	0.4	<50
10A12-N4-M	10000	12	4	0.4	<50
10A12-P4-C	10000	12	4	0.4	<50
10A12-N4-C	10000	12	4	0.4	<50
10A12-P4-E	10000	12	4	0.4	<50
10A12-N4-E	10000	12	4	0.4	<50
10A12-P4-H	10000	12	4	0.4	<50
10A12-N4-H	10000	12	4	0.4	<50
10A12-P4-WS	10000	12	4	0.4	<50
10A12-N4-WS	10000	12	4	0.4	<50
10A12-P4-AP	10000	12	4	0.4	<50
10A12-N4-AP	10000	12	4	0.4	<50

10A24-x15	10000	24	15	1.5	<50
10A24-P15	10000	24	15	1.5	<50
10A24-N15	10000	24	15	1.5	<50
10A24-P15-I5	10000	24	15	1.5	<50
10A24-N15-I5	10000	24	15	1.5	<50
10A24-P15-I10	10000	24	15	1.5	<50
10A24-N15-I10	10000	24	15	1.5	<50
10A24-P15-F-M	10000	24	15	1.5	<50
10A24-N15-F-M	10000	24	15	1.5	<50
10A24-P15-F-M-C	10000	24	15	1.5	<50
10A24-N15-F-M-C	10000	24	15	1.5	<50
10A24-P15-25PPM	10000	24	15	1.5	<25
10A24-N15-25PPM	10000	24	15	1.5	<25
10A24-P15-25PPM-F-M	10000	24	15	1.5	<25
10A24-N15-25PPM-F-M	10000	24	15	1.5	<25
10A24-P15-25PPM-F-M-C	10000	24	15	1.5	<25
10A24-N15-25PPM-F-M-C	10000	24	15	1.5	<25
10A24-P15-M	10000	24	15	1.5	<50
10A24-N15-M	10000	24	15	1.5	<50
10A24-P15-C	10000	24	15	1.5	<50
10A24-N15-C	10000	24	15	1.5	<50
10A24-P15-E	10000	24	15	1.5	<50
10A24-N15-E	10000	24	15	1.5	<50
10A24-P15-H	10000	24	15	1.5	<50
10A24-N15-H	10000	24	15	1.5	<50
10A24-P15-WS	10000	24	15	1.5	<50
10A24-N15-WS	10000	24	15	1.5	<50
10A24-P15-AP	10000	24	15	1.5	<50
10A24-N15-AP	10000	24	15	1.5	<50

10A24-x30	10000	24	30	3	<50
10A24-P30	10000	24	30	3	<50
10A24-N30	10000	24	30	3	<50
10A24-P30-I5	10000	24	30	3	<50
10A24-N30-I5	10000	24	30	3	<50
10A24-P30-I10	10000	24	30	3	<50
10A24-N30-I10	10000	24	30	3	<50
10A24-P30-F-M	10000	24	30	3	<50
10A24-N30-F-M	10000	24	30	3	<50
10A24-P30-F-M-C	10000	24	30	3	<50
10A24-N30-F-M-C	10000	24	30	3	<50
10A24-P30-25PPM	10000	24	30	3	<25
10A24-N30-25PPM	10000	24	30	3	<25
10A24-P30-25PPM-F-M	10000	24	30	3	<25
10A24-N30-25PPM-F-M	10000	24	30	3	<25
10A24-P30-25PPM-F-M-C	10000	24	30	3	<25
10A24-N30-25PPM-F-M-C	10000	24	30	3	<25
10A24-P30-M	10000	24	30	3	<50
10A24-N30-M	10000	24	30	3	<50
10A24-P30-C	10000	24	30	3	<50
10A24-N30-C	10000	24	30	3	<50
10A24-P30-E	10000	24	30	3	<50
10A24-N30-E	10000	24	30	3	<50
10A24-P30-H	10000	24	30	3	<50
10A24-N30-H	10000	24	30	3	<50
10A24-P30-WS	10000	24	30	3	<50
10A24-N30-WS	10000	24	30	3	<50
10A24-P30-AP	10000	24	30	3	<50
10A24-N30-AP	10000	24	30	3	<50

15A12-x4	15000	12	4	0.26	<50
15A12-P4	15000	12	4	0.26	<50
15A12-N4	15000	12	4	0.26	<50
15A12-P4-F-M	15000	12	4	0.26	<50
15A12-N4-F-M	15000	12	4	0.26	<50
15A12-P4-F-M-C	15000	12	4	0.26	<50
15A12-N4-F-M-C	15000	12	4	0.26	<50
15A12-P4-25PPM	15000	12	4	0.26	<25
15A12-N4-25PPM	15000	12	4	0.26	<25
15A12-P4-25PPM-F-M	15000	12	4	0.26	<25
15A12-N4-25PPM-F-M	15000	12	4	0.26	<25
15A12-P4-25PPM-F-M-C	15000	12	4	0.26	<25
15A12-N4-25PPM-F-M-C	15000	12	4	0.26	<25
15A12-P4-M	15000	12	4	0.26	<50
15A12-N4-M	15000	12	4	0.26	<50
15A12-P4-C	15000	12	4	0.26	<50
15A12-N4-C	15000	12	4	0.26	<50
15A12-P4-E	15000	12	4	0.26	<50
15A12-N4-E	15000	12	4	0.26	<50
15A12-P4-H	15000	12	4	0.26	<50
15A12-N4-H	15000	12	4	0.26	<50
15A12-P4-WS	15000	12	4	0.26	<50
15A12-N4-WS	15000	12	4	0.26	<50
15A12-P4-AP	15000	12	4	0.26	<50
15A12-N4-AP	15000	12	4	0.26	<50

15A24-x15	15000	24	15	1	<50
15A24-P15	15000	24	15	1	<50
15A24-N15	15000	24	15	1	<50
15A24-P15-F-M	15000	24	15	1	<50
15A24-N15-F-M	15000	24	15	1	<50
15A24-P15-F-M-C	15000	24	15	1	<50
15A24-N15-F-M-C	15000	24	15	1	<50
15A24-P15-25PPM	15000	24	15	1	<25
15A24-N15-25PPM	15000	24	15	1	<25
15A24-P15-25PPM-F-M	15000	24	15	1	<25
15A24-N15-25PPM-F-M	15000	24	15	1	<25
15A24-P15-25PPM-F-M-C	15000	24	15	1	<25
15A24-N15-25PPM-F-M-C	15000	24	15	1	<25
15A24-P15-M	15000	24	15	1	<50
15A24-N15-M	15000	24	15	1	<50
15A24-P15-C	15000	24	15	1	<50
15A24-N15-C	15000	24	15	1	<50
15A24-P15-E	15000	24	15	1	<50
15A24-N15-E	15000	24	15	1	<50
15A24-P15-H	15000	24	15	1	<50
15A24-N15-H	15000	24	15	1	<50
15A24-P15-WS	15000	24	15	1	<50
15A24-N15-WS	15000	24	15	1	<50
15A24-P15-AP	15000	24	15	1	<50
15A24-N15-AP	15000	24	15	1	<50

15A24-x30	15000	24	30	2	<50
15A24-P30	15000	24	30	2	<50
15A24-N30	15000	24	30	2	<50
15A24-P30-F-M	15000	24	30	2	<50
15A24-N30-F-M	15000	24	30	2	<50
15A24-P30-F-M-C	15000	24	30	2	<50
15A24-N30-F-M-C	15000	24	30	2	<50
15A24-P30-25PPM	15000	24	30	2	<25
15A24-N30-25PPM	15000	24	30	2	<25
15A24-P30-25PPM-F-M	15000	24	30	2	<25
15A24-N30-25PPM-F-M	15000	24	30	2	<25
15A24-P30-25PPM-F-M-C	15000	24	30	2	<25
15A24-N30-25PPM-F-M-C	15000	24	30	2	<25
15A24-P30-M	15000	24	30	2	<50
15A24-N30-M	15000	24	30	2	<50
15A24-P30-C	15000	24	30	2	<50
15A24-N30-C	15000	24	30	2	<50
15A24-P30-E	15000	24	30	2	<50
15A24-N30-E	15000	24	30	2	<50
15A24-P30-H	15000	24	30	2	<50
15A24-N30-H	15000	24	30	2	<50
15A24-P30-WS	15000	24	30	2	<50
15A24-N30-WS	15000	24	30	2	<50
15A24-P30-AP	15000	24	30	2	<50
15A24-N30-AP	15000	24	30	2	<50

20A12-x4	20000	12	4	0.2	<50
20A12-P4	20000	12	4	0.2	<50
20A12-N4	20000	12	4	0.2	<50
20A12-P4-I5	20000	12	4	0.2	<50
20A12-N4-I5	20000	12	4	0.2	<50
20A12-P4-F-M	20000	12	4	0.2	<50
20A12-N4-F-M	20000	12	4	0.2	<50
20A12-P4-F-M-C	20000	12	4	0.2	<50
20A12-N4-F-M-C	20000	12	4	0.2	<50
20A12-P4-25PPM	20000	12	4	0.2	<25
20A12-N4-25PPM	20000	12	4	0.2	<25
20A12-P4-25PPM-F-M	20000	12	4	0.2	<25
20A12-N4-25PPM-F-M	20000	12	4	0.2	<25
20A12-P4-25PPM-F-M-C	20000	12	4	0.2	<25
20A12-N4-25PPM-F-M-C	20000	12	4	0.2	<25
20A12-P4-M	20000	12	4	0.2	<50
20A12-N4-M	20000	12	4	0.2	<50
20A12-P4-C	20000	12	4	0.2	<50
20A12-N4-C	20000	12	4	0.2	<50
20A12-P4-E	20000	12	4	0.2	<50
20A12-N4-E	20000	12	4	0.2	<50
20A12-P4-H	20000	12	4	0.2	<50
20A12-N4-H	20000	12	4	0.2	<50
20A12-P4-WS	20000	12	4	0.2	<50
20A12-N4-WS	20000	12	4	0.2	<50
20A12-P4-AP	20000	12	4	0.2	<50
20A12-N4-AP	20000	12	4	0.2	<50

20A24-x15	20000	24	15	0.75	<50
20A24-P15	20000	24	15	0.75	<50
20A24-N15	20000	24	15	0.75	<50
20A24-P15-I5	20000	24	15	0.75	<50
20A24-N15-I5	20000	24	15	0.75	<50
20A24-P15-I10	20000	24	15	0.75	<50
20A24-N15-I10	20000	24	15	0.75	<50
20A24-P15-F-M	20000	24	15	0.75	<50
20A24-N15-F-M	20000	24	15	0.75	<50
20A24-P15-F-M-C	20000	24	15	0.75	<50
20A24-N15-F-M-C	20000	24	15	0.75	<50
20A24-P15-25PPM	20000	24	15	0.75	<25
20A24-N15-25PPM	20000	24	15	0.75	<25
20A24-P15-25PPM-F-M	20000	24	15	0.75	<25
20A24-N15-25PPM-F-M	20000	24	15	0.75	<25
20A24-P15-25PPM-F-M-C	20000	24	15	0.75	<25
20A24-N15-25PPM-F-M-C	20000	24	15	0.75	<25
20A24-P15-M	20000	24	15	0.75	<50
20A24-N15-M	20000	24	15	0.75	<50
20A24-P15-C	20000	24	15	0.75	<50
20A24-N15-C	20000	24	15	0.75	<50
20A24-P15-E	20000	24	15	0.75	<50
20A24-N15-E	20000	24	15	0.75	<50
20A24-P15-H	20000	24	15	0.75	<50
20A24-N15-H	20000	24	15	0.75	<50
20A24-P15-WS	20000	24	15	0.75	<50
20A24-N15-WS	20000	24	15	0.75	<50
20A24-P15-AP	20000	24	15	0.75	<50
20A24-N15-AP	20000	24	15	0.75	<50

20A24-x30	20000	24	30	1.5	<50
20A24-P30	20000	24	30	1.5	<50
20A24-N30	20000	24	30	1.5	<50
20A24-P30-I5	20000	24	30	1.5	<50
20A24-N30-I5	20000	24	30	1.5	<50
20A24-P30-I10	20000	24	30	1.5	<50
20A24-N30-I10	20000	24	30	1.5	<50
20A24-P30-F-M	20000	24	30	1.5	<50
20A24-N30-F-M	20000	24	30	1.5	<50
20A24-P30-F-M-C	20000	24	30	1.5	<50
20A24-N30-F-M-C	20000	24	30	1.5	<50
20A24-P30-25PPM	20000	24	30	1.5	<25
20A24-N30-25PPM	20000	24	30	1.5	<25
20A24-P30-25PPM-F-M	20000	24	30	1.5	<25
20A24-N30-25PPM-F-M	20000	24	30	1.5	<25
20A24-P30-25PPM-F-M-C	20000	24	30	1.5	<25
20A24-N30-25PPM-F-M-C	20000	24	30	1.5	<25
20A24-P30-M	20000	24	30	1.5	<50
20A24-N30-M	20000	24	30	1.5	<50
20A24-P30-C	20000	24	30	1.5	<50
20A24-N30-C	20000	24	30	1.5	<50
20A24-P30-E	20000	24	30	1.5	<50
20A24-N30-E	20000	24	30	1.5	<50
20A24-P30-H	20000	24	30	1.5	<50
20A24-N30-H	20000	24	30	1.5	<50
20A24-P30-WS	20000	24	30	1.5	<50
20A24-N30-WS	20000	24	30	1.5	<50
20A24-P30-AP	20000	24	30	1.5	<50
20A24-N30-AP	20000	24	30	1.5	<50

25A12-x4	20000	12	4	0.16	<50
25A12-P4	20000	12	4	0.16	<50
25A12-N4	20000	12	4	0.16	<50
25A12-P4-F-M	20000	12	4	0.16	<50
25A12-N4-F-M	20000	12	4	0.16	<50
25A12-P4-F-M-C	20000	12	4	0.16	<50
25A12-N4-F-M-C	20000	12	4	0.16	<50
25A12-P4-25PPM	20000	12	4	0.16	<25
25A12-N4-25PPM	20000	12	4	0.16	<25
25A12-P4-25PPM-F-M	20000	12	4	0.16	<25
25A12-N4-25PPM-F-M	20000	12	4	0.16	<25
25A12-P4-25PPM-F-M-C	20000	12	4	0.16	<25
25A12-N4-25PPM-F-M-C	20000	12	4	0.16	<25
25A12-P4-M	20000	12	4	0.16	<50
25A12-N4-M	20000	12	4	0.16	<50
25A12-P4-C	20000	12	4	0.16	<50
25A12-N4-C	20000	12	4	0.16	<50
25A12-P4-E	20000	12	4	0.16	<50
25A12-N4-E	20000	12	4	0.16	<50
25A12-P4-H	20000	12	4	0.16	<50
25A12-N4-H	20000	12	4	0.16	<50
25A12-P4-WS	20000	12	4	0.16	<50
25A12-N4-WS	20000	12	4	0.16	<50
25A12-P4-AP	20000	12	4	0.16	<50
25A12-N4-AP	20000	12	4	0.16	<50

25A24-x15	20000	24	15	0.6	<50
25A24-P15	20000	24	15	0.6	<50
25A24-N15	20000	24	15	0.6	<50
25A24-P15-F-M	20000	24	15	0.6	<50
25A24-N15-F-M	20000	24	15	0.6	<50
25A24-P15-F-M-C	20000	24	15	0.6	<50
25A24-N15-F-M-C	20000	24	15	0.6	<50
25A24-P15-25PPM	20000	24	15	0.6	<25
25A24-N15-25PPM	20000	24	15	0.6	<25
25A24-P15-25PPM-F-M	20000	24	15	0.6	<25
25A24-N15-25PPM-F-M	20000	24	15	0.6	<25
25A24-P15-25PPM-F-M-C	20000	24	15	0.6	<25
25A24-N15-25PPM-F-M-C	20000	24	15	0.6	<25
25A24-P15-M	20000	24	15	0.6	<50
25A24-N15-M	20000	24	15	0.6	<50
25A24-P15-C	20000	24	15	0.6	<50
25A24-N15-C	20000	24	15	0.6	<50
25A24-P15-E	20000	24	15	0.6	<50
25A24-N15-E	20000	24	15	0.6	<50
25A24-P15-H	20000	24	15	0.6	<50
25A24-N15-H	20000	24	15	0.6	<50
25A24-P15-WS	20000	24	15	0.6	<50
25A24-N15-WS	20000	24	15	0.6	<50
25A24-P15-AP	20000	24	15	0.6	<50
25A24-N15-AP	20000	24	15	0.6	<50

25A24-x30	20000	24	30	1.2	<50
25A24-P30	20000	24	30	1.2	<50
25A24-N30	20000	24	30	1.2	<50
25A24-P30-F-M	20000	24	30	1.2	<50
25A24-N30-F-M	20000	24	30	1.2	<50
25A24-P30-F-M-C	20000	24	30	1.2	<50
25A24-N30-F-M-C	20000	24	30	1.2	<50
25A24-P30-25PPM	20000	24	30	1.2	<25
25A24-N30-25PPM	20000	24	30	1.2	<25
25A24-P30-25PPM-F-M	20000	24	30	1.2	<25
25A24-N30-25PPM-F-M	20000	24	30	1.2	<25
25A24-P30-25PPM-F-M-C	20000	24	30	1.2	<25
25A24-N30-25PPM-F-M-C	20000	24	30	1.2	<25
25A24-P30-M	20000	24	30	1.2	<50
25A24-N30-M	20000	24	30	1.2	<50
25A24-P30-C	20000	24	30	1.2	<50
25A24-N30-C	20000	24	30	1.2	<50
25A24-P30-E	20000	24	30	1.2	<50
25A24-N30-E	20000	24	30	1.2	<50
25A24-P30-H	20000	24	30	1.2	<50
25A24-N30-H	20000	24	30	1.2	<50
25A24-P30-WS	20000	24	30	1.2	<50
25A24-N30-WS	20000	24	30	1.2	<50
25A24-P30-AP	20000	24	30	1.2	<50
25A24-N30-AP	20000	24	30	1.2	<50

30A12-x4	30000	12	4	0.13	<50
30A12-P4	30000	12	4	0.13	<50
30A12-N4	30000	12	4	0.13	<50
30A12-P4-M	30000	12	4	0.13	<50
30A12-N4-M	30000	12	4	0.13	<50
30A12-P4-C	30000	12	4	0.13	<50
30A12-N4-C	30000	12	4	0.13	<50
30A12-P4-E	30000	12	4	0.13	<50
30A12-N4-E	30000	12	4	0.13	<50
30A12-P4-H	30000	12	4	0.13	<50
30A12-N4-H	30000	12	4	0.13	<50
30A12-P4-AS	30000	12	4	0.13	<50
30A12-N4-AS	30000	12	4	0.13	<50
30A12-P4-AP	30000	12	4	0.13	<50
30A12-N4-AP	30000	12	4	0.13	<50
30A12-P4-25PPM	30000	12	4	0.13	<25
30A12-N4-25PPM	30000	12	4	0.13	<25
30A12-P4-F-M	30000	12	4	0.13	<50
30A12-N4-F-M	30000	12	4	0.13	<50

30A24-x15	30000	24	15	0.5	<50
30A24-P15	30000	24	15	0.5	<50
30A24-N15	30000	24	15	0.5	<50
30A24-P15-M	30000	24	15	0.5	<50
30A24-N15-M	30000	24	15	0.5	<50
30A24-P15-C	30000	24	15	0.5	<50
30A24-N15-C	30000	24	15	0.5	<50
30A24-P15-E	30000	24	15	0.5	<50
30A24-N15-E	30000	24	15	0.5	<50
30A24-P15-H	30000	24	15	0.5	<50
30A24-N15-H	30000	24	15	0.5	<50
30A24-P15-AS	30000	24	15	0.5	<50
30A24-N15-AS	30000	24	15	0.5	<50
30A24-P15-AP	30000	24	15	0.5	<50
30A24-N15-AP	30000	24	15	0.5	<50
30A24-P15-25PPM	30000	24	15	0.5	<25
30A24-N15-25PPM	30000	24	15	0.5	<25
30A24-P15-F-M	30000	24	15	0.5	<50
30A24-N15-F-M	30000	24	15	0.5	<50

30A24-x30	30000	24	30	1	<50
30A24-P30	30000	24	30	1	<50
30A24-N30	30000	24	30	1	<50
30A24-P30-M	30000	24	30	1	<50
30A24-N30-M	30000	24	30	1	<50
30A24-P30-C	30000	24	30	1	<50
30A24-N30-C	30000	24	30	1	<50
30A24-P30-E	30000	24	30	1	<50
30A24-N30-E	30000	24	30	1	<50
30A24-P30-H	30000	24	30	1	<50
30A24-N30-H	30000	24	30	1	<50
30A24-P30-AS	30000	24	30	1	<50
30A24-N30-AS	30000	24	30	1	<50
30A24-P30-AP	30000	24	30	1	<50
30A24-N30-AP	30000	24	30	1	<50
30A24-P30-25PPM	30000	24	30	1	<25
30A24-N30-25PPM	30000	24	30	1	<25
30A24-P30-F-M	30000	24	30	1	<50
30A24-N30-F-M	30000	24	30	1	<50

35A12-x4	35000	12	4	0.11	<50
35A12-P4	35000	12	4	0.11	<50
35A12-N4	35000	12	4	0.11	<50
35A12-P4-M	35000	12	4	0.11	<50
35A12-N4-M	35000	12	4	0.11	<50
35A12-P4-C	35000	12	4	0.11	<50
35A12-N4-C	35000	12	4	0.11	<50
35A12-P4-E	35000	12	4	0.11	<50
35A12-N4-E	35000	12	4	0.11	<50
35A12-P4-H	35000	12	4	0.11	<50
35A12-N4-H	35000	12	4	0.11	<50
35A12-P4-AS	35000	12	4	0.11	<50
35A12-N4-AS	35000	12	4	0.11	<50
35A12-P4-AP	35000	12	4	0.11	<50
35A12-N4-AP	35000	12	4	0.11	<50
35A12-P4-25PPM	35000	12	4	0.11	<25
35A12-N4-25PPM	35000	12	4	0.11	<25
35A12-P4-F-M	35000	12	4	0.11	<50
35A12-N4-F-M	35000	12	4	0.11	<50

35A24-x15	35000	24	15	0.42	<50
35A24-P15	35000	24	15	0.42	<50
35A24-N15	35000	24	15	0.42	<50
35A24-P15-M	35000	24	15	0.42	<50
35A24-N15-M	35000	24	15	0.42	<50
35A24-P15-C	35000	24	15	0.42	<50
35A24-N15-C	35000	24	15	0.42	<50
35A24-P15-E	35000	24	15	0.42	<50
35A24-N15-E	35000	24	15	0.42	<50
35A24-P15-H	35000	24	15	0.42	<50
35A24-N15-H	35000	24	15	0.42	<50
35A24-P15-AS	35000	24	15	0.42	<50
35A24-N15-AS	35000	24	15	0.42	<50
35A24-P15-AP	35000	24	15	0.42	<50
35A24-N15-AP	35000	24	15	0.42	<50
35A24-P15-25PPM	35000	24	15	0.42	<25
35A24-N15-25PPM	35000	24	15	0.42	<25
35A24-P15-F-M	35000	24	15	0.42	<50
35A24-N15-F-M	35000	24	15	0.42	<50

35A24-x30	35000	24	30	0.86	<50
35A24-P30	35000	24	30	0.86	<50
35A24-N30	35000	24	30	0.86	<50
35A24-P30-M	35000	24	30	0.86	<50
35A24-N30-M	35000	24	30	0.86	<50
35A24-P30-C	35000	24	30	0.86	<50
35A24-N30-C	35000	24	30	0.86	<50
35A24-P30-E	35000	24	30	0.86	<50
35A24-N30-E	35000	24	30	0.86	<50
35A24-P30-H	35000	24	30	0.86	<50
35A24-N30-H	35000	24	30	0.86	<50
35A24-P30-AS	35000	24	30	0.86	<50
35A24-N30-AS	35000	24	30	0.86	<50
35A24-P30-AP	35000	24	30	0.86	<50
35A24-N30-AP	35000	24	30	0.86	<50
35A24-P30-25PPM	35000	24	30	0.86	<25
35A24-N30-25PPM	35000	24	30	0.86	<25
35A24-P30-F-M	35000	24	30	0.86	<50
35A24-N30-F-M	35000	24	30	0.86	<50

40A12-x4	40000	12	4	0.1	<50
40A12-P4	40000	12	4	0.1	<50
40A12-N4	40000	12	4	0.1	<50
40A12-P4-M	40000	12	4	0.1	<50
40A12-N4-M	40000	12	4	0.1	<50
40A12-P4-C	40000	12	4	0.1	<50
40A12-N4-C	40000	12	4	0.1	<50
40A12-P4-E	40000	12	4	0.1	<50
40A12-N4-E	40000	12	4	0.1	<50
40A12-P4-H	40000	12	4	0.1	<50
40A12-N4-H	40000	12	4	0.1	<50
40A12-P4-AS	40000	12	4	0.1	<50
40A12-N4-AS	40000	12	4	0.1	<50
40A12-P4-AP	40000	12	4	0.1	<50
40A12-N4-AP	40000	12	4	0.1	<50
40A12-P4-25PPM	40000	12	4	0.1	<25
40A12-N4-25PPM	40000	12	4	0.1	<25
40A12-P4-F-M	40000	12	4	0.1	<50
40A12-N4-F-M	40000	12	4	0.1	<50

40A24-x15	40000	24	15	0.37	<50
40A24-P15	40000	24	15	0.37	<50
40A24-N15	40000	24	15	0.37	<50
40A24-P15-M	40000	24	15	0.37	<50
40A24-N15-M	40000	24	15	0.37	<50
40A24-P15-C	40000	24	15	0.37	<50
40A24-N15-C	40000	24	15	0.37	<50
40A24-P15-E	40000	24	15	0.37	<50
40A24-N15-E	40000	24	15	0.37	<50
40A24-P15-H	40000	24	15	0.37	<50
40A24-N15-H	40000	24	15	0.37	<50
40A24-P15-AS	40000	24	15	0.37	<50
40A24-N15-AS	40000	24	15	0.37	<50
40A24-P15-AP	40000	24	15	0.37	<50
40A24-N15-AP	40000	24	15	0.37	<50
40A24-P15-25PPM	40000	24	15	0.37	<25
40A24-N15-25PPM	40000	24	15	0.37	<25
40A24-P15-F-M	40000	24	15	0.37	<50
40A24-N15-F-M	40000	24	15	0.37	<50

40A24-x30	40000	24	30	0.75	<50
40A24-P30	40000	24	30	0.75	<50
40A24-N30	40000	24	30	0.75	<50
40A24-P30-M	40000	24	30	0.75	<50
40A24-N30-M	40000	24	30	0.75	<50
40A24-P30-C	40000	24	30	0.75	<50
40A24-N30-C	40000	24	30	0.75	<50
40A24-P30-E	40000	24	30	0.75	<50
40A24-N30-E	40000	24	30	0.75	<50
40A24-P30-H	40000	24	30	0.75	<50
40A24-N30-H	40000	24	30	0.75	<50
40A24-P30-AS	40000	24	30	0.75	<50
40A24-N30-AS	40000	24	30	0.75	<50
40A24-P30-AP	40000	24	30	0.75	<50
40A24-N30-AP	40000	24	30	0.75	<50
40A24-P30-25PPM	40000	24	30	0.75	<25
40A24-N30-25PPM	40000	24	30	0.75	<25
40A24-P30-F-M	40000	24	30	0.75	<50
40A24-N30-F-M	40000	24	30	0.75	<50

Data Sheets

Technical Information

A Series Datasheet	10A Series Datasheet	15A Series Datasheet
20A-25A Series Datasheet	30A-40A Series Datasheet	F Option Ripple Stripper
-15 & -I10 Interface Interface Option	Interfacing with HVPS Models A,AA,C,10A-25A,30A-40A, and F Series	Polarity Reversing Configurations
Thermals Management of UltraVolt HVPSs	HVPS Output-Current Monitor	Performing Isolation Tests on High Voltage Power Supplies
Parallel Operation of the HV Power Supplies	Electrical Termination & Mounting Configurations	Protection of High-Voltage Power Supplies in Single and Multiple HVPS Applications

A Series - High Voltage Power Supply

High Voltage Products. High Voltage Experts.

News

Events

Contact Us
