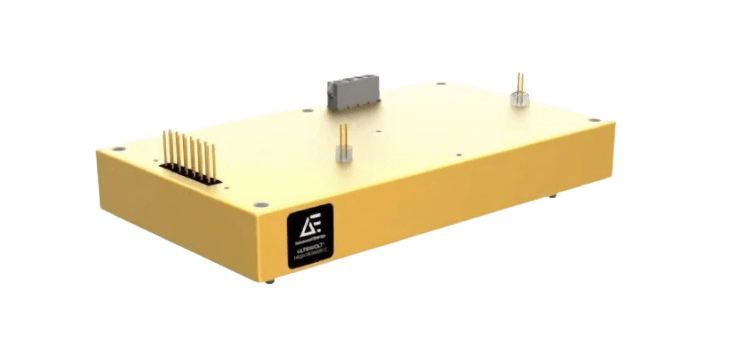

High Power C Series - High Voltage Power Supply

The High Power C series features 17 highly efficient models that range from 125 to 60,000 VDC. They are available in single–output positive or negative polarities. Benefit from up to 250 W of fast-rise charging power with less than 1% overshoot from a 24 VDC input. Easily control and monitor high voltage output and current from one of the several available analog interfaces. The High Power C series is a smart choice for applications needing greater than 30 W of high power density.

Typical Applications

Capacitive charging and pulsed power applications
High potential testing and Electrostatic Discharge (ESD)
Automated Test Equipment (ATE)
Lasers and opto-electronics
Ultrasonic pulse generators

Products

Data Sheets

Technical Information

Products


Part Number	Max. Voltage (Vdc)	Input Voltage (Vdc)	Max. Power (W)	Current (mA)	Ripple (%)	Temp. Coefficient (ppm per °C)
1/8C24-x60	125	24	60	480	<1.0	<50
1/8C24-P60-I5	125	24	60	480	<1.0	<50
1/8C24-N60-I5	125	24	60	480	<1.0	<50
1/8C24-P60-I10	125	24	60	480	<1.0	<50
1/8C24-N60-I10	125	24	60	480	<1.0	<50
1/8C24-P60-H	125	24	60	480	<1.0	<50
1/8C24-N60-H	125	24	60	480	<1.0	<50
1/8C24-P60-Z11	125	24	60	480	<1.0	<50
1/8C24-N60-Z11	125	24	60	480	<1.0	<50
1/8C24-P60-DA	125	24	60	480	<1.0	<50
1/8C24-N60-DA	125	24	60	480	<1.0	<50
1/8C24-P60-DAR	125	24	60	480	<1.0	<50
1/8C24-N60-DAR	125	24	60	480	<1.0	<50

1/8C24-x125	125	24	125	1000	<1.0	<50
1/8C24-P125-I5	125	24	125	1000	<1.0	<50
1/8C24-N125-I5	125	24	125	1000	<1.0	<50
1/8C24-P125-I10	125	24	125	1000	<1.0	<50
1/8C24-N125-I10	125	24	125	1000	<1.0	<50
1/8C24-P125-H	125	24	125	1000	<1.0	<50
1/8C24-N125-H	125	24	125	1000	<1.0	<50
1/8C24-P125-Z11	125	24	125	1000	<1.0	<50
1/8C24-N125-Z11	125	24	125	1000	<1.0	<50
1/8C24-P125-DA	125	24	125	1000	<1.0	<50
1/8C24-N125-DA	125	24	125	1000	<1.0	<50
1/8C24-P125-DAR	125	24	125	1000	<1.0	<50
1/8C24-N125-DAR	125	24	125	1000	<1.0	<50

1/8C24-x250	125	24	250	2000	<1.0	<50
1/8C24-P250-I5	125	24	250	2000	<1.0	<50
1/8C24-N250-I5	125	24	250	2000	<1.0	<50
1/8C24-P250-I10	125	24	250	2000	<1.0	<50
1/8C24-N250-I10	125	24	250	2000	<1.0	<50
1/8C24-P250-H	125	24	250	2000	<1.0	<50
1/8C24-N250-H	125	24	250	2000	<1.0	<50
1/8C24-P250-Z11	125	24	250	2000	<1.0	<50
1/8C24-N250-Z11	125	24	250	2000	<1.0	<50
1/8C24-P250-DA	125	24	250	2000	<1.0	<50
1/8C24-N250-DA	125	24	250	2000	<1.0	<50
1/8C24-P250-DAR	125	24	250	2000	<1.0	<50
1/8C24-N250-DAR	125	24	250	2000	<1.0	<50

1/4C24-x60	250	24	60	240	<1.0	<50
1/4C24-P60-I5	250	24	60	240	<1.0	<50
1/4C24-N60-I5	250	24	60	240	<1.0	<50
1/4C24-P60-I10	250	24	60	240	<1.0	<50
1/4C24-N60-I10	250	24	60	240	<1.0	<50
1/4C24-P60-H	250	24	60	240	<1.0	<50
1/4C24-N60-H	250	24	60	240	<1.0	<50
1/4C24-P60-Z11	250	24	60	240	<1.0	<50
1/4C24-N60-Z11	250	24	60	240	<1.0	<50
1/4C24-P60-DA	250	24	60	240	<1.0	<50
1/4C24-N60-DA	250	24	60	240	<1.0	<50
1/4C24-P60-DAR	250	24	60	240	<1.0	<50
1/4C24-N60-DAR	250	24	60	240	<1.0	<50

1/4C24-x125	250	24	125	500	<1.0	<50
1/4C24-P125-I5	250	24	125	500	<1.0	<50
1/4C24-N125-I5	250	24	125	500	<1.0	<50
1/4C24-P125-I10	250	24	125	500	<1.0	<50
1/4C24-N125-I10	250	24	125	500	<1.0	<50
1/4C24-P125-H	250	24	125	500	<1.0	<50
1/4C24-N125-H	250	24	125	500	<1.0	<50
1/4C24-P125-Z11	250	24	125	500	<1.0	<50
1/4C24-N125-Z11	250	24	125	500	<1.0	<50
1/4C24-P125-DA	250	24	125	500	<1.0	<50
1/4C24-N125-DA	250	24	125	500	<1.0	<50
1/4C24-P125-DAR	250	24	125	500	<1.0	<50
1/4C24-N125-DAR	250	24	125	500	<1.0	<50

1/4C24-x250	250	24	250	1000	<1.0	<50
1/4C24-P250-I5	250	24	250	1000	<1.0	<50
1/4C24-N250-I5	250	24	250	1000	<1.0	<50
1/4C24-P250-I10	250	24	250	1000	<1.0	<50
1/4C24-N250-I10	250	24	250	1000	<1.0	<50
1/4C24-P250-H	250	24	250	1000	<1.0	<50
1/4C24-N250-H	250	24	250	1000	<1.0	<50
1/4C24-P250-Z11	250	24	250	1000	<1.0	<50
1/4C24-N250-Z11	250	24	250	1000	<1.0	<50
1/4C24-P250-DA	250	24	250	1000	<1.0	<50
1/4C24-N250-DA	250	24	250	1000	<1.0	<50
1/4C24-P250-DAR	250	24	250	1000	<1.0	<50
1/4C24-N250-DAR	250	24	250	1000	<1.0	<50

1/2C24-x60	500	24	60	120	<1.0	<50
1/2C24-P60-I5	500	24	60	120	<1.0	<50
1/2C24-N60-I5	500	24	60	120	<1.0	<50
1/2C24-P60-I10	500	24	60	120	<1.0	<50
1/2C24-N60-I10	500	24	60	120	<1.0	<50
1/2C24-P60-H	500	24	60	120	<1.0	<50
1/2C24-N60-H	500	24	60	120	<1.0	<50
1/2C24-P60-Z11	500	24	60	120	<1.0	<50
1/2C24-N60-Z11	500	24	60	120	<1.0	<50
1/2C24-P60-DA	500	24	60	120	<1.0	<50
1/2C24-N60-DA	500	24	60	120	<1.0	<50
1/2C24-P60-DAR	500	24	60	120	<1.0	<50
1/2C24-N60-DAR	500	24	60	120	<1.0	<50

1/2C24-x125	500	24	125	250	<1.0	<50
1/2C24-P125-I5	500	24	125	250	<1.0	<50
1/2C24-N125-I5	500	24	125	250	<1.0	<50
1/2C24-P125-I10	500	24	125	250	<1.0	<50
1/2C24-N125-I10	500	24	125	250	<1.0	<50
1/2C24-P125-H	500	24	125	250	<1.0	<50
1/2C24-N125-H	500	24	125	250	<1.0	<50
1/2C24-P125-Z11	500	24	125	250	<1.0	<50
1/2C24-N125-Z11	500	24	125	250	<1.0	<50
1/2C24-P125-DA	500	24	125	250	<1.0	<50
1/2C24-N125-DA	500	24	125	250	<1.0	<50
1/2C24-P125-DAR	500	24	125	250	<1.0	<50
1/2C24-N125-DAR	500	24	125	250	<1.0	<50

1/2C24-x250	500	24	250	500	<1.0	<50
1/2C24-P250-I5	500	24	250	500	<1.0	<50
1/2C24-N250-I5	500	24	250	500	<1.0	<50
1/2C24-P250-I10	500	24	250	500	<1.0	<50
1/2C24-N250-I10	500	24	250	500	<1.0	<50
1/2C24-P250-H	500	24	250	500	<1.0	<50
1/2C24-N250-H	500	24	250	500	<1.0	<50
1/2C24-P250-Z11	500	24	250	500	<1.0	<50
1/2C24-N250-Z11	500	24	250	500	<1.0	<50
1/2C24-P250-DA	500	24	250	500	<1.0	<50
1/2C24-N250-DA	500	24	250	500	<1.0	<50
1/2C24-P250-DAR	500	24	250	500	<1.0	<50
1/2C24-N250-DAR	500	24	250	500	<1.0	<50

1C24-x60	1000	24	60	60	<1.0	<50
1C24-P60-I5	1000	24	60	60	<1.0	<50
1C24-N60-I5	1000	24	60	60	<1.0	<50
1C24-P60-I10	1000	24	60	60	<1.0	<50
1C24-N60-I10	1000	24	60	60	<1.0	<50
1C24-P60-H	1000	24	60	60	<1.0	<50
1C24-N60-H	1000	24	60	60	<1.0	<50
1C24-P60-Z11	1000	24	60	60	<1.0	<50
1C24-N60-Z11	1000	24	60	60	<1.0	<50
1C24-P60-DA	1000	24	60	60	<1.0	<50
1C24-N60-DA	1000	24	60	60	<1.0	<50
1C24-P60-DAR	1000	24	60	60	<1.0	<50
1C24-N60-DAR	1000	24	60	60	<1.0	<50

1C24-x125	1000	24	125	125	<1.0	<50
1C24-P125-I5	1000	24	125	125	<1.0	<50
1C24-N125-I5	1000	24	125	125	<1.0	<50
1C24-P125-I10	1000	24	125	125	<1.0	<50
1C24-N125-I10	1000	24	125	125	<1.0	<50
1C24-P125-H	1000	24	125	125	<1.0	<50
1C24-N125-H	1000	24	125	125	<1.0	<50
1C24-P125-Z11	1000	24	125	125	<1.0	<50
1C24-N125-Z11	1000	24	125	125	<1.0	<50
1C24-P125-DA	1000	24	125	125	<1.0	<50
1C24-N125-DA	1000	24	125	125	<1.0	<50
1C24-P125-DAR	1000	24	125	125	<1.0	<50
1C24-N125-DAR	1000	24	125	125	<1.0	<50

1C24-x250	1000	24	250	250	<1.0	<50
1C24-P250-I5	1000	24	250	250	<1.0	<50
1C24-N250-I5	1000	24	250	250	<1.0	<50
1C24-P250-I10	1000	24	250	250	<1.0	<50
1C24-N250-I10	1000	24	250	250	<1.0	<50
1C24-P250-H	1000	24	250	250	<1.0	<50
1C24-N250-H	1000	24	250	250	<1.0	<50
1C24-P250-Z11	1000	24	250	250	<1.0	<50
1C24-N250-Z11	1000	24	250	250	<1.0	<50
1C24-P250-DA	1000	24	250	250	<1.0	<50
1C24-N250-DA	1000	24	250	250	<1.0	<50
1C24-P250-DAR	1000	24	250	250	<1.0	<50
1C24-N250-DAR	1000	24	250	250	<1.0	<50

2C24-x60	2000	24	60	30	<1.0	<50
2C24-P60-I5	2000	24	60	30	<1.0	<50
2C24-N60-I5	2000	24	60	30	<1.0	<50
2C24-P60-I10	2000	24	60	30	<1.0	<50
2C24-N60-I10	2000	24	60	30	<1.0	<50
2C24-P60-H	2000	24	60	30	<1.0	<50
2C24-N60-H	2000	24	60	30	<1.0	<50
2C24-P60-Z11	2000	24	60	30	<1.0	<50
2C24-N60-Z11	2000	24	60	30	<1.0	<50
2C24-P60-DA	2000	24	60	30	<1.0	<50
2C24-N60-DA	2000	24	60	30	<1.0	<50
2C24-P60-DAR	2000	24	60	30	<1.0	<50
2C24-N60-DAR	2000	24	60	30	<1.0	<50

2C24-x125	2000	24	125	62	<1.0	<50
2C24-P125-I5	2000	24	125	62	<1.0	<50
2C24-N125-I5	2000	24	125	62	<1.0	<50
2C24-P125-I10	2000	24	125	62	<1.0	<50
2C24-N125-I10	2000	24	125	62	<1.0	<50
2C24-P125-H	2000	24	125	62	<1.0	<50
2C24-N125-H	2000	24	125	62	<1.0	<50
2C24-P125-Z11	2000	24	125	62	<1.0	<50
2C24-N125-Z11	2000	24	125	62	<1.0	<50
2C24-P125-DA	2000	24	125	62	<1.0	<50
2C24-N125-DA	2000	24	125	62	<1.0	<50
2C24-P125-DAR	2000	24	125	62	<1.0	<50
2C24-N125-DAR	2000	24	125	62	<1.0	<50

2C24-x250	2000	24	250	125	<1.0	<50
2C24-P250-I5	2000	24	250	125	<1.0	<50
2C24-N250-I5	2000	24	250	125	<1.0	<50
2C24-P250-I10	2000	24	250	125	<1.0	<50
2C24-N250-I10	2000	24	250	125	<1.0	<50
2C24-P250-H	2000	24	250	125	<1.0	<50
2C24-N250-H	2000	24	250	125	<1.0	<50
2C24-P250-Z11	2000	24	250	125	<1.0	<50
2C24-N250-Z11	2000	24	250	125	<1.0	<50
2C24-P250-DA	2000	24	250	125	<1.0	<50
2C24-N250-DA	2000	24	250	125	<1.0	<50
2C24-P250-DAR	2000	24	250	125	<1.0	<50
2C24-N250-DAR	2000	24	250	125	<1.0	<50

4C24-x60	4000	24	60	15	<1.0	<50
4C24-P60-I5	4000	24	60	15	<1.0	<50
4C24-N60-I5	4000	24	60	15	<1.0	<50
4C24-P60-I10	4000	24	60	15	<1.0	<50
4C24-N60-I10	4000	24	60	15	<1.0	<50
4C24-P60-H	4000	24	60	15	<1.0	<50
4C24-N60-H	4000	24	60	15	<1.0	<50
4C24-P60-Z11	4000	24	60	15	<1.0	<50
4C24-N60-Z11	4000	24	60	15	<1.0	<50
4C24-P60-DA	4000	24	60	15	<1.0	<50
4C24-N60-DA	4000	24	60	15	<1.0	<50
4C24-P60-DAR	4000	24	60	15	<1.0	<50
4C24-N60-DAR	4000	24	60	15	<1.0	<50

4C24-x125	4000	24	125	31	<1.0	<50
4C24-P125-I5	4000	24	125	31	<1.0	<50
4C24-N125-I5	4000	24	125	31	<1.0	<50
4C24-P125-I10	4000	24	125	31	<1.0	<50
4C24-N125-I10	4000	24	125	31	<1.0	<50
4C24-P125-H	4000	24	125	31	<1.0	<50
4C24-N125-H	4000	24	125	31	<1.0	<50
4C24-P125-Z11	4000	24	125	31	<1.0	<50
4C24-N125-Z11	4000	24	125	31	<1.0	<50
4C24-P125-DA	4000	24	125	31	<1.0	<50
4C24-N125-DA	4000	24	125	31	<1.0	<50
4C24-P125-DAR	4000	24	125	31	<1.0	<50
4C24-N125-DAR	4000	24	125	31	<1.0	<50

4C24-x250	4000	24	250	62	<1.0	<50
4C24-P250-I5	4000	24	250	62	<1.0	<50
4C24-N250-I5	4000	24	250	62	<1.0	<50
4C24-P250-I10	4000	24	250	62	<1.0	<50
4C24-N250-I10	4000	24	250	62	<1.0	<50
4C24-P250-H	4000	24	250	62	<1.0	<50
4C24-N250-H	4000	24	250	62	<1.0	<50
4C24-P250-Z11	4000	24	250	62	<1.0	<50
4C24-N250-Z11	4000	24	250	62	<1.0	<50
4C24-P250-DA	4000	24	250	62	<1.0	<50
4C24-N250-DA	4000	24	250	62	<1.0	<50
4C24-P250-DAR	4000	24	250	62	<1.0	<50
4C24-N250-DAR	4000	24	250	62	<1.0	<50

6C24-x60	6000	24	60	10	<1.0	<50
6C24-P60-I5	6000	24	60	10	<1.0	<50
6C24-N60-I5	6000	24	60	10	<1.0	<50
6C24-P60-I10	6000	24	60	10	<1.0	<50
6C24-N60-I10	6000	24	60	10	<1.0	<50
6C24-P60-H	6000	24	60	10	<1.0	<50
6C24-N60-H	6000	24	60	10	<1.0	<50
6C24-P60-Z11	6000	24	60	10	<1.0	<50
6C24-N60-Z11	6000	24	60	10	<1.0	<50
6C24-P60-DA	6000	24	60	10	<1.0	<50
6C24-N60-DA	6000	24	60	10	<1.0	<50
6C24-P60-DAR	6000	24	60	10	<1.0	<50
6C24-N60-DAR	6000	24	60	10	<1.0	<50

6C24-x125	6000	24	125	21	<1.0	<50
6C24-P125-I5	6000	24	125	21	<1.0	<50
6C24-N125-I5	6000	24	125	21	<1.0	<50
6C24-P125-I10	6000	24	125	21	<1.0	<50
6C24-N125-I10	6000	24	125	21	<1.0	<50
6C24-P125-H	6000	24	125	21	<1.0	<50
6C24-N125-H	6000	24	125	21	<1.0	<50
6C24-P125-Z11	6000	24	125	21	<1.0	<50
6C24-N125-Z11	6000	24	125	21	<1.0	<50
6C24-P125-DA	6000	24	125	21	<1.0	<50
6C24-N125-DA	6000	24	125	21	<1.0	<50
6C24-P125-DAR	6000	24	125	21	<1.0	<50
6C24-N125-DAR	6000	24	125	21	<1.0	<50

6C24-x250	6000	24	250	42	<1.0	<50
6C24-P250-I5	6000	24	250	42	<1.0	<50
6C24-N250-I5	6000	24	250	42	<1.0	<50
6C24-P250-I10	6000	24	250	42	<1.0	<50
6C24-N250-I10	6000	24	250	42	<1.0	<50
6C24-P250-H	6000	24	250	42	<1.0	<50
6C24-N250-H	6000	24	250	42	<1.0	<50
6C24-P250-Z11	6000	24	250	42	<1.0	<50
6C24-N250-Z11	6000	24	250	42	<1.0	<50
6C24-P250-DA	6000	24	250	42	<1.0	<50
6C24-N250-DA	6000	24	250	42	<1.0	<50
6C24-P250-DAR	6000	24	250	42	<1.0	<50
6C24-N250-DAR	6000	24	250	42	<1.0	<50

8C24-x60	8000	24	60	7.5	<1.0	<50
8C24-P60-I5	8000	24	60	7.5	<1.0	<50
8C24-N60-I5	8000	24	60	7.5	<1.0	<50
8C24-P60-I10	8000	24	60	7.5	<1.0	<50
8C24-N60-I10	8000	24	60	7.5	<1.0	<50
8C24-P60-AD	8000	24	60	7.5	<1.0	<50
8C24-N60-AD	8000	24	60	7.5	<1.0	<50
8C24-P60-AQ	8000	24	60	7.5	<1.0	<50
8C24-N60-AQ	8000	24	60	7.5	<1.0	<50
8C24-P60-H	8000	24	60	7.5	<1.0	<50
8C24-N60-H	8000	24	60	7.5	<1.0	<50
8C24-P60-Z11	8000	24	60	7.5	<1.0	<50
8C24-N60-Z11	8000	24	60	7.5	<1.0	<50
8C24-P60-DA	8000	24	60	7.5	<1.0	<50
8C24-N60-DA	8000	24	60	7.5	<1.0	<50
8C24-P60-DAR	8000	24	60	7.5	<1.0	<50
8C24-N60-DAR	8000	24	60	7.5	<1.0	<50

8C24-x125	8000	24	125	15.5	<1.0	<50
8C24-P125-I5	8000	24	125	15.5	<1.0	<50
8C24-N125-I5	8000	24	125	15.5	<1.0	<50
8C24-P125-I10	8000	24	125	15.5	<1.0	<50
8C24-N125-I10	8000	24	125	15.5	<1.0	<50
8C24-P125-AD	8000	24	125	15.5	<1.0	<50
8C24-N125-AD	8000	24	125	15.5	<1.0	<50
8C24-P125-AQ	8000	24	125	15.5	<1.0	<50
8C24-N125-AQ	8000	24	125	15.5	<1.0	<50
8C24-P125-H	8000	24	125	15.5	<1.0	<50
8C24-N125-H	8000	24	125	15.5	<1.0	<50
8C24-P125-Z11	8000	24	125	15.5	<1.0	<50
8C24-N125-Z11	8000	24	125	15.5	<1.0	<50
8C24-P125-DA	8000	24	125	15.5	<1.0	<50
8C24-N125-DA	8000	24	125	15.5	<1.0	<50
8C24-P125-DAR	8000	24	125	15.5	<1.0	<50
8C24-N125-DAR	8000	24	125	15.5	<1.0	<50

8C24-x250	8000	24	250	31.2	<1.0	<50
8C24-P250-I5	8000	24	250	31.2	<1.0	<50
8C24-N250-I5	8000	24	250	31.2	<1.0	<50
8C24-P250-I10	8000	24	250	31.2	<1.0	<50
8C24-N250-I10	8000	24	250	31.2	<1.0	<50
8C24-P250-AD	8000	24	250	31.2	<1.0	<50
8C24-N250-AD	8000	24	250	31.2	<1.0	<50
8C24-P250-AQ	8000	24	250	31.2	<1.0	<50
8C24-N250-AQ	8000	24	250	31.2	<1.0	<50
8C24-P250-H	8000	24	250	31.2	<1.0	<50
8C24-N250-H	8000	24	250	31.2	<1.0	<50
8C24-P250-Z11	8000	24	250	31.2	<1.0	<50
8C24-N250-Z11	8000	24	250	31.2	<1.0	<50
8C24-P250-DA	8000	24	250	31.2	<1.0	<50
8C24-N250-DA	8000	24	250	31.2	<1.0	<50
8C24-P250-DAR	8000	24	250	31.2	<1.0	<50
8C24-N250-DAR	8000	24	250	31.2	<1.0	<50

10C24-x60	10000	24	60	6	<1.0	<50
10C24-P60-I5	10000	24	60	6	<1.0	<50
10C24-N60-I5	10000	24	60	6	<1.0	<50
10C24-P60-I10	10000	24	60	6	<1.0	<50
10C24-N60-I10	10000	24	60	6	<1.0	<50
10C24-P60-AD	10000	24	60	6	<1.0	<50
10C24-N60-AD	10000	24	60	6	<1.0	<50
10C24-P60-AQ	10000	24	60	6	<1.0	<50
10C24-N60-AQ	10000	24	60	6	<1.0	<50
10C24-P60-H	10000	24	60	6	<1.0	<50
10C24-N60-H	10000	24	60	6	<1.0	<50
10C24-P60-Z11	10000	24	60	6	<1.0	<50
10C24-N60-Z11	10000	24	60	6	<1.0	<50
10C24-P60-DA	10000	24	60	6	<1.0	<50
10C24-N60-DA	10000	24	60	6	<1.0	<50
10C24-P60-DAR	10000	24	60	6	<1.0	<50
10C24-N60-DAR	10000	24	60	6	<1.0	<50

10C24-x125	10000	24	125	12.5	<1.0	<50
10C24-P125-I5	10000	24	125	12.5	<1.0	<50
10C24-N125-I5	10000	24	125	12.5	<1.0	<50
10C24-P125-I10	10000	24	125	12.5	<1.0	<50
10C24-N125-I10	10000	24	125	12.5	<1.0	<50
10C24-P125-AD	10000	24	125	12.5	<1.0	<50
10C24-N125-AD	10000	24	125	12.5	<1.0	<50
10C24-P125-AQ	10000	24	125	12.5	<1.0	<50
10C24-N125-AQ	10000	24	125	12.5	<1.0	<50
10C24-P125-H	10000	24	125	12.5	<1.0	<50
10C24-N125-H	10000	24	125	12.5	<1.0	<50
10C24-P125-Z11	10000	24	125	12.5	<1.0	<50
10C24-N125-Z11	10000	24	125	12.5	<1.0	<50
10C24-P125-DA	10000	24	125	12.5	<1.0	<50
10C24-N125-DA	10000	24	125	12.5	<1.0	<50
10C24-P125-DAR	10000	24	125	12.5	<1.0	<50
10C24-N125-DAR	10000	24	125	12.5	<1.0	<50

10C24-x250	10000	24	250	25	<1.0	<50
10C24-P250-I5	10000	24	250	25	<1.0	<50
10C24-N250-I5	10000	24	250	25	<1.0	<50
10C24-P250-I10	10000	24	250	25	<1.0	<50
10C24-N250-I10	10000	24	250	25	<1.0	<50
10C24-P250-AD	10000	24	250	25	<1.0	<50
10C24-N250-AD	10000	24	250	25	<1.0	<50
10C24-P250-AQ	10000	24	250	25	<1.0	<50
10C24-N250-AQ	10000	24	250	25	<1.0	<50
10C24-P250-H	10000	24	250	25	<1.0	<50
10C24-N250-H	10000	24	250	25	<1.0	<50
10C24-P250-Z11	10000	24	250	25	<1.0	<50
10C24-N250-Z11	10000	24	250	25	<1.0	<50
10C24-P250-DA	10000	24	250	25	<1.0	<50
10C24-N250-DA	10000	24	250	25	<1.0	<50
10C24-P250-DAR	10000	24	250	25	<1.0	<50
10C24-N250-DAR	10000	24	250	25	<1.0	<50

12C24-x60	12000	24	60	5	<1.0	<50
12C24-P60-I5	12000	24	60	5	<1.0	<50
12C24-N60-I5	12000	24	60	5	<1.0	<50
12C24-P60-I10	12000	24	60	5	<1.0	<50
12C24-N60-I10	12000	24	60	5	<1.0	<50
12C24-P60-AD	12000	24	60	5	<1.0	<50
12C24-N60-AD	12000	24	60	5	<1.0	<50
12C24-P60-AQ	12000	24	60	5	<1.0	<50
12C24-N60-AQ	12000	24	60	5	<1.0	<50
12C24-P60-H	12000	24	60	5	<1.0	<50
12C24-N60-H	12000	24	60	5	<1.0	<50
12C24-P60-Z11	12000	24	60	5	<1.0	<50
12C24-N60-Z11	12000	24	60	5	<1.0	<50
12C24-P60-DA	12000	24	60	5	<1.0	<50
12C24-N60-DA	12000	24	60	5	<1.0	<50
12C24-P60-DAR	12000	24	60	5	<1.0	<50
12C24-N60-DAR	12000	24	60	5	<1.0	<50

12C24-x125	12000	24	125	10.5	<1.0	<50
12C24-P125-I5	12000	24	125	10.5	<1.0	<50
12C24-N125-I5	12000	24	125	10.5	<1.0	<50
12C24-P125-I10	12000	24	125	10.5	<1.0	<50
12C24-N125-I10	12000	24	125	10.5	<1.0	<50
12C24-P125-AD	12000	24	125	10.5	<1.0	<50
12C24-N125-AD	12000	24	125	10.5	<1.0	<50
12C24-P125-AQ	12000	24	125	10.5	<1.0	<50
12C24-N125-AQ	12000	24	125	10.5	<1.0	<50
12C24-P125-H	12000	24	125	10.5	<1.0	<50
12C24-N125-H	12000	24	125	10.5	<1.0	<50
12C24-P125-Z11	12000	24	125	10.5	<1.0	<50
12C24-N125-Z11	12000	24	125	10.5	<1.0	<50
12C24-P125-DA	12000	24	125	10.5	<1.0	<50
12C24-N125-DA	12000	24	125	10.5	<1.0	<50
12C24-P125-DAR	12000	24	125	10.5	<1.0	<50
12C24-N125-DAR	12000	24	125	10.5	<1.0	<50

12C24-x250	12000	24	250	20.8	<1.0	<50
12C24-P250-I5	12000	24	250	20.8	<1.0	<50
12C24-N250-I5	12000	24	250	20.8	<1.0	<50
12C24-P250-I10	12000	24	250	20.8	<1.0	<50
12C24-N250-I10	12000	24	250	20.8	<1.0	<50
12C24-P250-AD	12000	24	250	20.8	<1.0	<50
12C24-N250-AD	12000	24	250	20.8	<1.0	<50
12C24-P250-AQ	12000	24	250	20.8	<1.0	<50
12C24-N250-AQ	12000	24	250	20.8	<1.0	<50
12C24-P250-H	12000	24	250	20.8	<1.0	<50
12C24-N250-H	12000	24	250	20.8	<1.0	<50
12C24-P250-Z11	12000	24	250	20.8	<1.0	<50
12C24-N250-Z11	12000	24	250	20.8	<1.0	<50
12C24-P250-DA	12000	24	250	20.8	<1.0	<50
12C24-N250-DA	12000	24	250	20.8	<1.0	<50
12C24-P250-DAR	12000	24	250	20.8	<1.0	<50
12C24-N250-DAR	12000	24	250	20.8	<1.0	<50

15C24-x60	15000	24	60	4	<1.0	<50
15C24-P60-I5	15000	24	60	4	<1.0	<50
15C24-N60-I5	15000	24	60	4	<1.0	<50
15C24-P60-I10	15000	24	60	4	<1.0	<50
15C24-N60-I10	15000	24	60	4	<1.0	<50
15C24-P60-AD	15000	24	60	4	<1.0	<50
15C24-N60-AD	15000	24	60	4	<1.0	<50
15C24-P60-AQ	15000	24	60	4	<1.0	<50
15C24-N60-AQ	15000	24	60	4	<1.0	<50
15C24-P60-H	15000	24	60	4	<1.0	<50
15C24-N60-H	15000	24	60	4	<1.0	<50
15C24-P60-Z11	15000	24	60	4	<1.0	<50
15C24-N60-Z11	15000	24	60	4	<1.0	<50
15C24-P60-DA	15000	24	60	4	<1.0	<50
15C24-N60-DA	15000	24	60	4	<1.0	<50
15C24-P60-DAR	15000	24	60	4	<1.0	<50
15C24-N60-DAR	15000	24	60	4	<1.0	<50

15C24-x125	15000	24	125	8.3	<1.0	<50
15C24-P125-I5	15000	24	125	8.3	<1.0	<50
15C24-N125-I5	15000	24	125	8.3	<1.0	<50
15C24-P125-I10	15000	24	125	8.3	<1.0	<50
15C24-N125-I10	15000	24	125	8.3	<1.0	<50
15C24-P125-AD	15000	24	125	8.3	<1.0	<50
15C24-N125-AD	15000	24	125	8.3	<1.0	<50
15C24-P125-AQ	15000	24	125	8.3	<1.0	<50
15C24-N125-AQ	15000	24	125	8.3	<1.0	<50
15C24-P125-H	15000	24	125	8.3	<1.0	<50
15C24-N125-H	15000	24	125	8.3	<1.0	<50
15C24-P125-Z11	15000	24	125	8.3	<1.0	<50
15C24-N125-Z11	15000	24	125	8.3	<1.0	<50
15C24-P125-DA	15000	24	125	8.3	<1.0	<50
15C24-N125-DA	15000	24	125	8.3	<1.0	<50
15C24-P125-DAR	15000	24	125	8.3	<1.0	<50
15C24-N125-DAR	15000	24	125	8.3	<1.0	<50

15C24-x250	15000	24	250	16.7	<1.0	<50
15C24-P250-I5	15000	24	250	16.7	<1.0	<50
15C24-N250-I5	15000	24	250	16.7	<1.0	<50
15C24-P250-I10	15000	24	250	16.7	<1.0	<50
15C24-N250-I10	15000	24	250	16.7	<1.0	<50
15C24-P250-AD	15000	24	250	16.7	<1.0	<50
15C24-N250-AD	15000	24	250	16.7	<1.0	<50
15C24-P250-AQ	15000	24	250	16.7	<1.0	<50
15C24-N250-AQ	15000	24	250	16.7	<1.0	<50
15C24-P250-H	15000	24	250	16.7	<1.0	<50
15C24-N250-H	15000	24	250	16.7	<1.0	<50
15C24-P250-Z11	15000	24	250	16.7	<1.0	<50
15C24-N250-Z11	15000	24	250	16.7	<1.0	<50
15C24-P250-DA	15000	24	250	16.7	<1.0	<50
15C24-N250-DA	15000	24	250	16.7	<1.0	<50
15C24-P250-DAR	15000	24	250	16.7	<1.0	<50
15C24-N250-DAR	15000	24	250	16.7	<1.0	<50

20C24-x60	20000	24	60	3	<1.0	<50
20C24-P60-I5	20000	24	60	3	<1.0	<50
20C24-N60-I5	20000	24	60	3	<1.0	<50
20C24-P60-I10	20000	24	60	3	<1.0	<50
20C24-N60-I10	20000	24	60	3	<1.0	<50
20C24-P60-AD	20000	24	60	3	<1.0	<50
20C24-N60-AD	20000	24	60	3	<1.0	<50
20C24-P60-AQ	20000	24	60	3	<1.0	<50
20C24-N60-AQ	20000	24	60	3	<1.0	<50
20C24-P60-H	20000	24	60	3	<1.0	<50
20C24-N60-H	20000	24	60	3	<1.0	<50
20C24-P60-Z11	20000	24	60	3	<1.0	<50
20C24-N60-Z11	20000	24	60	3	<1.0	<50
20C24-P60-DA	20000	24	60	3	<1.0	<50
20C24-N60-DA	20000	24	60	3	<1.0	<50
20C24-P60-DAR	20000	24	60	3	<1.0	<50
20C24-N60-DAR	20000	24	60	3	<1.0	<50

20C24-x125	20000	24	125	6.25	<1.0	<50
20C24-P125-I5	20000	24	125	6.25	<1.0	<50
20C24-N125-I5	20000	24	125	6.25	<1.0	<50
20C24-P125-I10	20000	24	125	6.25	<1.0	<50
20C24-N125-I10	20000	24	125	6.25	<1.0	<50
20C24-P125-AD	20000	24	125	6.25	<1.0	<50
20C24-N125-AD	20000	24	125	6.25	<1.0	<50
20C24-P125-AQ	20000	24	125	6.25	<1.0	<50
20C24-N125-AQ	20000	24	125	6.25	<1.0	<50
20C24-P125-H	20000	24	125	6.25	<1.0	<50
20C24-N125-H	20000	24	125	6.25	<1.0	<50
20C24-P125-Z11	20000	24	125	6.25	<1.0	<50
20C24-N125-Z11	20000	24	125	6.25	<1.0	<50
20C24-P125-DA	20000	24	125	6.25	<1.0	<50
20C24-N125-DA	20000	24	125	6.25	<1.0	<50
20C24-P125-DAR	20000	24	125	6.25	<1.0	<50
20C24-N125-DAR	20000	24	125	6.25	<1.0	<50

20C24-x250	20000	24	250	12.5	<1.0	<50
20C24-P250-I5	20000	24	250	12.5	<1.0	<50
20C24-N250-I5	20000	24	250	12.5	<1.0	<50
20C24-P250-I10	20000	24	250	12.5	<1.0	<50
20C24-N250-I10	20000	24	250	12.5	<1.0	<50
20C24-P250-AD	20000	24	250	12.5	<1.0	<50
20C24-N250-AD	20000	24	250	12.5	<1.0	<50
20C24-P250-AQ	20000	24	250	12.5	<1.0	<50
20C24-N250-AQ	20000	24	250	12.5	<1.0	<50
20C24-P250-H	20000	24	250	12.5	<1.0	<50
20C24-N250-H	20000	24	250	12.5	<1.0	<50
20C24-P250-Z11	20000	24	250	12.5	<1.0	<50
20C24-N250-Z11	20000	24	250	12.5	<1.0	<50
20C24-P250-DA	20000	24	250	12.5	<1.0	<50
20C24-N250-DA	20000	24	250	12.5	<1.0	<50
20C24-P250-DAR	20000	24	250	12.5	<1.0	<50
20C24-N250-DAR	20000	24	250	12.5	<1.0	<50

25C24-x60	25000	24	60	2.4	<1.0	<50
25C24-P60-I5	25000	24	60	2.4	<1.0	<50
25C24-N60-I5	25000	24	60	2.4	<1.0	<50
25C24-P60-I10	25000	24	60	2.4	<1.0	<50
25C24-N60-I10	25000	24	60	2.4	<1.0	<50
25C24-P60-AD	25000	24	60	2.4	<1.0	<50
25C24-N60-AD	25000	24	60	2.4	<1.0	<50
25C24-P60-AQ	25000	24	60	2.4	<1.0	<50
25C24-N60-AQ	25000	24	60	2.4	<1.0	<50
25C24-P60-H	25000	24	60	2.4	<1.0	<50
25C24-N60-H	25000	24	60	2.4	<1.0	<50
25C24-P60-Z11	25000	24	60	2.4	<1.0	<50
25C24-N60-Z11	25000	24	60	2.4	<1.0	<50
25C24-P60-DA	25000	24	60	2.4	<1.0	<50
25C24-N60-DA	25000	24	60	2.4	<1.0	<50
25C24-P60-DAR	25000	24	60	2.4	<1.0	<50
25C24-N60-DAR	25000	24	60	2.4	<1.0	<50

25C24-x125	25000	24	125	5	<1.0	<50
25C24-P125-I5	25000	24	125	5	<1.0	<50
25C24-N125-I5	25000	24	125	5	<1.0	<50
25C24-P125-I10	25000	24	125	5	<1.0	<50
25C24-N125-I10	25000	24	125	5	<1.0	<50
25C24-P125-AD	25000	24	125	5	<1.0	<50
25C24-N125-AD	25000	24	125	5	<1.0	<50
25C24-P125-AQ	25000	24	125	5	<1.0	<50
25C24-N125-AQ	25000	24	125	5	<1.0	<50
25C24-P125-H	25000	24	125	5	<1.0	<50
25C24-N125-H	25000	24	125	5	<1.0	<50
25C24-P125-Z11	25000	24	125	5	<1.0	<50
25C24-N125-Z11	25000	24	125	5	<1.0	<50
25C24-P125-DA	25000	24	125	5	<1.0	<50
25C24-N125-DA	25000	24	125	5	<1.0	<50
25C24-P125-DAR	25000	24	125	5	<1.0	<50
25C24-N125-DAR	25000	24	125	5	<1.0	<50

25C24-x250	25000	24	250	10	<1.0	<50
25C24-P250-I5	25000	24	250	10	<1.0	<50
25C24-N250-I5	25000	24	250	10	<1.0	<50
25C24-P250-I10	25000	24	250	10	<1.0	<50
25C24-N250-I10	25000	24	250	10	<1.0	<50
25C24-P250-AD	25000	24	250	10	<1.0	<50
25C24-N250-AD	25000	24	250	10	<1.0	<50
25C24-P250-AQ	25000	24	250	10	<1.0	<50
25C24-N250-AQ	25000	24	250	10	<1.0	<50
25C24-P250-H	25000	24	250	10	<1.0	<50
25C24-N250-H	25000	24	250	10	<1.0	<50
25C24-P250-Z11	25000	24	250	10	<1.0	<50
25C24-N250-Z11	25000	24	250	10	<1.0	<50
25C24-P250-DA	25000	24	250	10	<1.0	<50
25C24-N250-DA	25000	24	250	10	<1.0	<50
25C24-P250-DAR	25000	24	250	10	<1.0	<50
25C24-N250-DAR	25000	24	250	10	<1.0	<50

30C24-x60	30000	24	60	2	<1.0	<50
30C24-P60-I5	30000	24	60	2	<1.0	<50
30C24-N60-I5	30000	24	60	2	<1.0	<50
30C24-P60-I10	30000	24	60	2	<1.0	<50
30C24-N60-I10	30000	24	60	2	<1.0	<50
30C24-P60-AD	30000	24	60	2	<1.0	<50
30C24-N60-AD	30000	24	60	2	<1.0	<50
30C24-P60-AQ	30000	24	60	2	<1.0	<50
30C24-N60-AQ	30000	24	60	2	<1.0	<50
30C24-P60-H	30000	24	60	2	<1.0	<50
30C24-N60-H	30000	24	60	2	<1.0	<50
30C24-P60-Z11	30000	24	60	2	<1.0	<50
30C24-N60-Z11	30000	24	60	2	<1.0	<50
30C24-P60-DA	30000	24	60	2	<1.0	<50
30C24-N60-DA	30000	24	60	2	<1.0	<50
30C24-P60-DAR	30000	24	60	2	<1.0	<50
30C24-N60-DAR	30000	24	60	2	<1.0	<50

30C24-x125	30000	24	125	4.17	<1.0	<50
30C24-P125-I5	30000	24	125	4.17	<1.0	<50
30C24-N125-I5	30000	24	125	4.17	<1.0	<50
30C24-P125-I10	30000	24	125	4.17	<1.0	<50
30C24-N125-I10	30000	24	125	4.17	<1.0	<50
30C24-P125-AD	30000	24	125	4.17	<1.0	<50
30C24-N125-AD	30000	24	125	4.17	<1.0	<50
30C24-P125-AQ	30000	24	125	4.17	<1.0	<50
30C24-N125-AQ	30000	24	125	4.17	<1.0	<50
30C24-P125-H	30000	24	125	4.17	<1.0	<50
30C24-N125-H	30000	24	125	4.17	<1.0	<50
30C24-P125-Z11	30000	24	125	4.17	<1.0	<50
30C24-N125-Z11	30000	24	125	4.17	<1.0	<50
30C24-P125-DA	30000	24	125	4.17	<1.0	<50
30C24-N125-DA	30000	24	125	4.17	<1.0	<50
30C24-P125-DAR	30000	24	125	4.17	<1.0	<50
30C24-N125-DAR	30000	24	125	4.17	<1.0	<50

30C24-x250	30000	24	250	8.33	<1.0	<50
30C24-P250-I5	30000	24	250	8.33	<1.0	<50
30C24-N250-I5	30000	24	250	8.33	<1.0	<50
30C24-P250-I10	30000	24	250	8.33	<1.0	<50
30C24-N250-I10	30000	24	250	8.33	<1.0	<50
30C24-P250-AD	30000	24	250	8.33	<1.0	<50
30C24-N250-AD	30000	24	250	8.33	<1.0	<50
30C24-P250-AQ	30000	24	250	8.33	<1.0	<50
30C24-N250-AQ	30000	24	250	8.33	<1.0	<50
30C24-P250-H	30000	24	250	8.33	<1.0	<50
30C24-N250-H	30000	24	250	8.33	<1.0	<50
30C24-P250-Z11	30000	24	250	8.33	<1.0	<50
30C24-N250-Z11	30000	24	250	8.33	<1.0	<50
30C24-P250-DA	30000	24	250	8.33	<1.0	<50
30C24-N250-DA	30000	24	250	8.33	<1.0	<50
30C24-P250-DAR	30000	24	250	8.33	<1.0	<50
30C24-N250-DAR	30000	24	250	8.33	<1.0	<50

40C24-x60	40000	24	60	1.5	<1.0	<50
40C24-P60-I5	40000	24	60	1.5	<1.0	<50
40C24-N60-I5	40000	24	60	1.5	<1.0	<50
40C24-P60-I10	40000	24	60	1.5	<1.0	<50
40C24-N60-I10	40000	24	60	1.5	<1.0	<50
40C24-P60-AD	40000	24	60	1.5	<1.0	<50
40C24-N60-AD	40000	24	60	1.5	<1.0	<50
40C24-P60-AQ	40000	24	60	1.5	<1.0	<50
40C24-N60-AQ	40000	24	60	1.5	<1.0	<50
40C24-P60-H	40000	24	60	1.5	<1.0	<50
40C24-N60-H	40000	24	60	1.5	<1.0	<50
40C24-P60-Z11	40000	24	60	1.5
