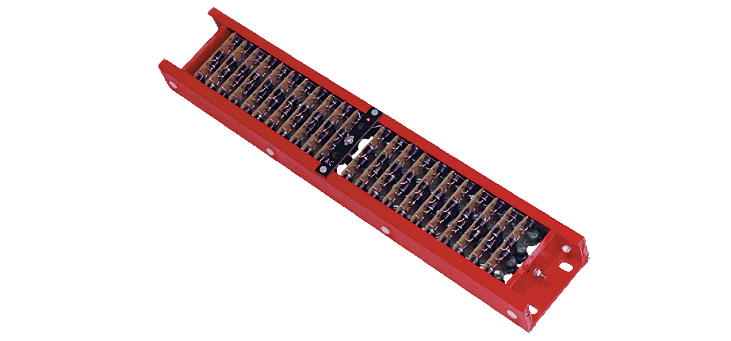

Channel Stack Rectifiers
Advanced diffusion and manufacturing techniques allow us to produce a wide range of rectifier products. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- Large rated voltage range
- MOV compensated, higher spec. and doubler, positive, negative taps available
Products
Data Sheets
Products
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (A) | Surge Current (A) | Reverse Current (µA) |
| Doubler Subseries | |||||
| SD15A09Z0817S | 32000 | 36 | 2.4 | 370 | 100 |
| SD16A14Z0625S | 24000 | 24 | 4 | 1050 | 100 |
| SD17A12Z0817S | 8000 | 8.8 | 12 | 370 | 100 |
| Halfwave Bridges | |||||
| SH13A03Z0508S | 56000 | 88 | 1 | 150 | 100 |
| SH13A03Z1320S | 145000 | 208 | 1 | 150 | 100 |
| SH15A09Z2020S | 80000 | 88 | 2.4 | 370 | 100 |
| SH16A14Z0612S | 24000 | 24 | 4 | 1050 | 100 |
| SH18A36Z3434S | 34000 | 38 | 15 | 1050 | 100 |
| SH19B11Z1633S | 16000 | 24 | 33 | 3000 | 100 |
| Single Phase Bridges | |||||
| SB53A03Z0111S | 11000 | 16 | 1 | 150 | 100 |
| SB56A14Z0111S | 4000 | 4.4 | 4 | 1050 | 100 |
| Three Phase Bridges | |||||
| SE53A03Z0223S | 22000 | 32 | 1 | 150 | 100 |
| SE55A09Z0111S | 4000 | 4.4 | 2.4 | 370 | 100 |
| SE58A36Z0323S | 3000 | 3.3 | 15 | 1050 | 100 |
