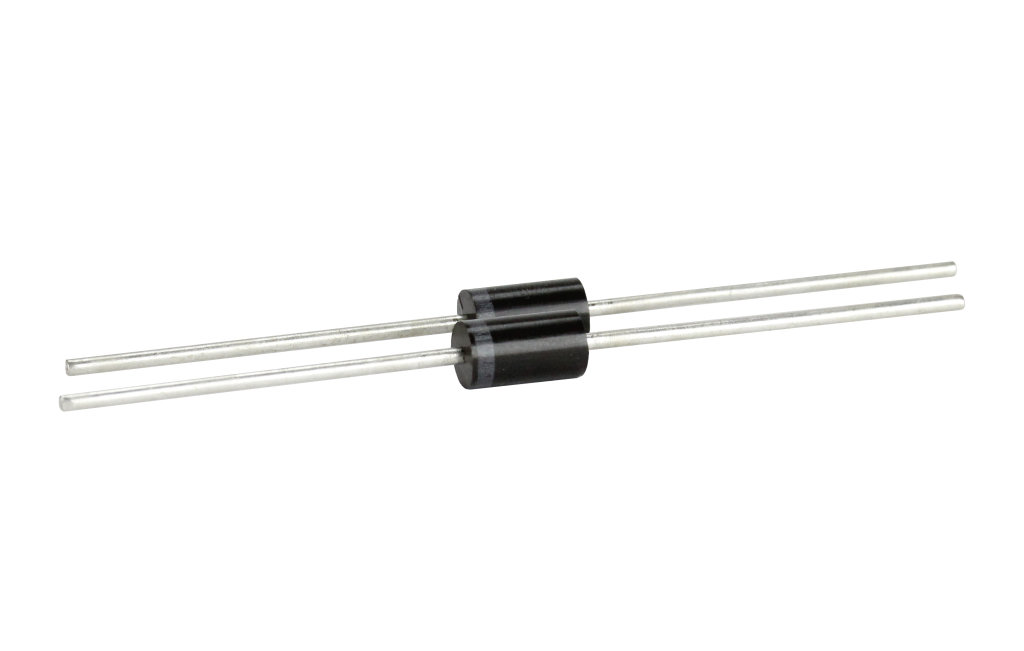

BRXF Series - High Voltage Diodes
The BRxXF Series is an axial-leaded, high voltage diode line that offers a fast reverse recovery of 40nS, a higher forward surge (IFSM) rating of 50 to 80A, and low leakage current. BRxXF units range from 2 to 10kV at 600 to 1500mA. Further, BRxXF diodes are offered in the same package size at the existing BR Series and are compliant to the RoHS directive.
Features:
- Faster Reverse Recovery Than Regular BR Series
- Higher Forward Surge (IFSM) Rating
- Lower Leakage Current
Products
Products
| Part # | Repetitive Peak Reverse Voltage (V) | Forward Voltage Drop (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| BR2XF | 2000 | 2.6 | 1500 | 80 | 40 |  |
| BR3XF | 3000 | 3.1 | 1400 | 80 | 40 | |
| BR4XF | 4000 | 7.6 | 1000 | 70 | 40 | |
| BR5XF | 5000 | 8.3 | 900 | 70 | 40 | |
| BR6XF | 6000 | 9.3 | 800 | 60 | 40 | |
| BR8XF | 8000 | 11.3 | 700 | 60 | 40 | |
| BR10XF | 10000 | 13.9 | 600 | 50 | 40 | |
