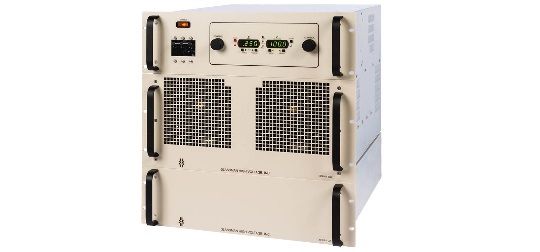

GX Serie - Hochspannungsnetzteil
Die Stromversorgungen der GX-Familie sind hochentwickelte Stromversorgungen von 25 bis 200 kW mit geringer Restwelligkeit und geringem Rauschen. Es handelt sich um luftisolierte, schnell ansprechende Geräte mit enger Regelung.
Typische Anwendungen
- Analytisch
- Forschung/Akademisch
- Prüfgeräte
- Medizinisch-diagnostische und therapeutische Systeme
| Serie | Max. Ausgangsspannung | Max. Ausgangsstrom | Max. Ausgangsleistung | Eingangsspannung | Restwelligkeit Max. |
| GX1X25.0 | 0 – 1 kV | 25 A | 25 kW | Dreiphasig | 0.1% |
| GX1P25.0 | 0 – 1 kV | 25 A | 25 kW | Dreiphasig | 0.1% |
| GX1N25.0 | 0 – 1 kV | 25 A | 25 kW | Dreiphasig | 0.1% |
| GX1R25.0 | 0 – 1 kV | 25 A | 25 kW | Dreiphasig | 0.1% |
| GX1.5X16.5 | 0 – 1.5 kV | 16.5 A | 25 kW | Dreiphasig | 0.1% |
| GX1.5P16.5 | 0 – 1.5 kV | 16.5 A | 25 kW | Dreiphasig | 0.1% |
| GX1.5N16.5 | 0 – 1.5 kV | 16.5 A | 25 kW | Dreiphasig | 0.1% |
| GX1.5R16.5 | 0 – 1.5 kV | 16.5 A | 25 kW | Dreiphasig | 0.1% |
| GX2X12.5 | 0 – 2 kV | 12.5 A | 25 kW | Dreiphasig | 0.1% |
| GX2P12.5 | 0 – 2 kV | 12.5 A | 25 kW | Dreiphasig | 0.1% |
| GX2N12.5 | 0 – 2 kV | 12.5 A | 25 kW | Dreiphasig | 0.1% |
| GX2R12.5 | 0 – 2 kV | 12.5 A | 25 kW | Dreiphasig | 0.1% |
| GX3X8.35 | 0 – 3 kV | 8.35 A | 25 kW | Dreiphasig | 0.1% |
| GX3P8.35 | 0 – 3 kV | 8.35 A | 25 kW | Dreiphasig | 0.1% |
| GX3N8.35 | 0 – 3 kV | 8.35 A | 25 kW | Dreiphasig | 0.1% |
| GX3R8.35 | 0 – 3 kV | 8.35 A | 25 kW | Dreiphasig | 0.1% |
| GX5X5.0 | 0 – 5 kV | 5 A | 25 kW | Dreiphasig | 0.1% |
| GX5P5.0 | 0 – 5 kV | 5 A | 25 kW | Dreiphasig | 0.1% |
| GX5N5.0 | 0 – 5 kV | 5 A | 25 kW | Dreiphasig | 0.1% |
| GX5R5.0 | 0 – 5 kV | 5 A | 25 kW | Dreiphasig | 0.1% |
| GX6X4.15 | 0 – 6 kV | 4.15 A | 25 kW | Dreiphasig | 0.1% |
| GX6P4.15 | 0 – 6 kV | 4.15 A | 25 kW | Dreiphasig | 0.1% |
| GX6N4.15 | 0 – 6 kV | 4.15 A | 25 kW | Dreiphasig | 0.1% |
| GX6R4.15 | 0 – 6 kV | 4.15 A | 25 kW | Dreiphasig | 0.1% |
| GX8X3.15 | 0 – 8 kV | 3.15 A | 25 kW | Dreiphasig | 0.1% |
| GX8P3.15 | 0 – 8 kV | 3.15 A | 25 kW | Dreiphasig | 0.1% |
| GX8N3.15 | 0 – 8 kV | 3.15 A | 25 kW | Dreiphasig | 0.1% |
| GX8R3.15 | 0 – 8 kV | 3.15 A | 25 kW | Dreiphasig | 0.1% |
| GX10X2.5 | 0 – 10 kV | 2.5 A | 25 kW | Dreiphasig | 0.1% |
| GX10P2.5 | 0 – 10 kV | 2.5 A | 25 kW | Dreiphasig | 0.1% |
| GX10N2.5 | 0 – 10 kV | 2.5 A | 25 kW | Dreiphasig | 0.1% |
| GX10R2.5 | 0 – 10 kV | 2.5 A | 25 kW | Dreiphasig | 0.1% |
| GX12X2.10 | 0 – 12 kV | 2.1 A | 25 kW | Dreiphasig | 0.1% |
| GX12P2.10 | 0 – 12 kV | 2.1 A | 25 kW | Dreiphasig | 0.1% |
| GX12N2.10 | 0 – 12 kV | 2.1 A | 25 kW | Dreiphasig | 0.1% |
| GX12R2.10 | 0 – 12 kV | 2.1 A | 25 kW | Dreiphasig | 0.1% |
| GX15X1.65 | 0 – 15 kV | 1.65 A | 25 kW | Dreiphasig | 0.1% |
| GX15P1.65 | 0 – 15 kV | 1.65 A | 25 kW | Dreiphasig | 0.1% |
| GX15N1.65 | 0 – 15 kV | 1.65 A | 25 kW | Dreiphasig | 0.1% |
| GX15R1.65 | 0 – 15 kV | 1.65 A | 25 kW | Dreiphasig | 0.1% |
| GX20X1.25 | 0 – 20 kV | 1.25 A | 25 kW | Dreiphasig | 0.1% |
| GX20P1.25 | 0 – 20 kV | 1.25 A | 25 kW | Dreiphasig | 0.1% |
| GX20N1.25 | 0 – 20 kV | 1.25 A | 25 kW | Dreiphasig | 0.1% |
| GX20R1.25 | 0 – 20 kV | 1.25 A | 25 kW | Dreiphasig | 0.1% |
| GX25X1.0 | 0 – 25 kV | 1 A | 25 kW | Dreiphasig | 0.1% |
| GX25P1.0 | 0 – 25 kV | 1 A | 25 kW | Dreiphasig | 0.1% |
| GX25N1.0 | 0 – 25 kV | 1 A | 25 kW | Dreiphasig | 0.1% |
| GX25R1.0 | 0 – 25 kV | 1 A | 25 kW | Dreiphasig | 0.1% |
| GX30X835 | 0 – 30 kV | 835 mA | 25 kW | Dreiphasig | 0.1% |
| GX30P835 | 0 – 30 kV | 835 mA | 25 kW | Dreiphasig | 0.1% |
| GX30N835 | 0 – 30 kV | 835 mA | 25 kW | Dreiphasig | 0.1% |
| GX30R835 | 0 – 30 kV | 835 mA | 25 kW | Dreiphasig | 0.1% |
| GX40X625 | 0 – 40 kV | 625 mA | 25 kW | Dreiphasig | 0.1% |
| GX40P625 | 0 – 40 kV | 625 mA | 25 kW | Dreiphasig | 0.1% |
| GX40N625 | 0 – 40 kV | 625 mA | 25 kW | Dreiphasig | 0.1% |
| GX40R625 | 0 – 40 kV | 625 mA | 25 kW | Dreiphasig | 0.1% |
| GX50X500 | 0 – 50 kV | 500 mA | 25 kW | Dreiphasig | 0.1% |
| GX50P500 | 0 – 50 kV | 500 mA | 25 kW | Dreiphasig | 0.1% |
| GX50N500 | 0 – 50 kV | 500 mA | 25 kW | Dreiphasig | 0.1% |
| GX50R500 | 0 – 50 kV | 500 mA | 25 kW | Dreiphasig | 0.1% |
| GX60X415 | 0 – 60 kV | 415 mA | 25 kW | Dreiphasig | 0.1% |
| GX60P415 | 0 – 60 kV | 415 mA | 25 kW | Dreiphasig | 0.1% |
| GX60N415 | 0 – 60 kV | 415 mA | 25 kW | Dreiphasig | 0.1% |
| GX60R415 | 0 – 60 kV | 415 mA | 25 kW | Dreiphasig | 0.1% |
| GX70X360 | 0 – 70 kV | 360 mA | 25 kW | Dreiphasig | 0.1% |
| GX70P360 | 0 – 70 kV | 360 mA | 25 kW | Dreiphasig | 0.1% |
| GX70N360 | 0 – 70 kV | 360 mA | 25 kW | Dreiphasig | 0.1% |
| GX70R360 | 0 – 70 kV | 360 mA | 25 kW | Dreiphasig | 0.1% |
| GX80X315 | 0 – 80 kV | 315 mA | 25 kW | Dreiphasig | 0.1% |
| GX80P315 | 0 – 80 kV | 315 mA | 25 kW | Dreiphasig | 0.1% |
| GX80N315 | 0 – 80 kV | 315 mA | 25 kW | Dreiphasig | 0.1% |
| GX80R315 | 0 – 80 kV | 315 mA | 25 kW | Dreiphasig | 0.1% |
| GX100X250 | 0 – 100 kV | 250 mA | 25 kW | Dreiphasig | 0.1% |
| GX100P250 | 0 – 100 kV | 250 mA | 25 kW | Dreiphasig | 0.1% |
| GX100N250 | 0 – 100 kV | 250 mA | 25 kW | Dreiphasig | 0.1% |
| GX100R250 | 0 – 100 kV | 250 mA | 25 kW | Dreiphasig | 0.1% |
